Special-Order 300mA Configuration
This CDB6LESi RCBO is supplied with a project-specific rated residual operating current of 300mA.
The 300mA configuration is the key feature of this SKU. It should be clearly stated in the enquiry, quotation, purchase order and inspection record because the product housing is visually similar to standard 30mA versions.
The complete reference specification is: CDB6LESi / 1P+N / C63 / 230V / 300mA / Type AC / 6kA
Built Around a Project Specification
This product is most suitable when a buyer already has a defined electrical requirement, panel schedule or replacement reference calling for:
- 63A rated current
- C tripping curve
- 1P+N configuration
- 230V operation
- 300mA residual-current sensitivity
- Type AC response
- 6kA breaking capacity
Rather than selecting only by brand or appearance, the product should be matched against the complete technical requirement.
Buyers may provide:
- A model list
- An existing product photo
- A panel schedule
- A single-line diagram
- A complete electrical BOM
JXNUO can use these references to confirm the required configuration with the supply channel.
Combined Circuit Protection
The unit combines:
- Overload protection
- Short-circuit protection
- Residual-current protection

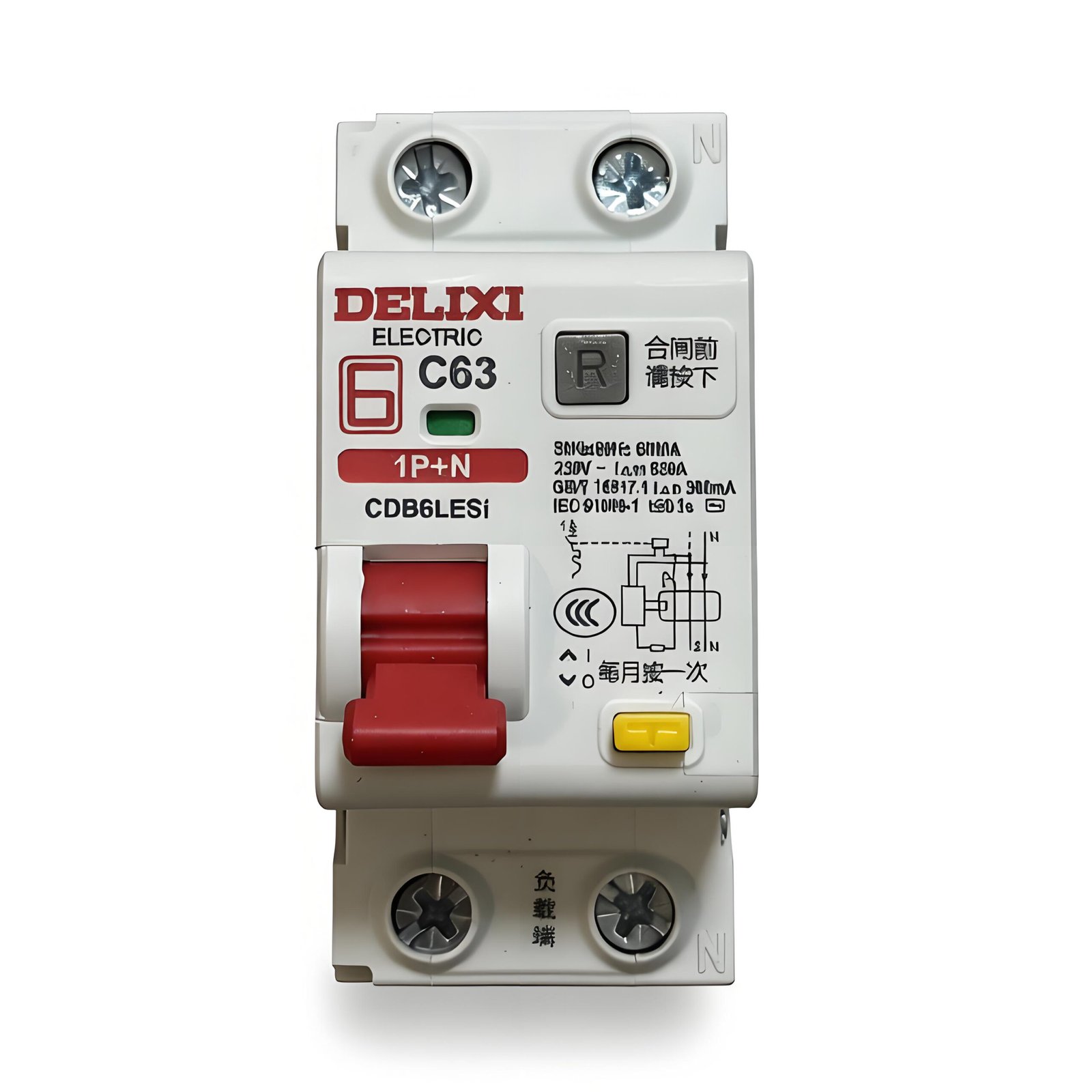

The C63 marking identifies a C-curve breaker with a rated current of 63A. The device also includes a front test button, a residual-trip reset button and contact-status indication for operation and inspection.
Why 300mA Must Be Confirmed Separately
A standard 30mA RCBO and a custom 300mA RCBO may share the same product series, housing design and current rating. The main difference is the printed residual-current value:
- IΔn 30mA
- IΔn 300mA
These specifications should not be treated as interchangeable. For this reason, JXNUO checks the residual-current marking separately during sample confirmation and pre-shipment inspection.
Reference Specification
| Brand | DELIXI ELECTRIC |
|---|---|
| Series | CDB6LESi |
| Product Type | RCBO |
| Supply Type | Special-order configuration |
| Pole Configuration | 1P+N |
| Rated Current | 63A |
| Tripping Curve | C curve |
| Rated Voltage | 230VAC |
| Rated Frequency | 50/60Hz |
| Rated Breaking Capacity | 6kA |
| Rated Residual Operating Current | 300mA |
| Residual-current Type | Type AC |
| Residual Operating Time | ≤0.1s |
| Rated Residual Making and Breaking Capacity | 630A |
| Protection Functions | Overload, short circuit and residual current |
| Front Controls | Operating handle, test button and reset button |
| Installation | DIN rail mounting |
The product-specific ratings above are based on the photographed reference unit. The 300mA requirement should be reconfirmed in the quotation, approved sample and order documents before production or shipment.
Custom Specification Confirmation
For project-specific RCBO orders, JXNUO can coordinate confirmation of:
- Residual-current value
- Rated current
- Pole configuration
- Tripping curve
- Voltage and frequency
- Breaking capacity
- Residual-current type
- Product marking
- Packaging marking
- Required certificates and documentation
The approved specification can then be used as the reference for supplier confirmation and batch inspection.

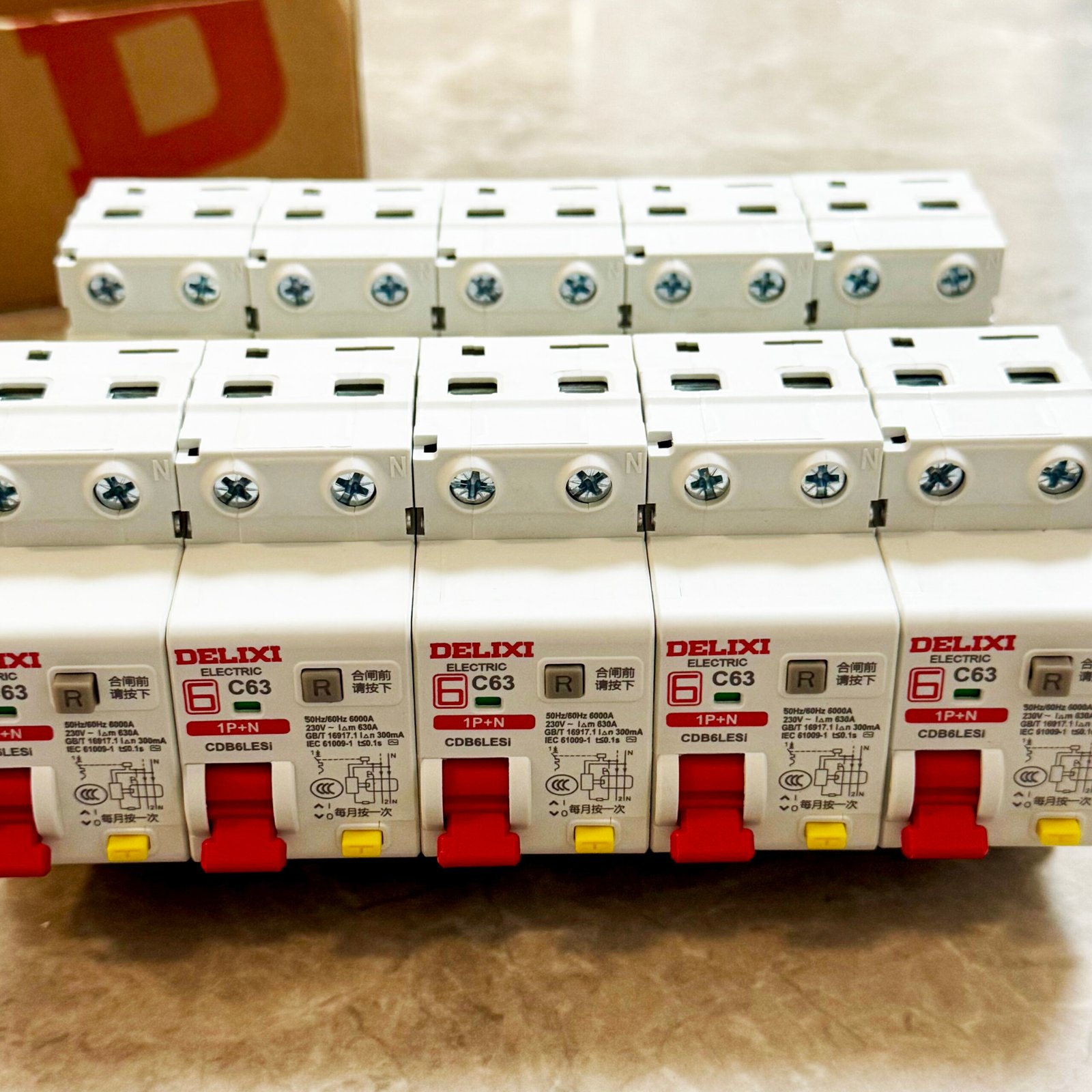

Batch Checks for the 300mA Version
Inspection may focus on:
- CDB6LESi series marking
- C63 current marking
- 1P+N configuration
- 230V voltage marking
- IΔn 300mA marking
- Type AC symbol
- 6kA breaking-capacity marking
- Test and reset controls

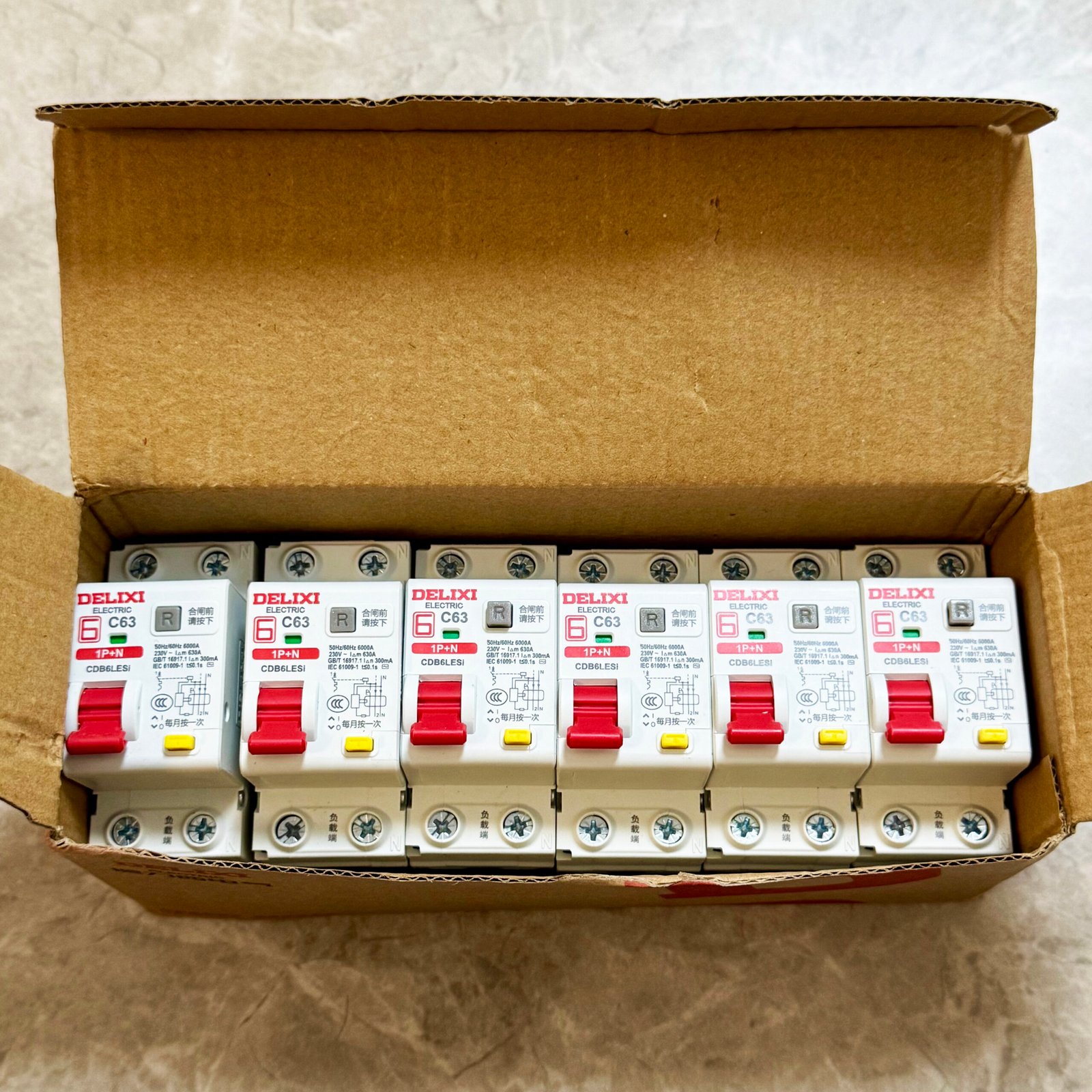

- Product and carton consistency
- Separation from standard 30mA versions
- Quantity and batch consistency
This reduces the risk of a standard 30mA unit being supplied against a 300mA project requirement.
Custom and Mixed-Model Orders
JXNUO can coordinate orders containing both standard and project-specific circuit-breaker configurations, including:
- 30mA and 300mA RCBOs
- 16A, 40A and 63A ratings
- 1P, 1P+N and 3P configurations
- MCBs and RCBOs
- Other DELIXI low-voltage products
Each item can be separated according to the buyer’s BOM, model list and quantity requirement before consolidation and shipment.
Need a Custom RCBO Configuration?
Send us the required model, rated current, pole configuration, residual-current value and quantity.
For non-standard or project-specific requirements, please include a product photo, panel schedule or technical specification for confirmation.
