A More Architectural Approach to Pathway Lighting
Not every outdoor bollard needs to look like a conventional lantern.

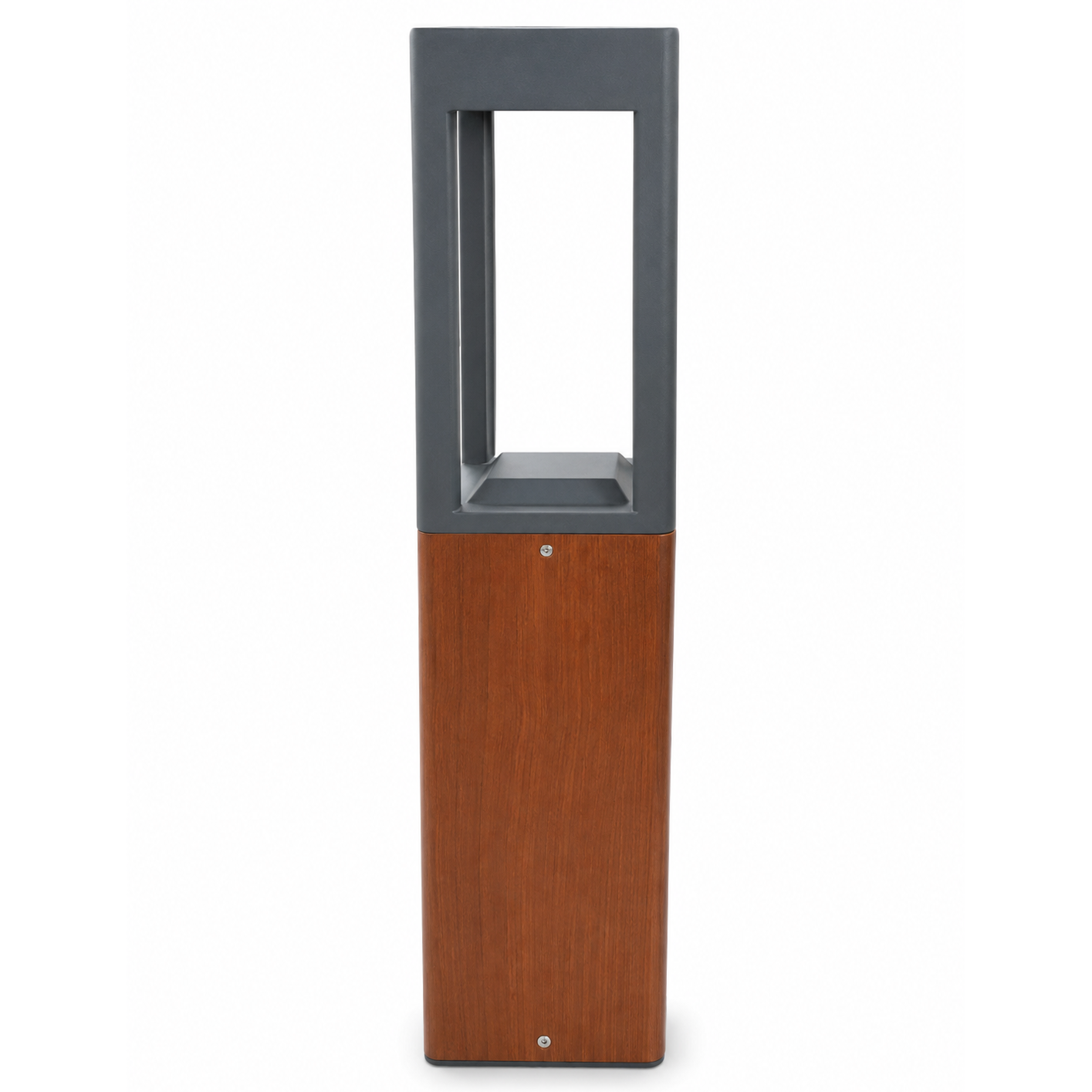

This model uses an open rectangular lighting head above a slim wood-effect body, creating a cleaner and more architectural appearance. The open centre keeps the fixture visually light, while the strong geometric outline helps it work alongside modern buildings, straight pathways and structured landscape designs. The result is a bollard light that functions as part of the landscape during the day, rather than appearing only as a piece of electrical equipment.
This model is presented as a sourcing reference. Final dimensions, electrical components, finish and project documentation should be confirmed according to the intended application.
Designed for Modern Outdoor Spaces
The dark grey upper frame provides a clear contrast with the warmer wood-effect lower housing. This combination can fit particularly well in projects using:
- Contemporary architecture
- Timber or wood-look exterior details
- Concrete and stone paving
- Linear garden layouts
- Dark metal doors, windows or railings
- Modern commercial and residential entrances
Compared with a fully enclosed lamp head, the open-frame structure gives the fixture a less bulky appearance and helps maintain clear sight lines along a pathway.
Where This Model Fits Best
This bollard light can be considered for:
- Modern residential pathways
- Apartment and villa entrances
- Hotel and resort grounds
- Commercial walkways
- Office and business parks
- Courtyards and landscaped terraces
- Parks and pedestrian areas
- Building perimeter lighting
Its 600 mm reference height makes it suitable for low-level guidance and landscape lighting. It is not intended to replace high-output street or roadway lighting.
Light for Orientation and Landscape Definition
The reference specification uses a 10W LED source with 4000K neutral white light and a listed distribution of 150° × 360°. This type of output can be used to help define pedestrian routes, entrances and landscape boundaries without introducing a large or visually dominant fixture. Actual fixture spacing should be determined according to the required illumination level, surrounding surfaces and project lighting plan. For larger projects, buyers may also request photometric or IES data before final selection.
Reference Specification
| Model | JXN-LGL-AL02 |
|---|---|
| Rated Power | 10W |
| Input Voltage | 100–277VAC |
| LED Source | Philips LED |
| Luminous Efficacy | 130 lm/W |
| Colour Temperature | 4000K |
| Light Distribution | 150° × 360° |
| Guard Level | IP65 |
| Housing Material | Aluminium |
| Surface Finish | Fine sandblasting and wood-effect paint |
| Product Dimensions | Ø135 × H600 mm |
| Warranty | 5 years |
The stated lifetime refers to the LED source under the relevant operating conditions and is separate from the five-year product warranty.
Details That Can Be Matched to the Project
Depending on the project, buyers may discuss:
- Colour temperature
- Grey housing colour
- Wood pattern and finish tone
- LED and driver configuration
- Input voltage
- Mounting base and anchor bolts
- Surge protection
- Sensor or dimming requirements
- Product labels and installation instructions
- Logo and carton design
- Required testing and certification
For the first discussion, a project image, approximate quantity and installation environment are normally sufficient.
What to Compare Beyond the Appearance
The rectangular outline is easy to reproduce in a catalogue image, but the quality of the finished product depends on details that may not be visible from the outside. For project purchasing, buyers should compare:
- Alignment and finish of the upper frame
- Aluminium thickness and structural rigidity
- Surface consistency around corners and edges
- Quality of the wood-effect coating
- Waterproof sealing around the light chamber
- LED and driver configuration
- Heat dissipation
- Base plate and installation structure
- Colour consistency across a production batch
These points become particularly important when multiple fixtures are installed in a straight line, where small differences in shape, colour or alignment become more visible.
How JXNUO Supports Buyers
JXNUO helps buyers source and compare outdoor lighting products according to the actual project rather than selecting only by wattage and catalogue appearance. Support may include:
- Supplier search and preliminary screening
- Specification and quotation comparison
- Housing, LED and driver clarification
- Finish and colour confirmation
- Sample coordination
- Mounting-detail checking
- Logo and packaging customisation
- Test-document collection
- Production follow-up
- Pre-shipment inspection
- Shipping coordination
The objective is to make the selected design clearer and more workable before it moves into production.
Considering This Style for a Project?
Send us the application, expected quantity and any available reference photos or drawings. JXNUO can help compare similar open-frame bollard lights, finishes and technical configurations from China.
Discuss This Bollard Light Design or View More Outdoor Lighting
