All-in-One Solar Courtyard Light with Wide Beam & Long Runtime

Introducing the Integrated Solar Courtyard Light

This integrated sol·e lighting solution tailored for residential and commercial outdoor spaces. With high-efficiency SMD 3030 LEDs, a durable LiFePO4 battery, and a monocrystalline solar panel, it delivers dependable brightness with zero wiring or maintenance.

Whether you’re illuminating a garden, lighting up a community path, or upgrading the exterior of a building, this solar light ensures clear visibility, energy independence, and lasting performance—day after day, season after season.

Key Features

• High-Lumen LED Lighting — 150 pcs SMD 3030 LEDs offer a luminous output of up to 2742 lumens at 6000K, and 2568 lumens at 3000K, ideal for enhancing visibility and ambiance in outdoor areas.
• Reliable Energy Storage — equipped with a 45Ah LiFePO4 lithium battery, this light operates continuously for up to 3~5 rainy days; the battery supports 2000+ cycles and ensures long-term reliability without frequent replacements.

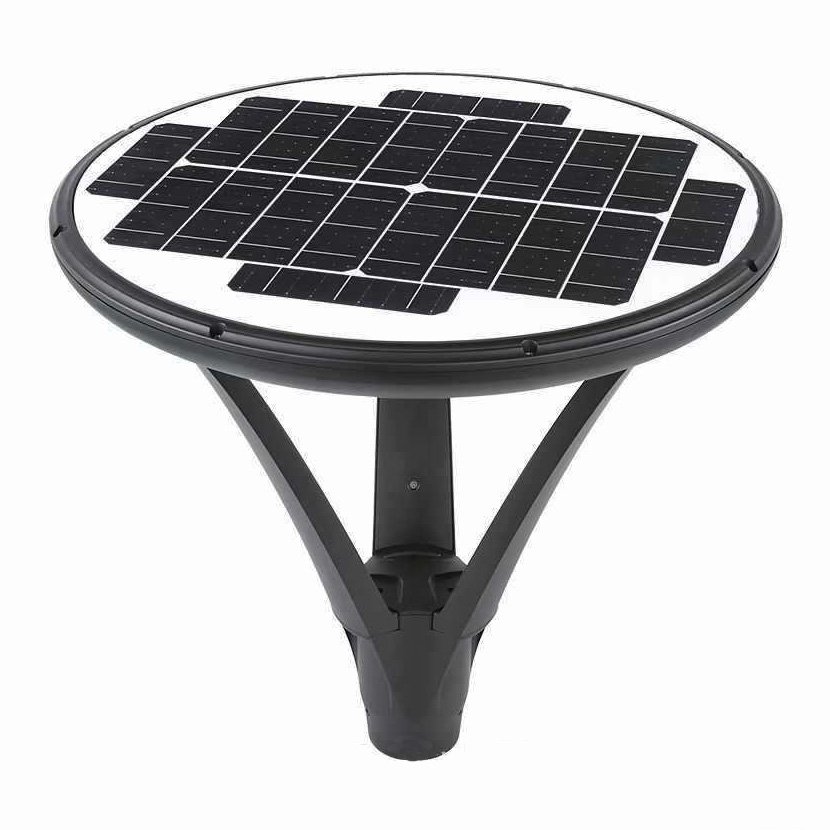

• Fast Charging Solar Panel — the 33W monocrystalline panel charges efficiently in 4~6 hours of sunlight, even under cloudy conditions; the panel’s high conversion rate helps store enough energy for extended use.
• Auto Light Sensor —  built-in dusk-to-dawn control allows the light to turn on automatically at night and charge during the day; no remote or manual switch required after initial activation.
• Wide-Angle Illumination — 180° beam angle paired with a high-transmittance PC lens ensures broad, uniform light coverage, ideal for paths, entryways, and open spaces.
• Durable All-Weather Housing — constructed from die-cast aluminum and rated IP65, the lamp is built to withstand rain, heat, dust, and cold; designed for long-term outdoor exposure.

Technical Specifications

→ Basic Information
Model	JXN-SGL03-33W
LED Light Source	SMD 3030*150pcs

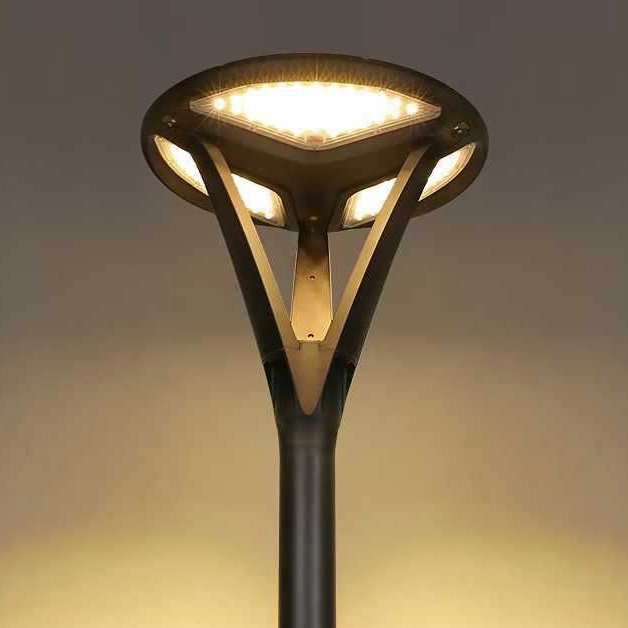

Luminous Efficacy	3000K - 2568.75lm

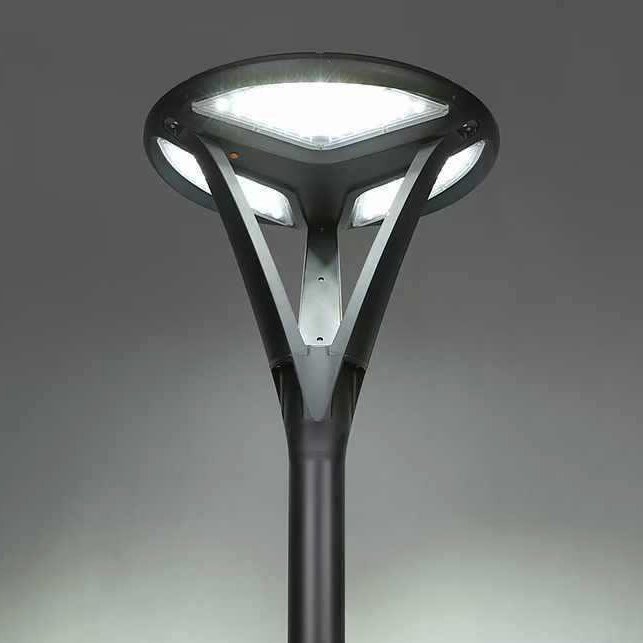

	6000K - 2742.43lm
Color Temperature	3000K / 6000K
Beam Angle	180°
→ Power & Control System
Battery	LifePO4 lithium, 3.2V 45Ah
Solar Panel	Monocrystalline, 33W 5V
Solar Charging Time	4~6 hours by bright sunlight
Lighting Time	3~5 rainy days
Light Mode	Light sensor
→ Structure & Installation
Installation Height	3~5 meters

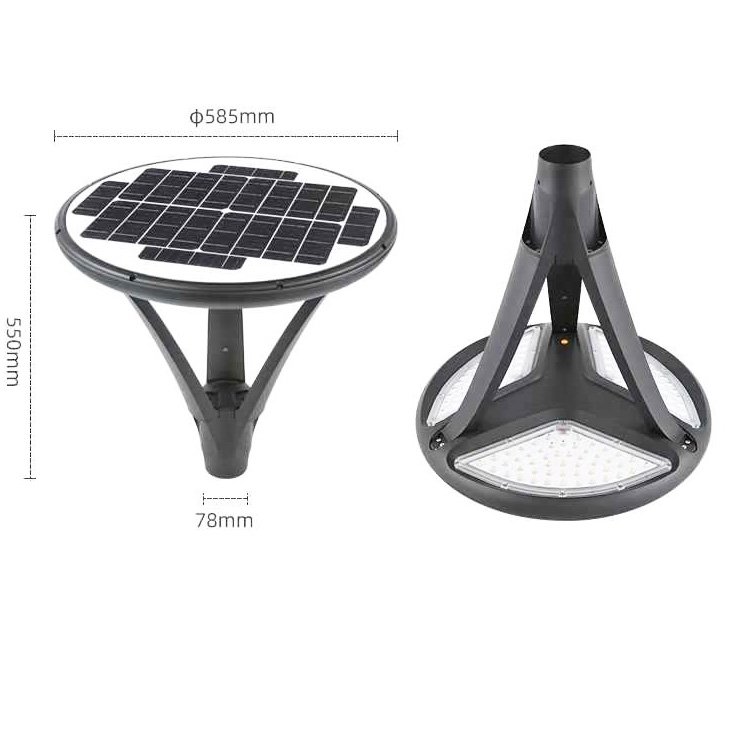

Dimension	Φ585*H550mm
Housing Material	Die-cast aluminum
→ Environmental Performance
Guard Level	IP65 waterproof
Working Temperature	-20℃ ~ +50℃
Warranty	3 years

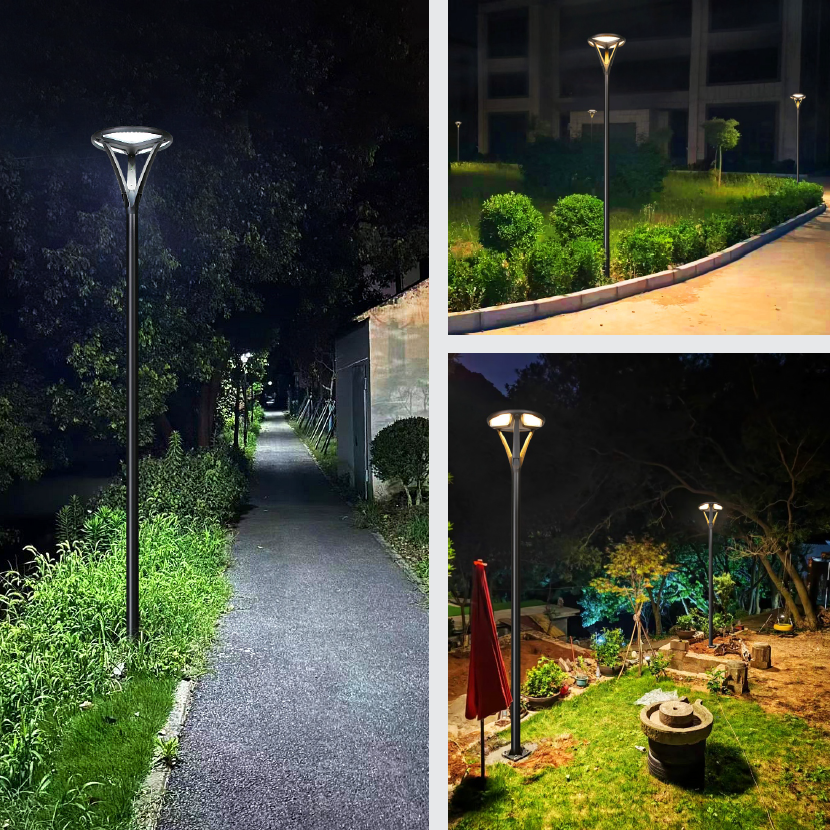

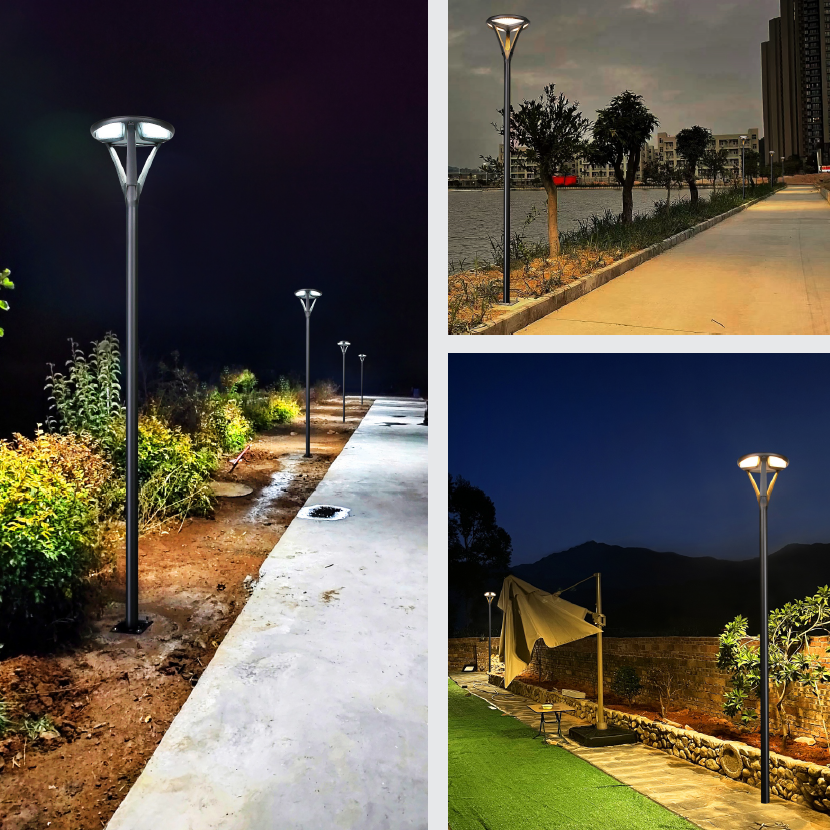

Applications

This solar courtyard light is suitable for:

• residential courtyards and front yards
• community walkways and sidewalks
• garden paths and landscape areas
• outdoor walls, fences, and gates
• parking areas and entrance zones
• commercial building exteriors

Its clean design, neutral color temperature, and reliable performance make it a great fit for both decorative and functional lighting needs.

How It Works

1. After installation, press the waterproof button once to activate.
2. The light will stay off during the day and automatically turn on at night.
3. The solar panel charges the battery whenever exposed to sunlight.
4. Lighting continues automatically, even during rainy or cloudy days.

Note: The lamp only turns on in a dark environment when the solar panel detects no ambient light.

What’s Included

• Solar courtyard lamp (pre-assembled)
• Mounting arm and lamp holder
• Screws and user manual

Installation is quick and straightforward. No wiring or trenching required.

Get in Touch for a Custom Quote

Interested in bringing clean, off-grid lighting to your project or product line?
Contact us today to request a quote or more product details.
