Product Overview

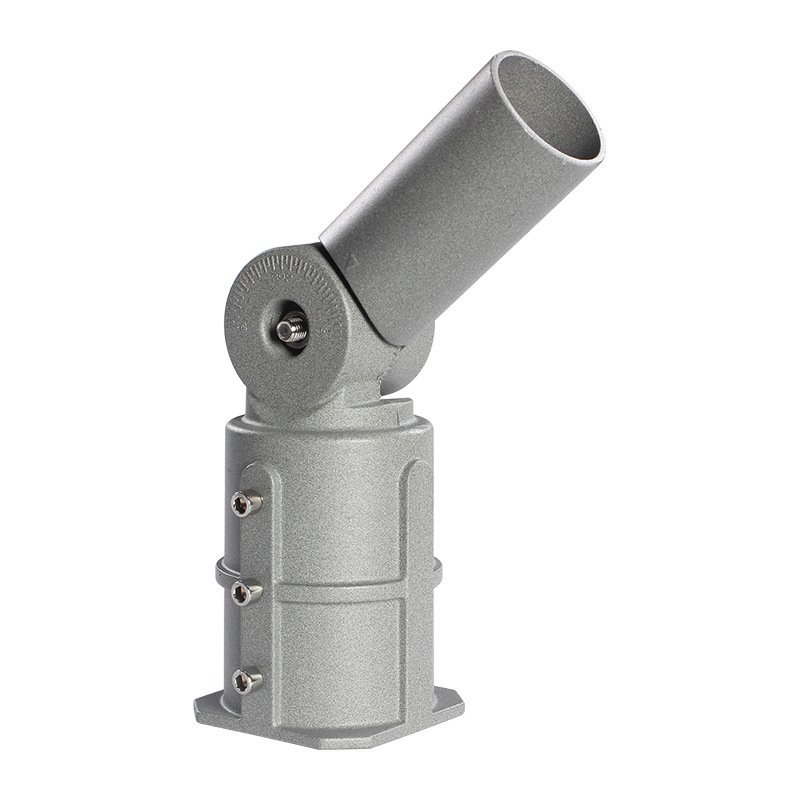

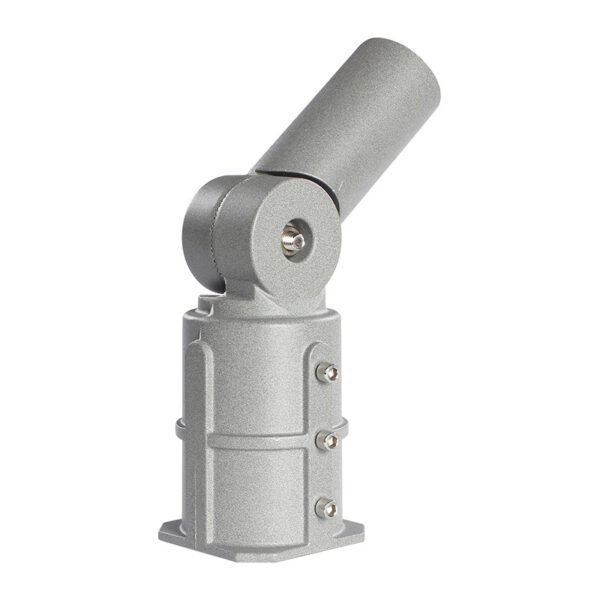

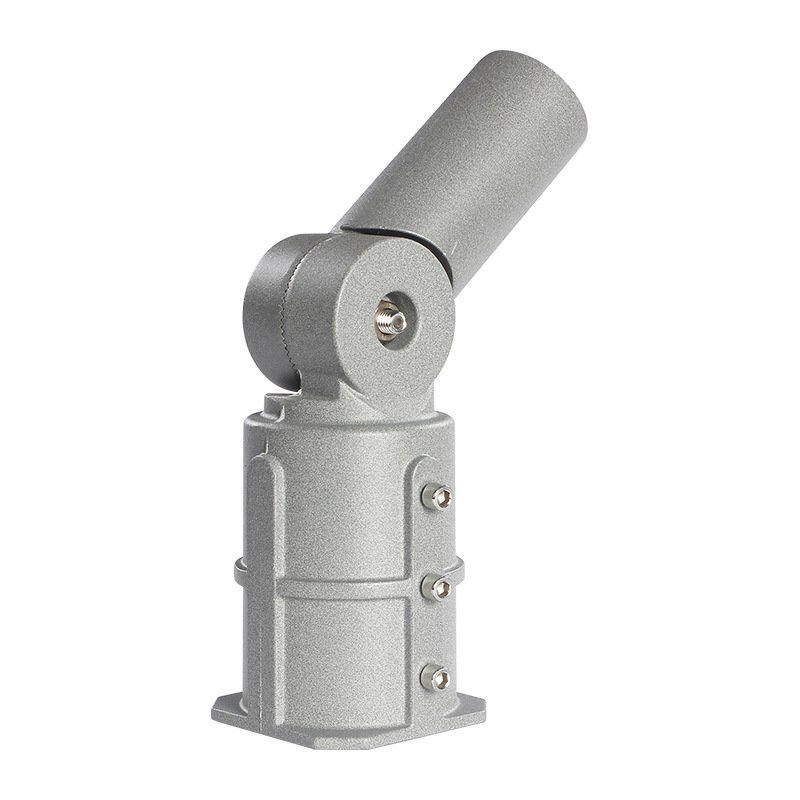

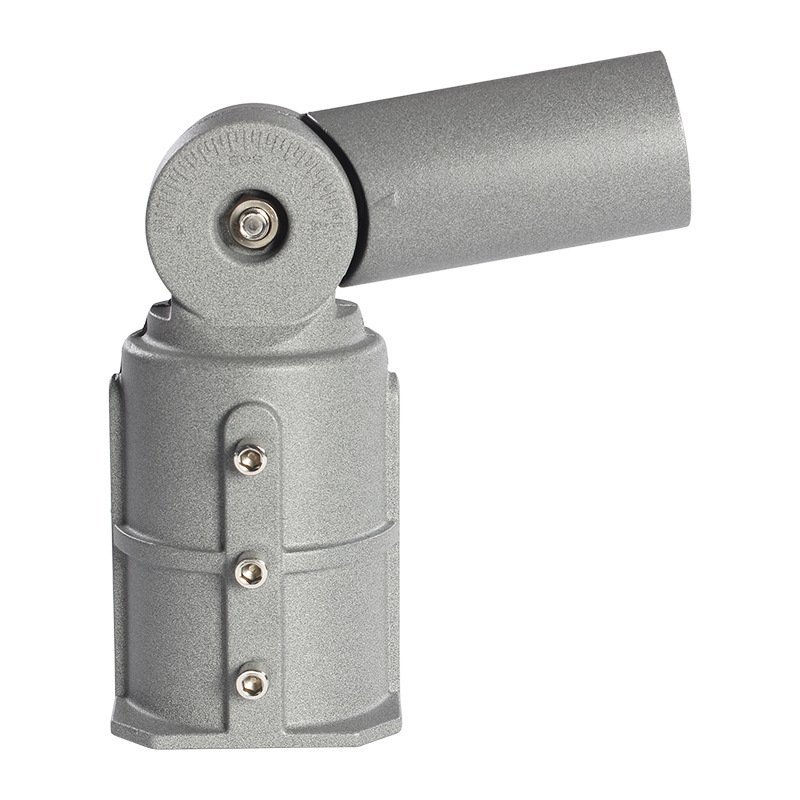

This adjustable swivel pole adapter is designed for outdoor lighting installations where both connection compatibility and fixture angle adjustment are required. It connects an 80mm pole section with a 60mm fixture arm while allowing the lighting direction to be adjusted during installation.
This makes it useful for solar street lights, LED outdoor fixtures, retrofit projects, and installations where pole position, road layout, mounting geometry, or required beam direction does not allow a simple straight connection.
What Buyers Usually Need to Confirm
Before quotation or supplier matching, buyers normally need to confirm:
- pole connection diameter
- fixture-arm or mounting-tube diameter
- required adjustment angle
- fixture weight and mounting requirement
- preferred installation direction
- surface finish or color requirement
- project quantity
- destination market
If the required mounting angle is not yet confirmed, buyers can also provide pole drawings, fixture dimensions, installation photos, or site information for compatibility checking.
Fixed or Adjustable Connection?
The main difference from a standard fixed adapter is the adjustable joint. This allows the installer to correct the fixture angle and improve alignment when the pole position and required lighting direction are not perfectly matched.
If no angle adjustment is required, see our simpler 80mm to 60mm Fixed Light Pole Adapter.
Related Light Pole Option
If the project also requires the supporting pole, see our Split-Type Galvanized Steel Light Pole 3m / 4m for outdoor lighting projects.
Typical Specifications
The specifications below are provided as a reference configuration. Final dimensions, angle range, and connection details should be confirmed according to the pole, fixture, and selected supplier.
- Type: Adjustable swivel pole adapter
- Material: Die-cast aluminum
- Surface Finish: Electrostatic powder coating
- Pole Connection Diameter: Ø80 mm
- Fixture Arm Diameter: Ø60 mm
- Adjustable Angle: Up to 120°
- Dimensions: 311 × 97 × 97 mm
- Weight: 1.09 kg
See the Adjustable Pole Adapter Inspection in Action

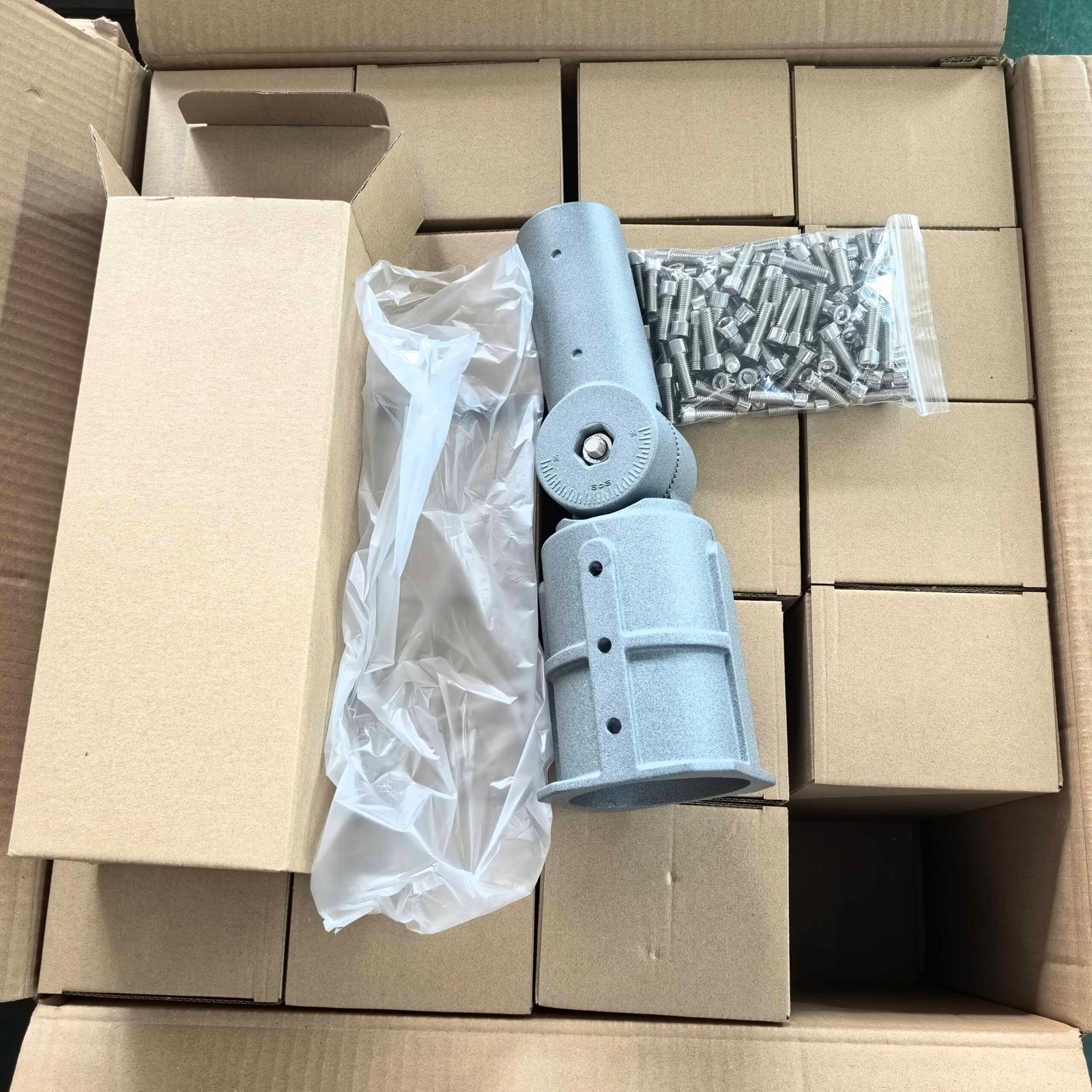

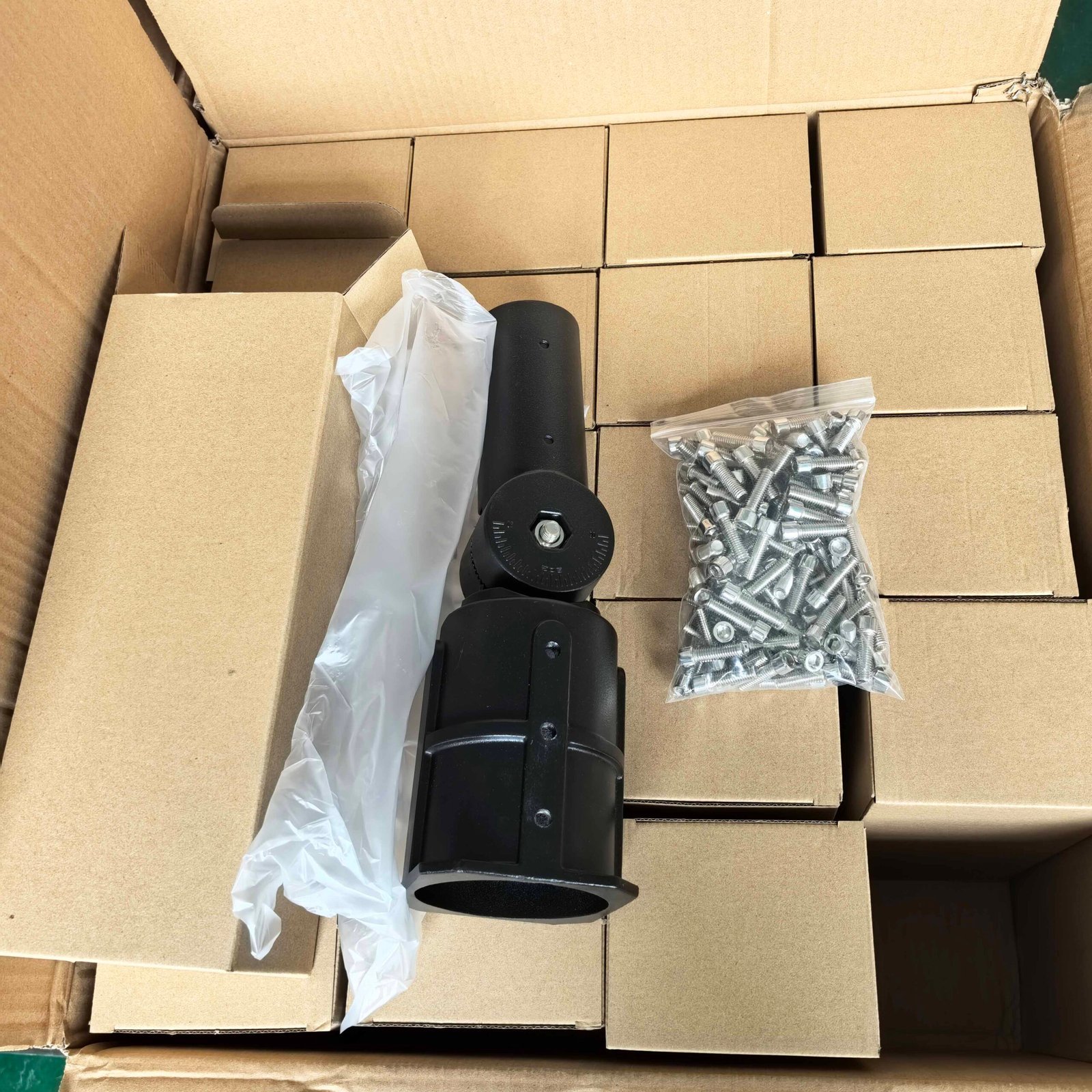

This inspection video shows the surface finish, fittings, connection details, and angle-adjustment mechanism of the swivel pole adapter before shipment.
Send Us Your Requirements
Send us your pole diameter, fixture connection size, required adjustment angle, quantity, drawings, photos, or project details. We can check suitable mounting configurations and sourcing options based on the actual installation.
