Product Overview

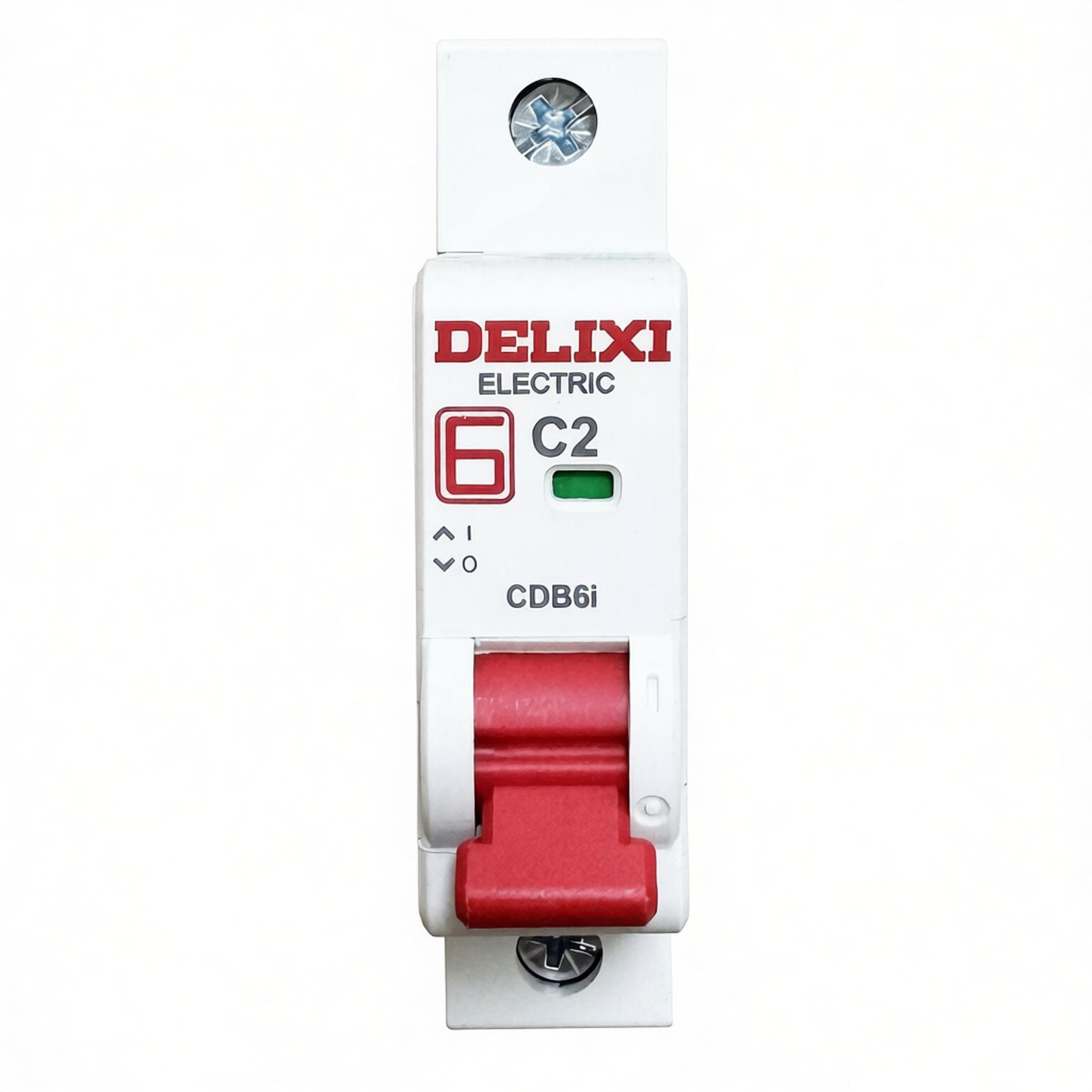

The DELIXI CDB6i C2 is a 1P 2A C-curve miniature circuit breaker designed for overload and short-circuit protection in low-current AC distribution and control circuits.
The reference unit is rated at 2A and uses a C tripping curve. It combines thermal protection for sustained overload conditions with magnetic protection for short-circuit faults, with a rated breaking capacity of 6kA.
This low-current configuration is commonly considered for control panels, auxiliary circuits, instrumentation power supplies, signalling circuits and other applications where a higher-current branch breaker would not be suitable.
This product is an MCB, not an RCBO. It provides overload and short-circuit protection but does not provide residual-current protection. If earth-leakage protection is required, the correct RCBO configuration should be selected separately.
What Buyers Usually Need to Confirm
Before quotation or supplier matching, buyers normally need to confirm:
- required DELIXI series
- number of poles
- rated current, such as 2A
- required tripping curve
- rated voltage and frequency
- required breaking capacity
- whether residual-current protection is also required
- required certificates or technical documentation
- project quantity and destination market
If the exact model is not yet confirmed, buyers can also provide an existing product photo, model list, panel schedule or electrical BOM for comparison.
Typical Specifications
The specifications below are based on the reference DELIXI CDB6i C2 unit and related product information. Final product marking, rated voltage, certification and supply-batch details should be reconfirmed before ordering.
| Brand | DELIXI ELECTRIC |
|---|---|
| Series | CDB6i |
| Product Type | Miniature circuit breaker |
| Number of Poles | 1P |
| Rated Current | 2A |
| Tripping Curve | C curve |
| Instantaneous Trip Range | 5–10 × In |
| Rated Frequency | 50/60Hz |
| Rated Operating Voltage | AC 230/400V or AC 240/415V series reference |
| Rated Breaking Capacity | 6kA |
| Protection Type | Thermal-magnetic |
| Protection Functions | Overload and short-circuit protection |
| Installation | TH35-7.5 DIN rail |
| Recommended Conductor Size | 2.0N·m |
| Operating Temperature | −35°C to +70°C |
| Installation Altitude | Up to 2,000m |
| Pollution Degree | 2 |
| Wiring Direction | Top or bottom supply permitted according to the official manual |
| Contact Indication | Front status indication window |
Related DELIXI Circuit Protection Options
The CDB6i C2 shown on this page is an MCB and does not provide residual-current protection. If the circuit also requires residual-current protection, buyers may compare these DELIXI RCBO configurations:
- DELIXI CDB6LESi 1P+N 16A 30mA RCBO for lower-current single-phase circuits.
- DELIXI CDB6LESi 1P+N 40A 30mA RCBO for higher-rated single-phase circuits.
- DELIXI CDB6LESi 3P 40A 30mA RCBO for 400V three-phase circuits.
- DELIXI CDB6LESi 1P+N 63A Custom 300mA RCBO for project-specific higher-current applications using a 300mA residual-current setting.
See the DELIXI Circuit Breakers in Real Product Form
This video shows DELIXI circuit breakers in different sizes and configurations. It is included as a real-product reference to help buyers see the physical appearance, modular format and variation across the product range.
The products shown in the video may include models with different current ratings, pole configurations or protection functions from the specific CDB6i C2 MCB described on this page.
Send Us Your Requirements
Send us the required DELIXI series, pole configuration, rated current, tripping curve, quantity and destination market.
For electrical-panel or multi-model orders, you may also send your BOM, panel schedule or existing breaker references. JXNUO can check suitable China-side supply options and coordinate specification confirmation, procurement, inspection, consolidation and shipment.
