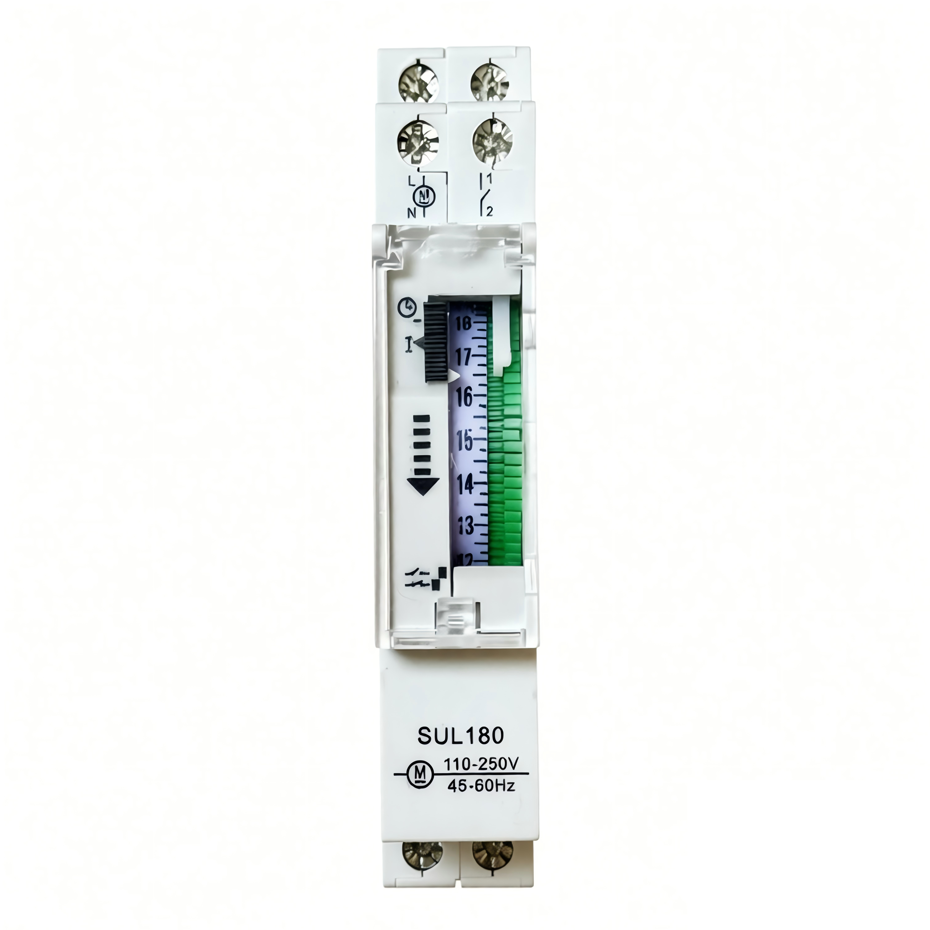

Product Overview
This 24-hour DIN rail mechanical time switch is designed for automatic daily ON/OFF control of lighting, ventilation, irrigation equipment and other electrical circuits.
The analogue dial uses 96 adjustable time segments, with each segment representing 15 minutes. Multiple switching periods can be arranged within one day, and the programme repeats automatically every 24 hours.
Its compact DIN rail format makes it suitable for installation inside distribution boards, equipment cabinets and electrical control panels.
What Buyers Usually Need to Confirm
Before quotation or supplier matching, buyers normally need to confirm:
- required operating voltage
- connected load type and rated current
- whether the load is resistive or inductive
- required number of ON/OFF periods per day
- whether manual override is required
- expected backup time during power interruption
- DIN rail installation requirement
- project quantity and destination market
For motors, pumps, LED drivers and other loads with higher starting or inrush current, a suitable contactor may be required instead of switching the load directly through the timer.
Typical Specifications
The specifications below are based on the reference sample shown on this page. Actual voltage range, contact rating, backup duration, terminal arrangement and markings may vary by manufacturer or order version.
| Product Type | 24-hour electromechanical time switch |
| Programme Cycle | Repeating every 24 hours |
| Number of Time Segments | 96 |
| Minimum Setting Interval | 15 minutes |
| Rated Voltage | 110–250VAC |
| Frequency | 45–60Hz |
| Contact Rating | 16A at 250VAC, resistive load |
| Operating Modes | Automatic programme / permanent ON |
| Backup Duration | 100 hours |
| Display Type | Analogue rotary dial |
| Installation | DIN rail mounting |

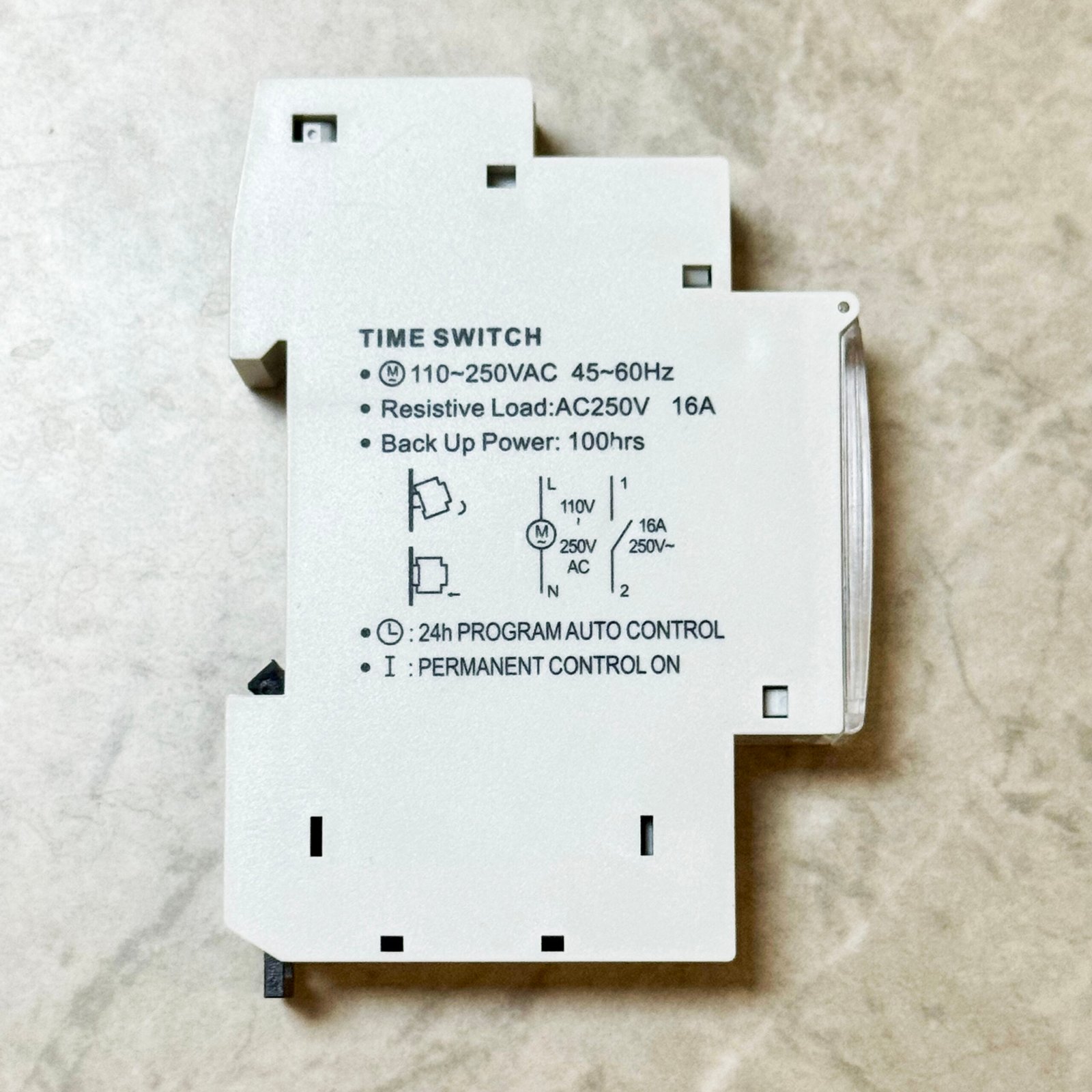

| Power Supply Terminals | L and N |
| Switching Output | Terminals 1 and 2 |
| Front Cover | Transparent protective cover |
| Branding | Standard, OEM or private label subject to order requirements |
Send Us Your Requirements
Send us your required voltage, connected load, quantity, destination market or project details. We can check suitable product versions and sourcing options based on your requirements.
