Product Overview

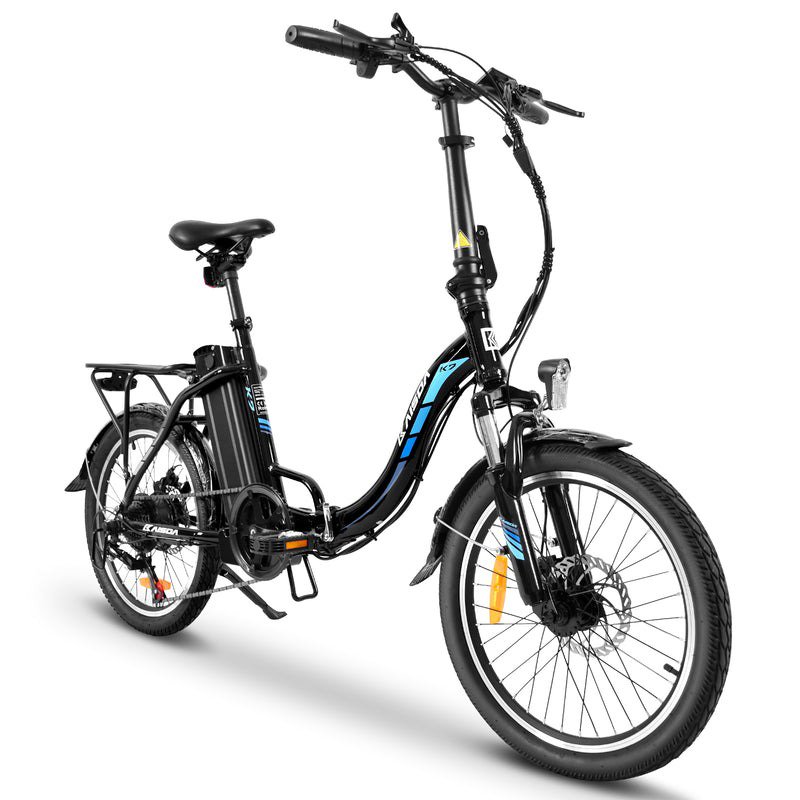

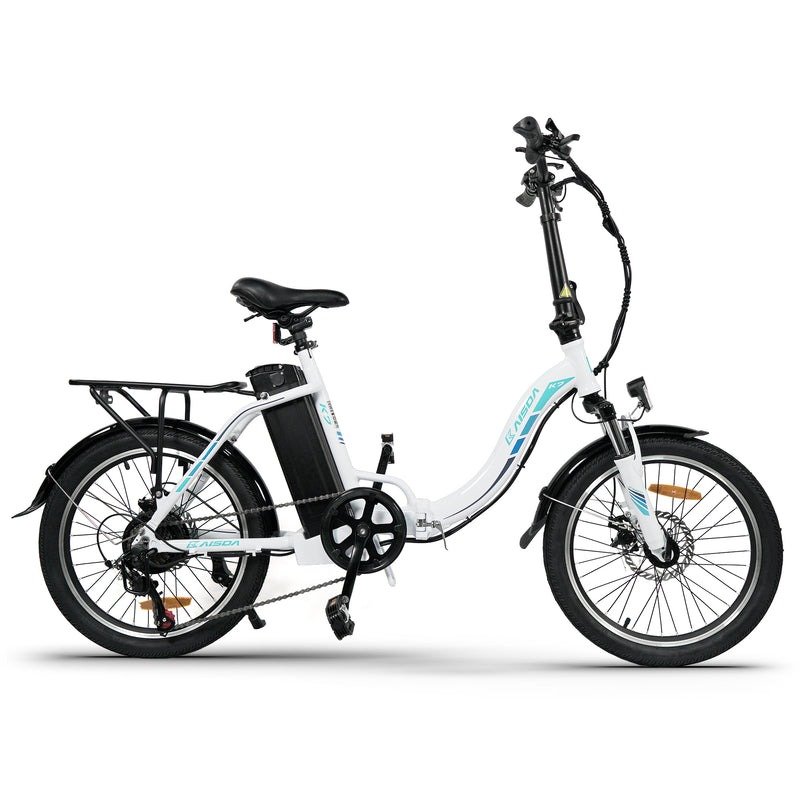

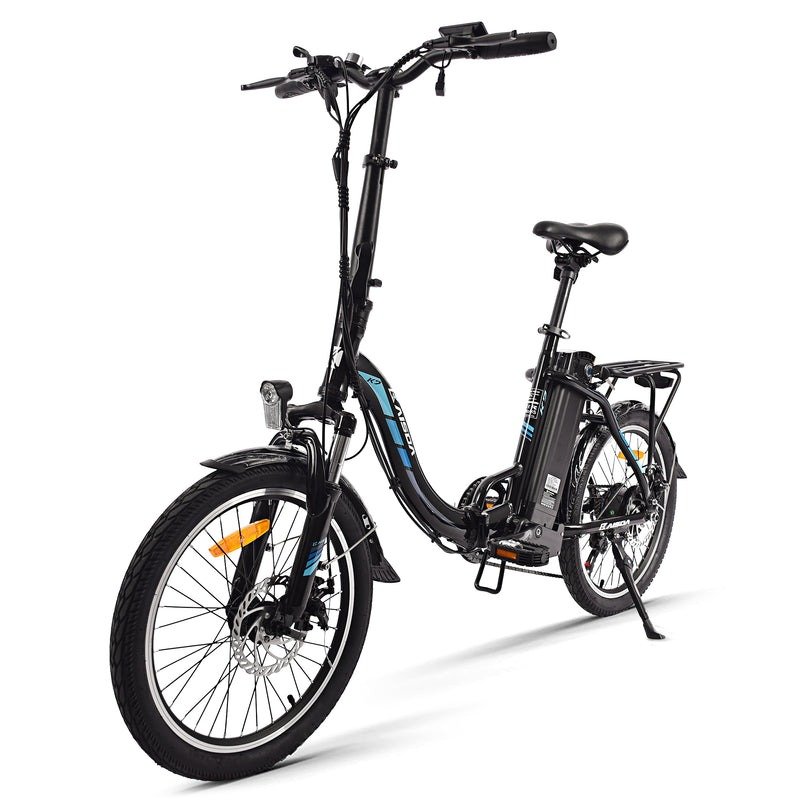

This 20-inch city e-bike is designed for everyday urban riding where buyers prefer a lighter, more conventional electric bicycle configuration rather than wider fat tires or a higher-power mixed-road setup.
The reference configuration uses an aluminum alloy frame, 20 × 1.95 tires, a 250W 36V brushless rear hub motor, removable 36V 13Ah lithium-ion battery with Samsung cells, SHIMANO 7-speed transmission and mechanical disc brakes. Its compact wheel size and road-oriented tires make it suitable for commuting, residential mobility, rental use and other regular paved-road applications.
Final configuration should be selected according to the destination market, local e-bike regulations, rider requirements, daily riding distance, target price and approved order specification.
What Buyers Usually Need to Confirm
Before sourcing a city e-bike, buyers should normally confirm:
- destination country and intended sales channel
- local electric-bicycle classification and compliance requirements
- required motor power and legal speed limit
- pedal-assist and throttle requirements
- battery voltage, capacity, cell preference and removable-battery requirement
- expected daily riding distance and charging conditions
- wheel and tire size preference
- frame style and rider-access requirements
- brake system and transmission configuration

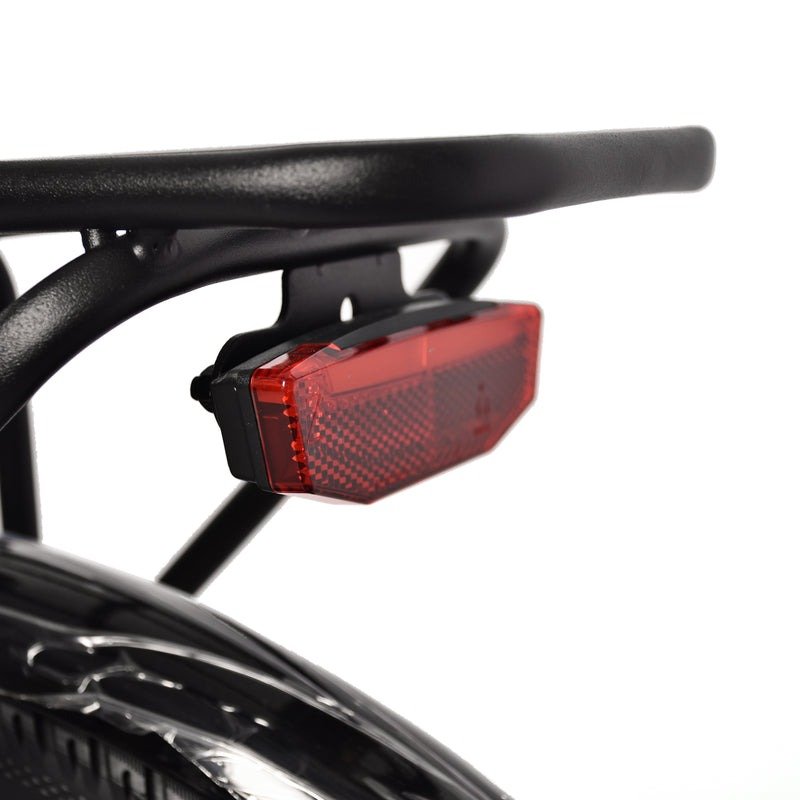

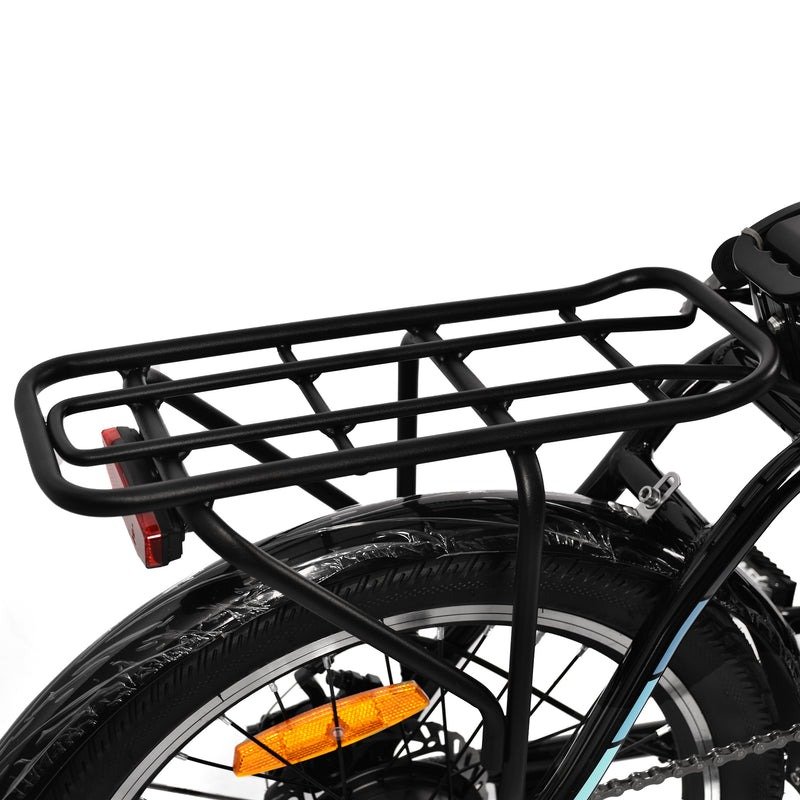

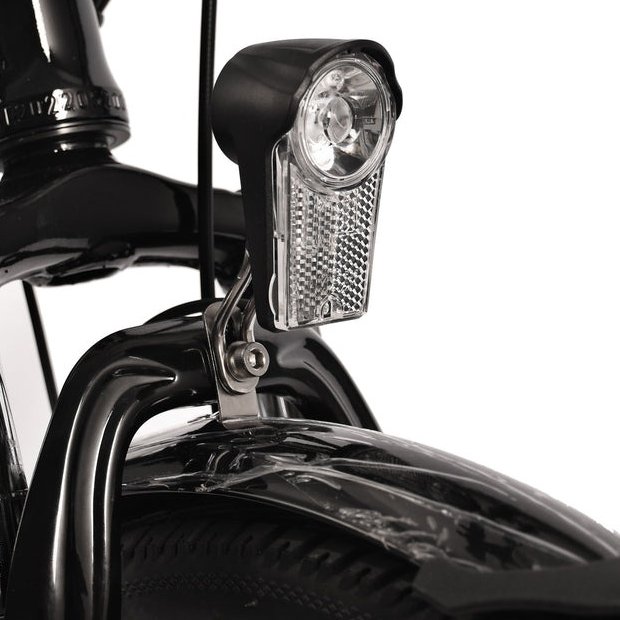

- lighting, mudguards, rear carrier and other accessories
- frame colour, logo and private-label requirements
- charger voltage and plug standard
- required product and battery documentation
- packing method and container-loading requirements
- spare parts planning and after-sales requirements
For distributor or OEM orders, label content, manuals, carton markings, serial-number requirements and branding details may also need to be confirmed before production.
Typical Specifications
The following configuration is provided as a reference for this 20-inch city e-bike. Final specifications should be confirmed according to the selected supplier, destination market and approved order configuration.
| Frame | Aluminum alloy |
| Battery | Lithium-ion 36V 13Ah Samsung cells (468Wh), removable |
| Charger | 36V 2A, 5~6 hours charge time |
| Tires | CY 20"×1.95 |
| Motor | 250W (sustained) , 36V brushless rear hub |
| Range | 40~65km |
| Default Speed | 25km/h |

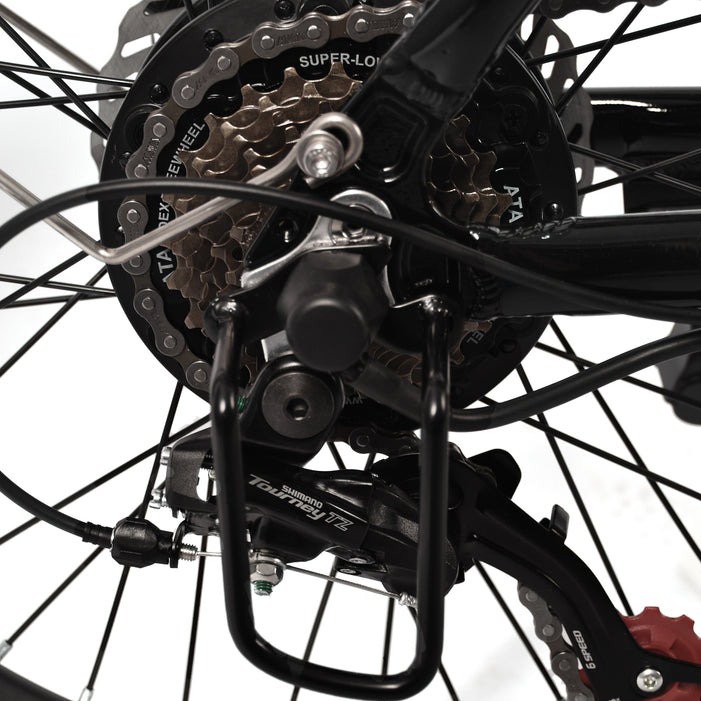

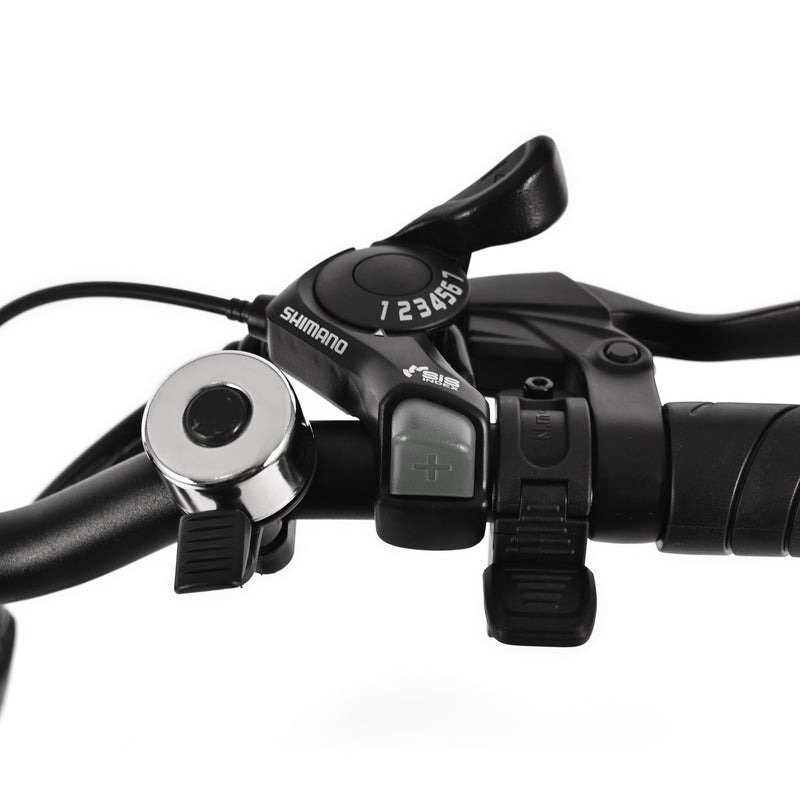

| Transmission | SHIMANO 7-speed |

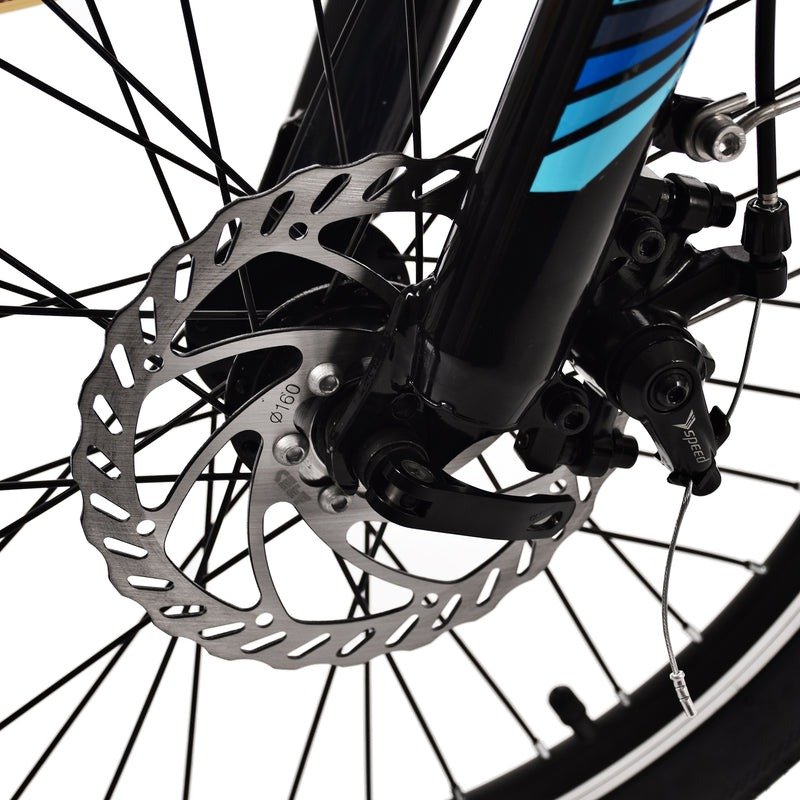

| Brake System | Mechanical disc brake |
| Bike Weight | Approx. 28kg |
| Max. Load | 150kg |
Compare Other E-Bike Configurations
If you need a different riding format, compare our 26-Inch 500W Step-Through Electric Bike for larger wheels and wider 3.0-inch tires, or the Foldable Fat Tire E-Bike for compact storage, 4.0-inch tires and stronger motor output.
View All E-Bikes
City Commuting & Configuration Notes
The reference model uses a 250W rear hub motor with a default speed of 25 km/h. This type of configuration is commonly associated with road-oriented city e-bikes, but buyers should still verify motor-power, speed-limit, pedal-assist and throttle requirements against the applicable rules in the destination market.
The removable 36V 13Ah battery has a nominal energy capacity of approximately 468Wh. Actual riding range will depend on rider weight, assistance level, road gradient, riding speed, stop-and-go frequency, temperature, tire pressure and battery condition. The stated 40–65 km range should therefore be treated as a reference rather than guaranteed real-world performance.
The 20 × 1.95 tire configuration is narrower and more road-oriented than the 3.0-inch and 4.0-inch tire setups used on the other reference e-bikes in this range. This generally supports lighter handling and more conventional city riding, while providing less cushioning and loose-surface capability than wider-tire models.
The reference bike weighs approximately 28 kg and is listed with a maximum load of 150 kg. Final load suitability should be considered together with rider weight, luggage, frame configuration, wheel and tire setup, braking system and actual operating conditions.
Battery transport requirements, charger specifications, warning labels and applicable product or battery documents should be confirmed before shipment according to the destination country and transport method.
Send Us Your Requirements
Send us your destination market, expected quantity, required motor power, speed setting, battery preference, intended riding use and any branding or certification requirements.
JXNUO can help compare suitable China suppliers and configurations, confirm key specifications and documentation, coordinate samples or orders, follow production, arrange pre-shipment inspection and support shipment coordination.
