Product Overview

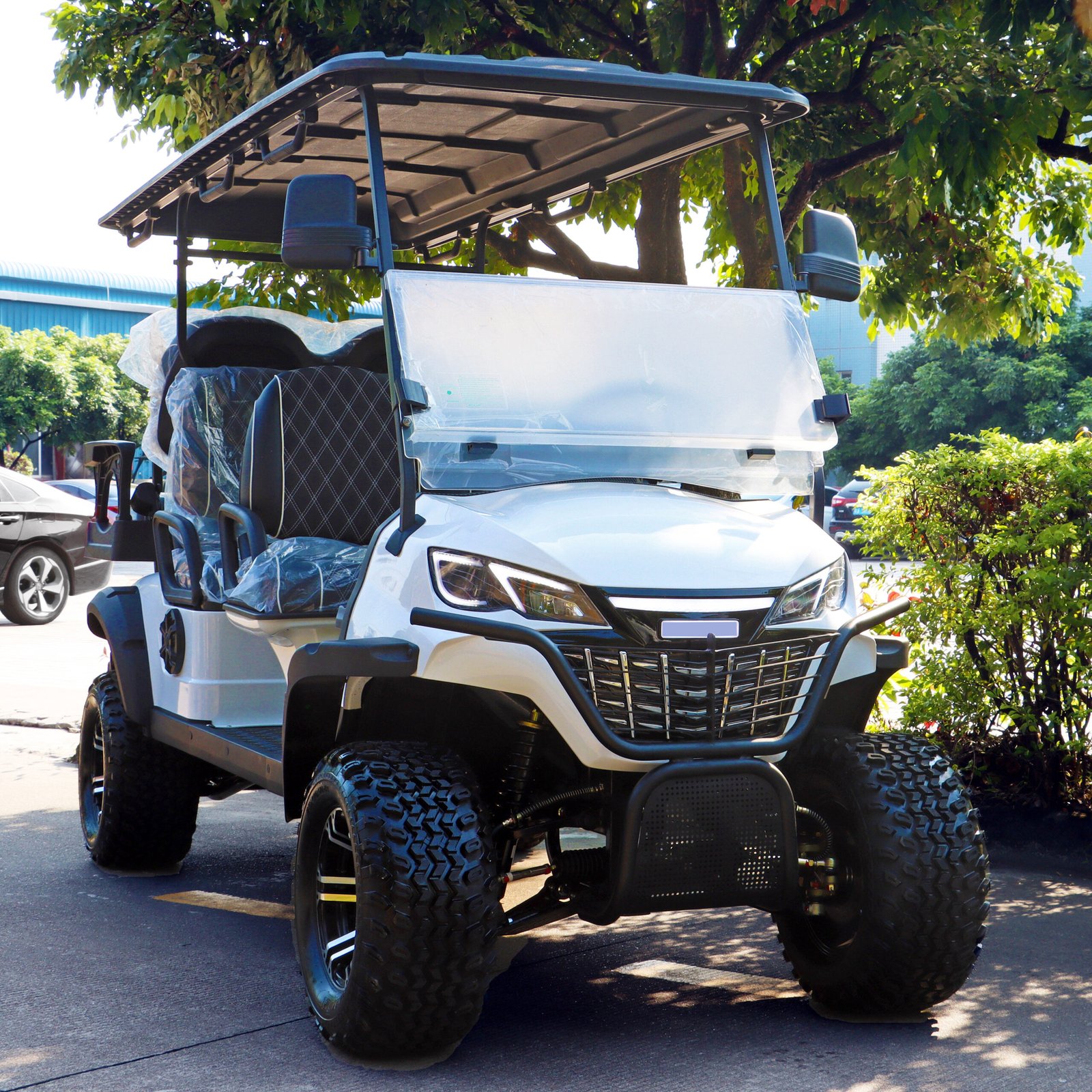

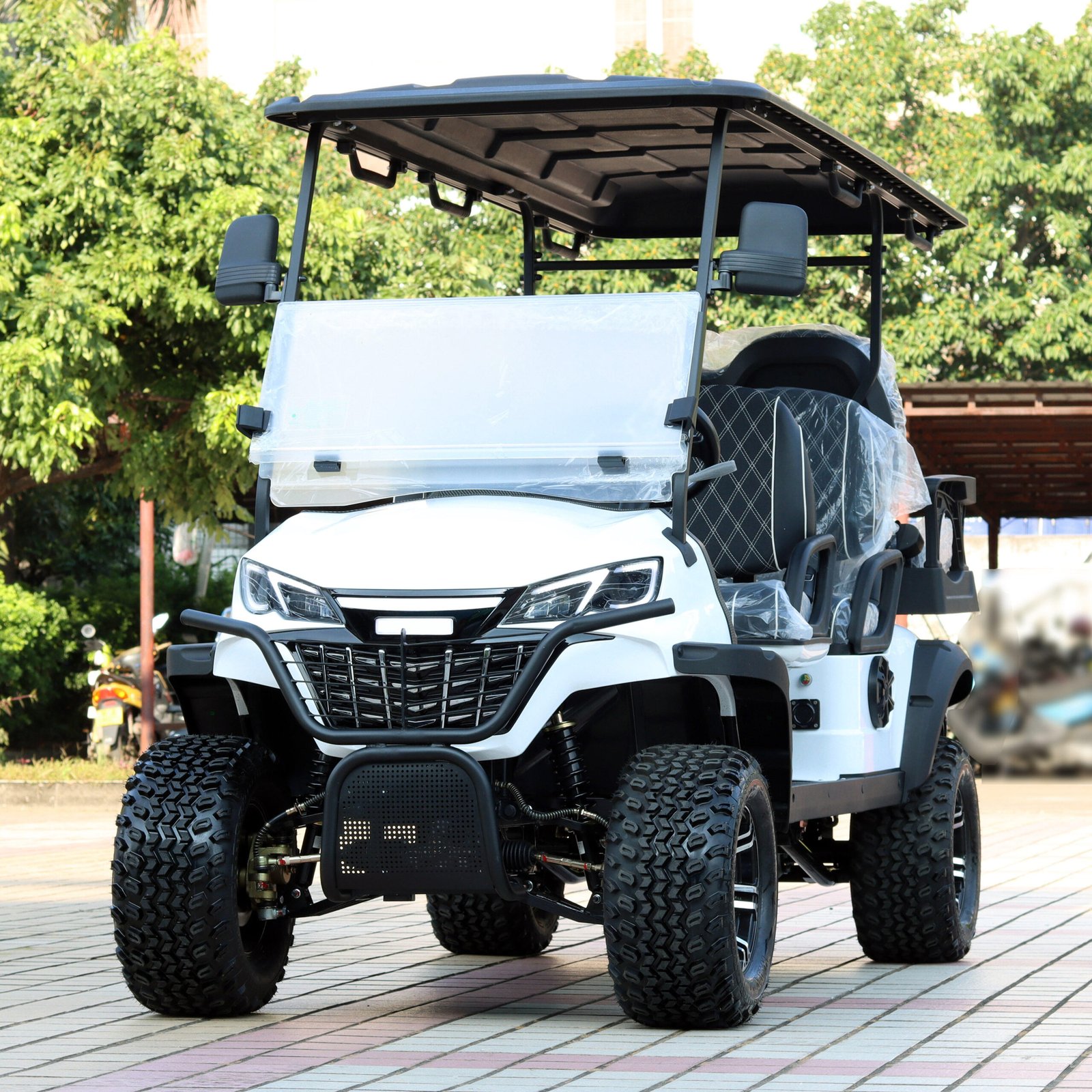

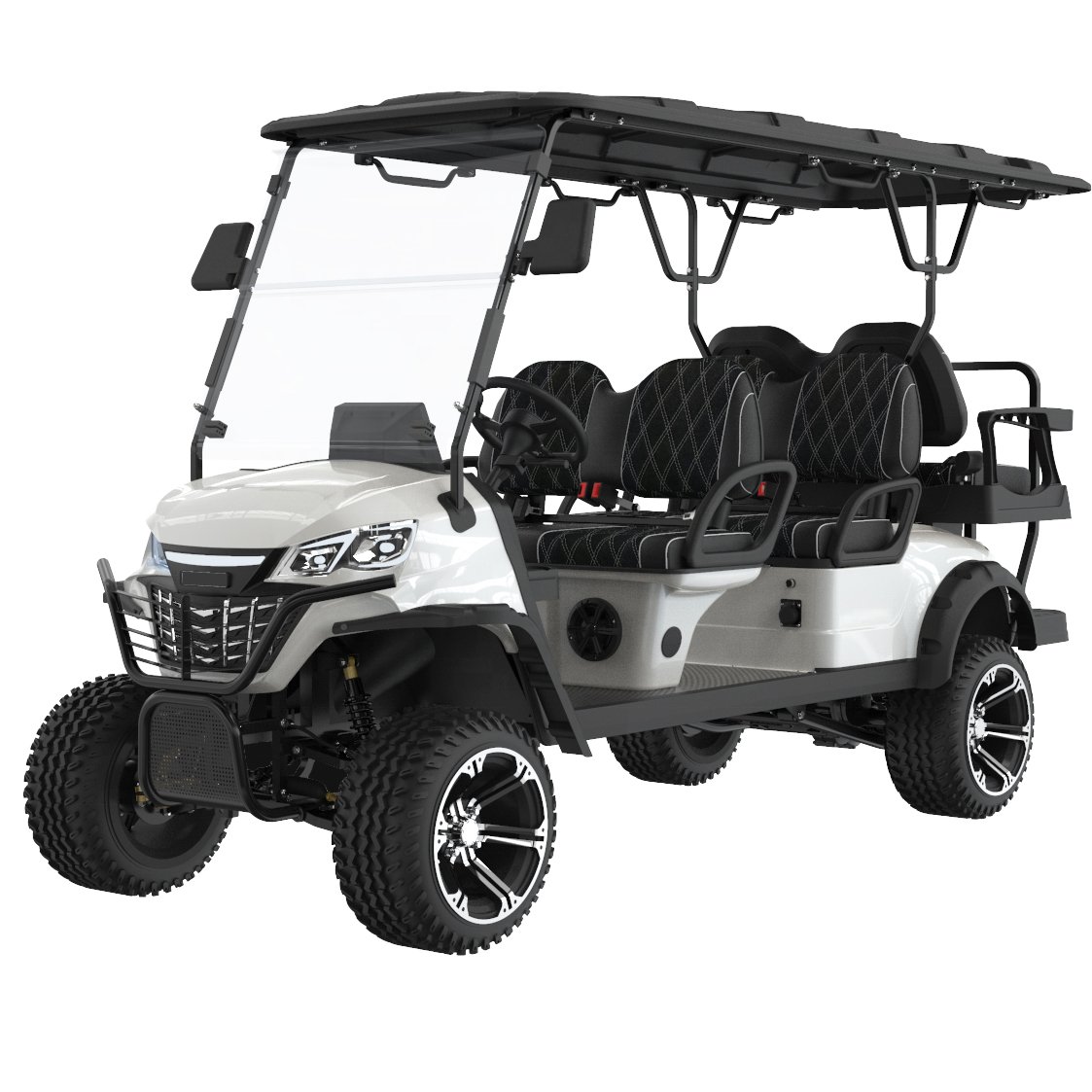

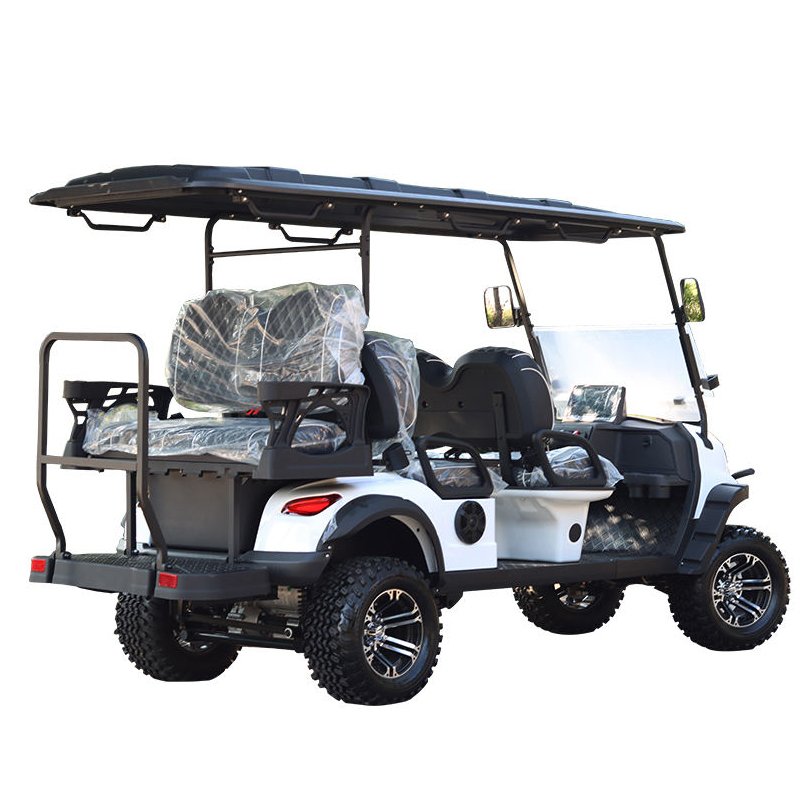

This 6-seater lithium golf cart uses a 4+2 seating layout for short-distance passenger transport in resorts, hotels, residential communities, campuses, golf facilities and other managed sites.
The reference configuration uses a 5kW motor and 7.2kWh lithium battery. The supplier lists a maximum speed of up to 40km/h and a driving range of approximately 80km under reference conditions.
Compared with a 4-seater model, the longer 6-seat configuration provides additional passenger capacity while remaining suitable for routine site transport and shuttle operations. Its reference dimensions are approximately 3730 × 1350 × 2060 mm, with a minimum turning radius of up to 5m.
Final configuration should be selected according to passenger demand, route conditions, operating environment, required speed, destination market and local regulatory requirements.
What Buyers Usually Need to Confirm
Before sourcing a 6-seater lithium golf cart, buyers should normally confirm:
- destination country and intended operating environment
- whether the vehicle will be used on private sites or public roads
- required passenger capacity and seating layout
- expected passenger flow and number of trips per day
- expected daily driving distance and operating frequency
- route conditions, including slopes, surface quality and turning space
- required maximum speed
- motor power and climbing requirements
- battery capacity and expected charging schedule
- charging voltage and plug standard for the destination market
- roof, windshield and weather-protection requirements
- seat material and colour configuration
- body colour, logo and fleet-branding requirements
- lighting, mirrors and other required accessories
- spare-parts and after-sales requirements
- local certification, registration or customs requirements
- packing method and container-loading plan
For fleet or project orders, buyers may also need to confirm vehicle numbering, key systems, labels, manuals, spare-parts packages and delivery schedule before production.
Typical Specifications
The following configuration is provided as a reference for this 6-seater lithium golf cart. Final specifications should be confirmed according to the selected supplier, operating environment and approved order configuration.
| Passenger Capacity | 6 seats (4+2 layout) |
| Dimensions (L × W × H) | 3730 × 1350 × 2060 mm |
| Range | Up to 80 km |
| Battery | Lithium, 7.2 kWh |
| Max. Speed | ≤40 km/h |
| Motor | 5 kW |
| Braking Distance | ≤ 4.5m |
| Min. Turning Radius | ≤ 5m |
| Wheelbase | 2420 mm |
| Min. Ground Clearance | 180 mm |
| Gradeability (Full Load) | ≤20% |
| Brake System | Hydraulic dual-circuit four-wheel disc brakes with electronic parking brake |
| Suspension | Front double A-arm / rear trailing-arm independent suspension |
| Kerb Weight | 746 kg |
Compare Other Golf Cart Capacities
For smaller passenger groups and more compact daily transport, see our 4-Seater Lithium Golf Cart (2+2). For higher passenger volumes and more dedicated shuttle use, compare the 8-Seater Electric Golf Cart (6+2).
Range, Passenger Use & Site-Operation Notes
Range, speed, braking-distance and climbing figures should be treated as reference values rather than guaranteed real-world performance.
Actual driving range can vary according to passenger load, route gradient, driving speed, stop-and-go frequency, battery condition, temperature, tire pressure, accessory use and vehicle maintenance.
Because this 6-seat version is longer than a standard 4-seater golf cart, route width, turning areas, parking space and manoeuvring conditions should also be checked against the intended site. The listed turning radius and vehicle dimensions should be considered when planning resort, campus, community or property shuttle routes.
Where the vehicle is intended for public-road use, buyers should separately confirm local vehicle classification, registration, lighting, braking, identification and certification requirements. A golf cart suitable for private-site operation may not automatically qualify for public-road registration in every market.
Send Us Your Requirements
Send us your destination market, expected quantity, passenger capacity, operating environment, daily route, required speed, battery preference and any certification or registration requirements.
JXNUO can help compare suitable China suppliers and configurations, confirm key specifications, coordinate samples or orders, follow production, arrange pre-shipment inspection and support shipment from China.
