Product Overview
This 26-inch step-through electric bike is designed for commuting, suburban riding, recreational use and mixed-road conditions where buyers want more tire stability than a standard commuter e-bike without moving to a full 4.0-inch fat-tire configuration.

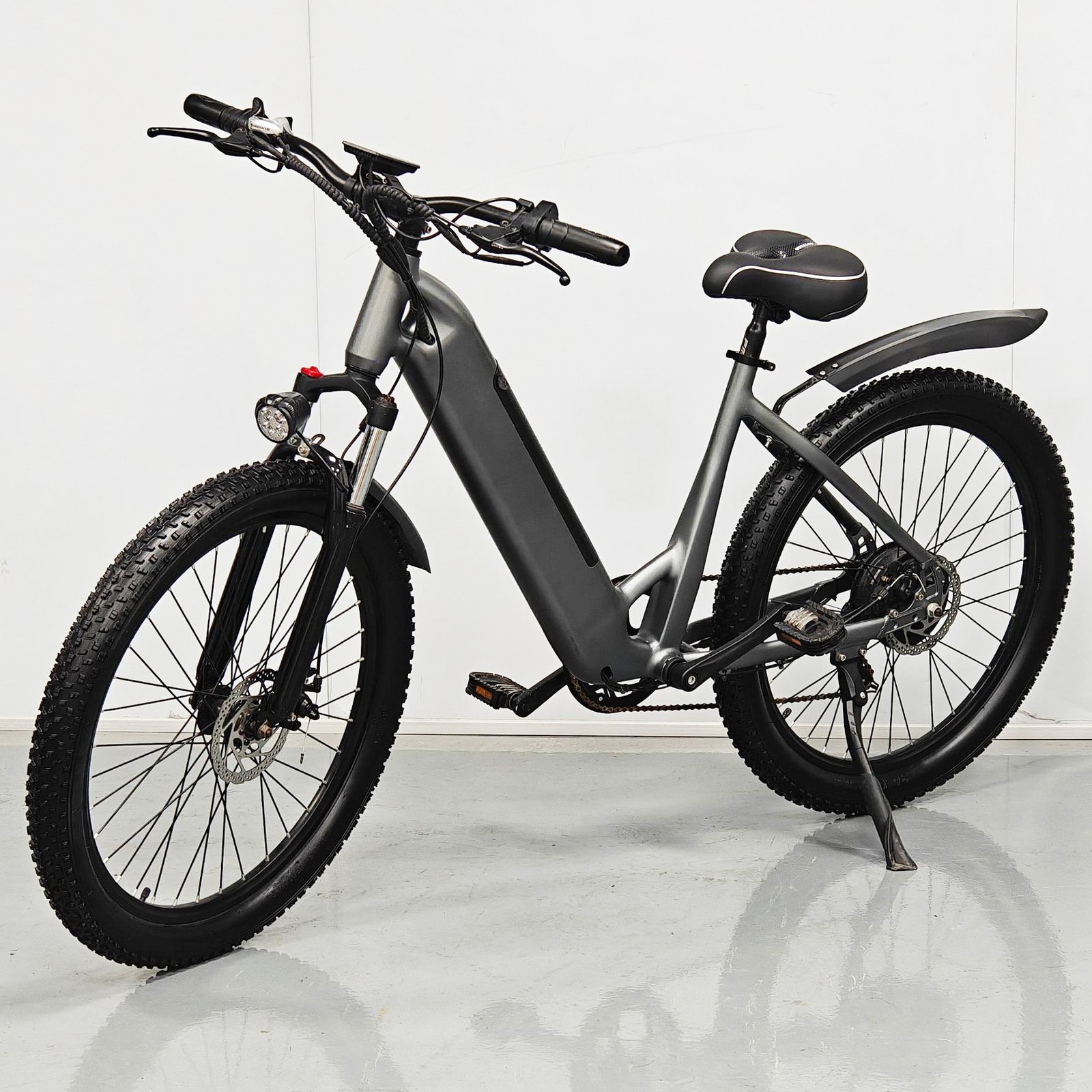

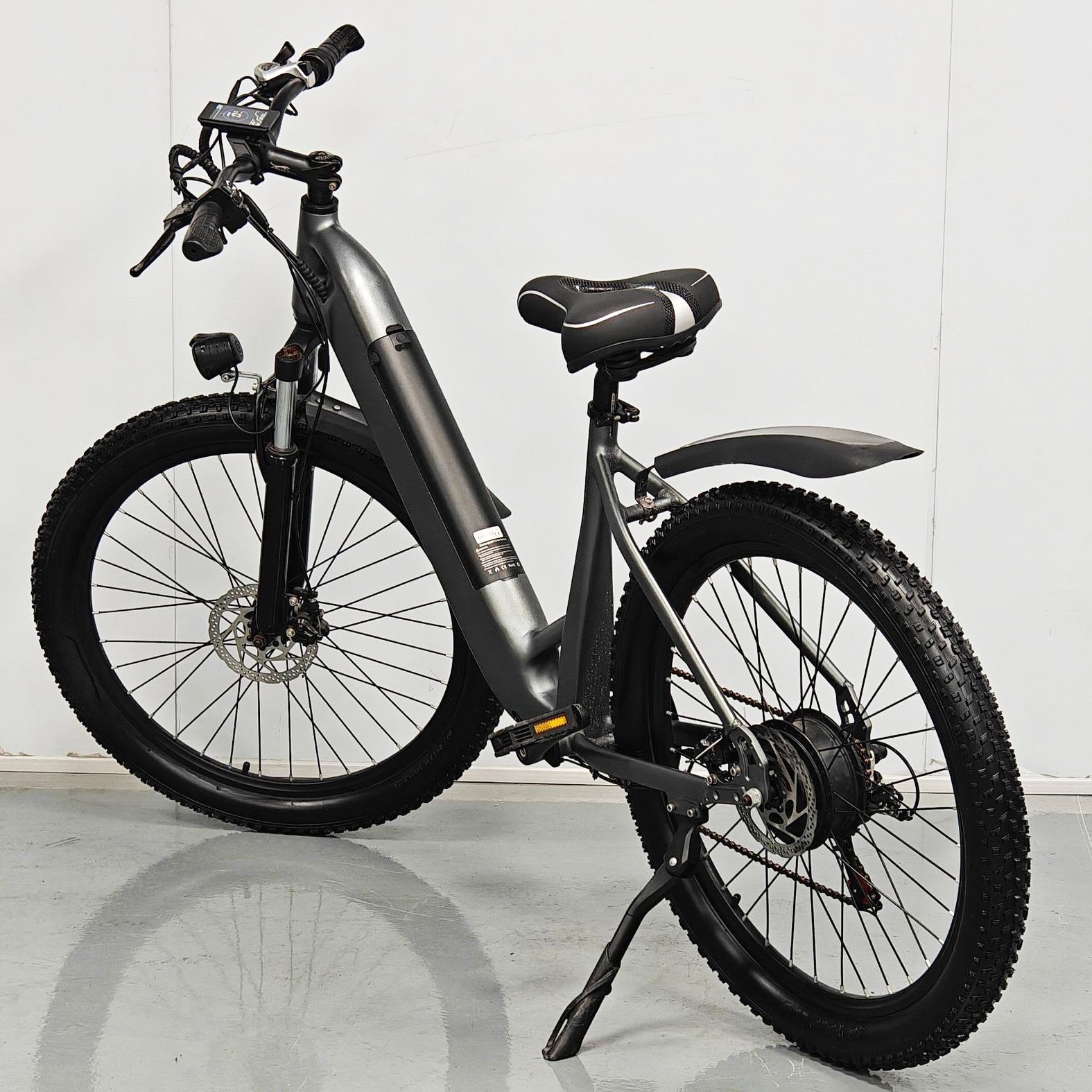

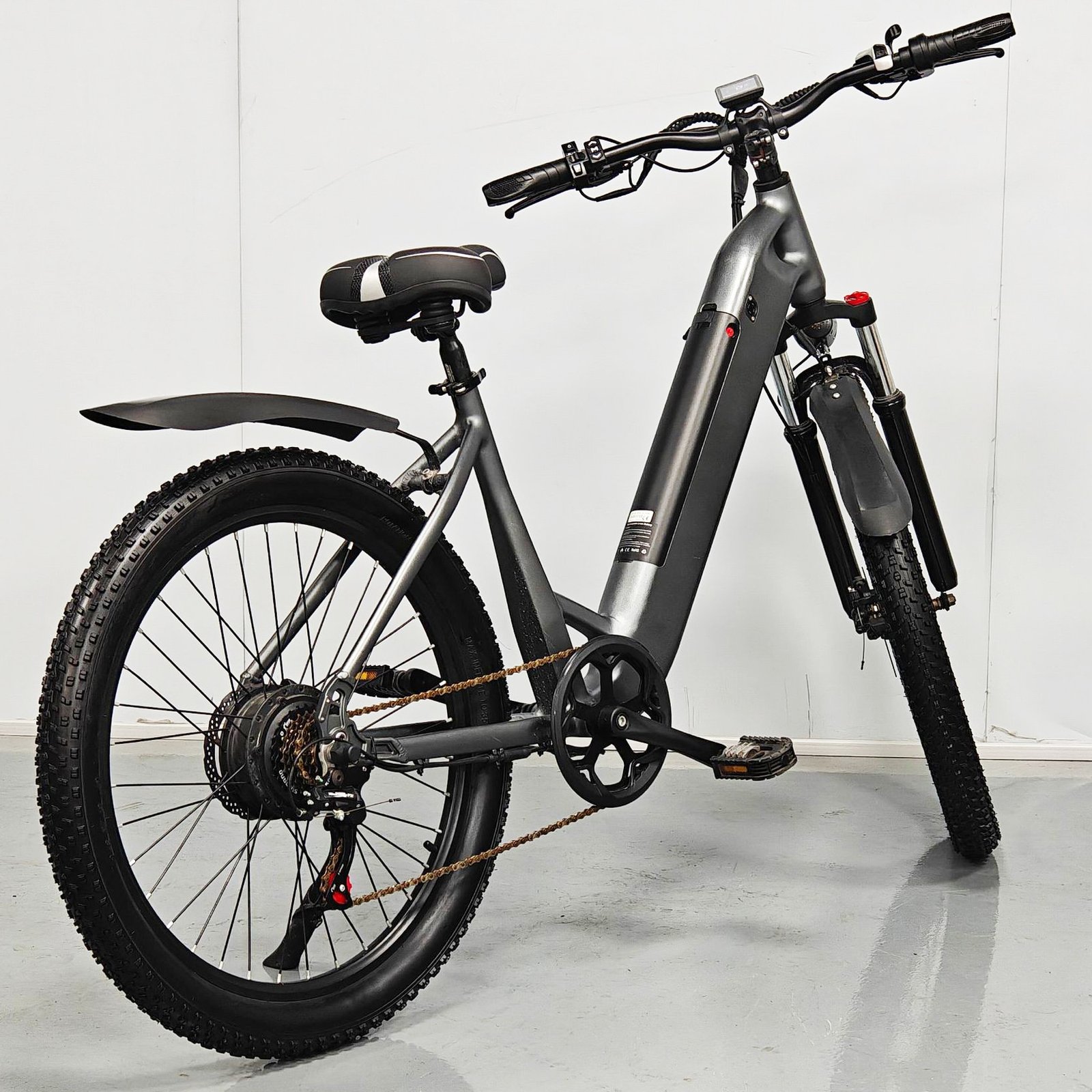

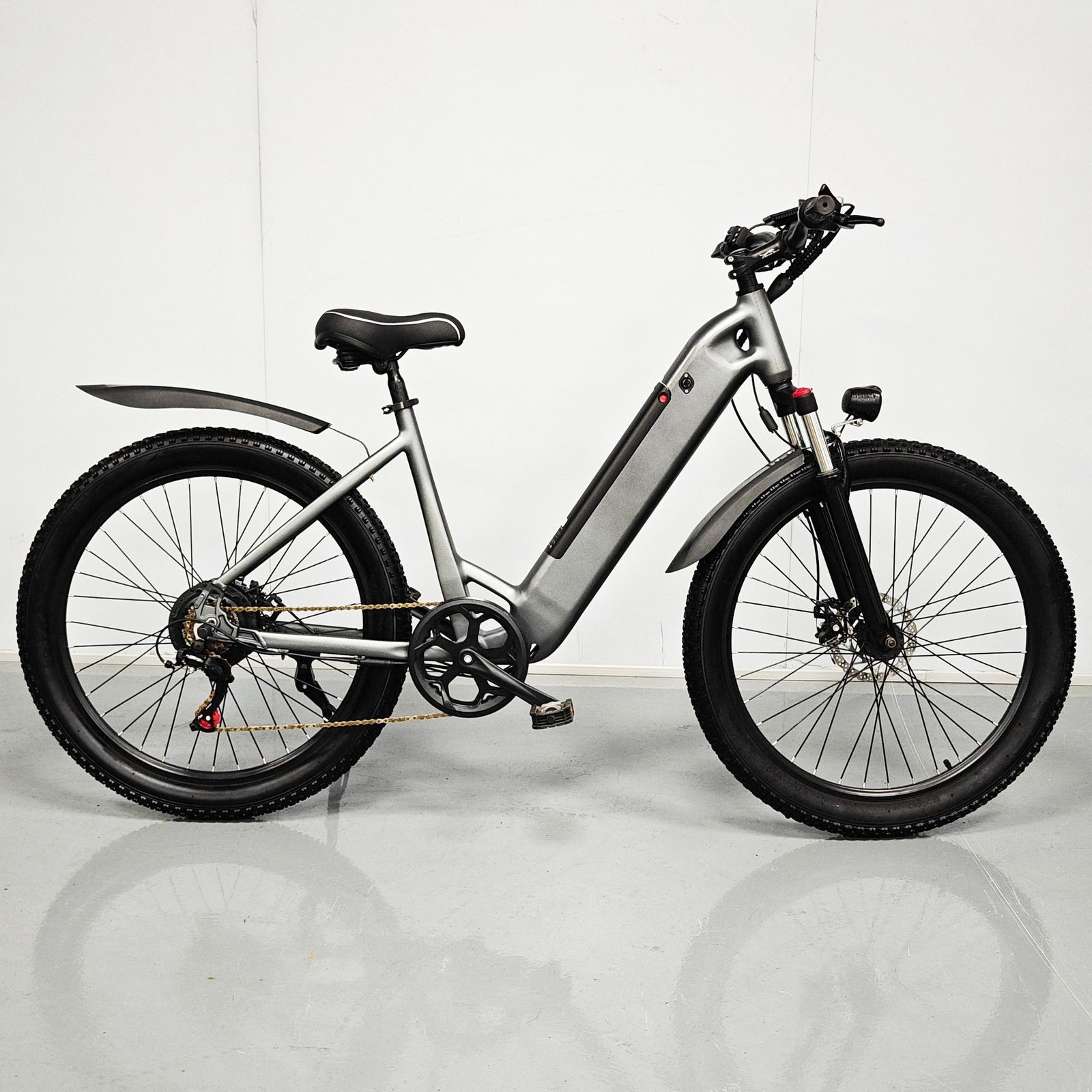

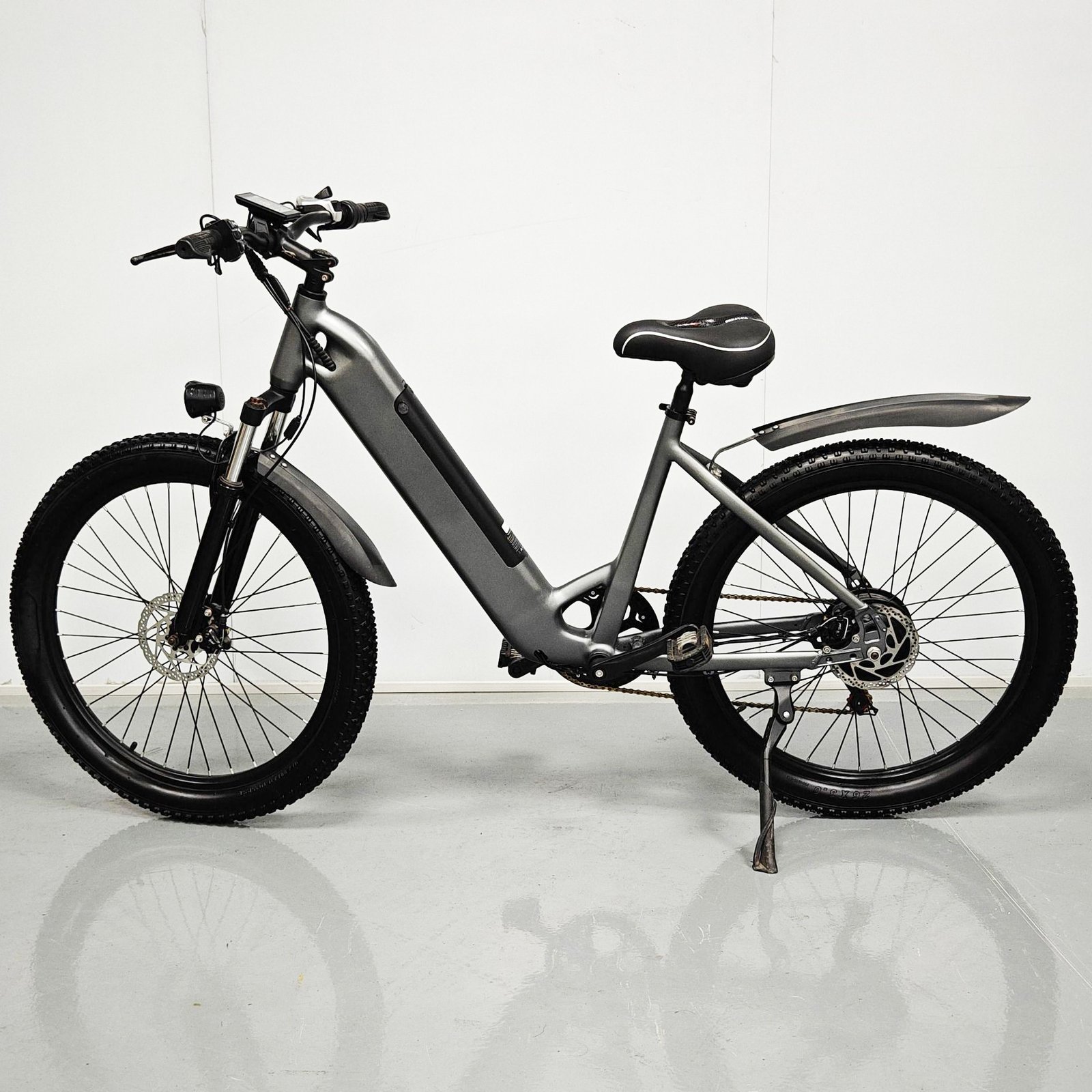

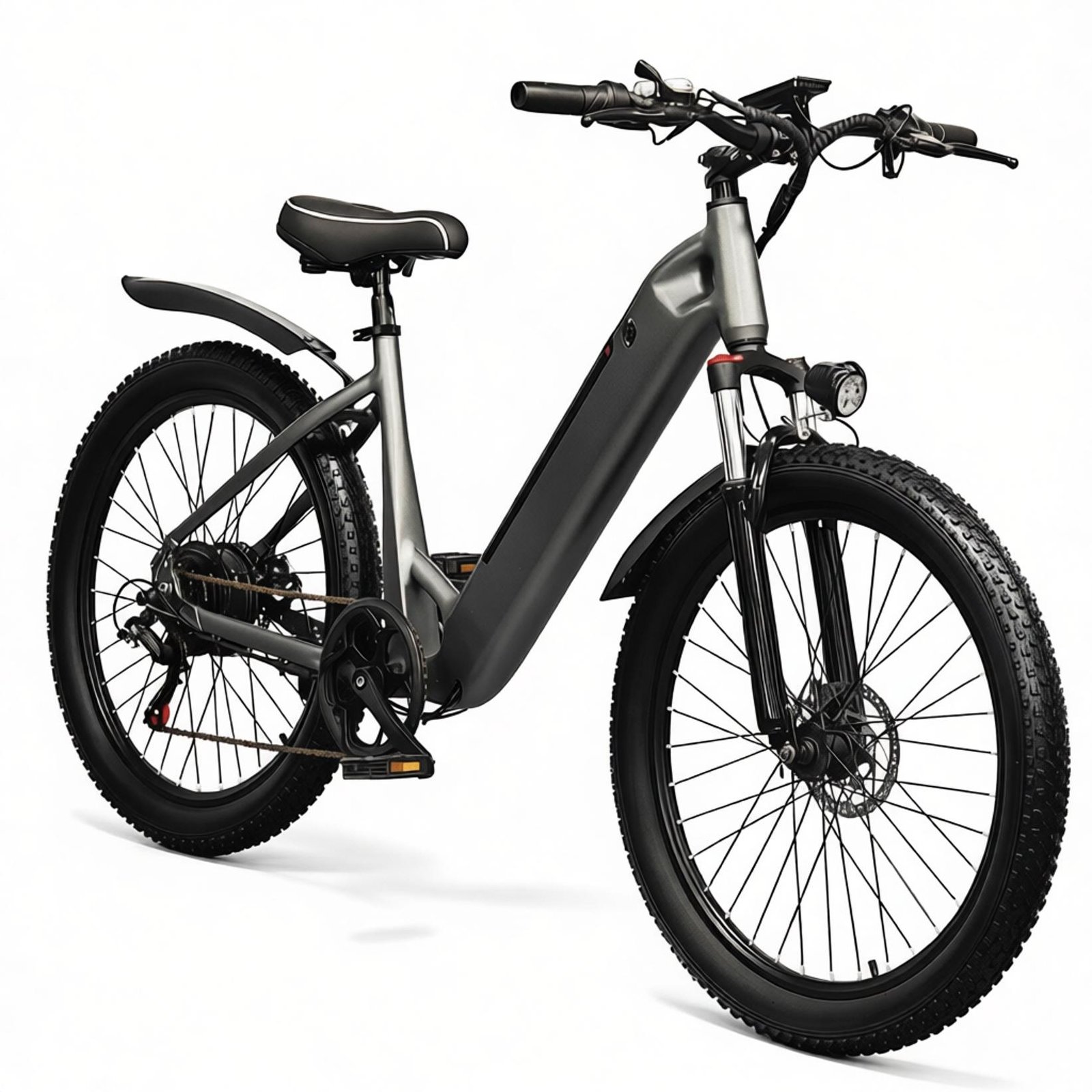

The reference model uses a 500W motor, 48V 15Ah LiFePO4 battery, 26 × 3.0-inch tires and front suspension. Its low-step frame provides easier mounting and dismounting, while the wider tires offer additional cushioning and stability on uneven surfaces.
Final configuration should be selected according to the destination market, intended use, local e-bike regulations, rider requirements, target price and expected operating conditions.
What Buyers Usually Need to Confirm
Before sourcing this type of electric bike, buyers should normally confirm:
- destination country and intended sales channel
- intended use, such as commuting, leisure, rental or mixed-road riding
- required motor power and local legal power limit
- maximum assisted speed permitted in the destination market
- pedal-assist and throttle requirements
- battery chemistry, voltage and capacity
- expected daily riding distance
- wheel and tire size
- step-through or other preferred frame style
- mechanical or hydraulic brake preference
- gear system and display requirements
- charger voltage and plug standard
- lighting, mudguards, carrier or other accessories
- frame colour, logo and private-label requirements
- required product and battery documentation
- packing method and container-loading requirements
For distributor or fleet orders, buyers may also need to confirm spare parts, manuals, carton markings, serial-number requirements and after-sales arrangements before production.
Typical Specifications
The following configuration is provided as a reference for this 26-inch electric bike. Final specifications should be confirmed according to the selected supplier, destination market and approved order configuration.
| Wheel Size | 26 inch |
| Tire Size | 26 × 3.0 inch |
| Motor Power | 500W |
| Battery | 48V 15Ah LiFePO4 lithium battery |
| Riding Functions | Electric riding, pedal assist and pedal riding |
| Drive System | Chain drive |
| Brake System | Mechanical disc brake |
| Front Suspension | Oil-suspension front fork |
| Frame Style | Step-through / low-step frame |
| Maximum Load | Up to 150 kg |
| Packing Size | 156 × 30 × 86 cm |
| 20GP Loading Quantity | 71 units |
| 40HQ Loading Quantity | 174 units |
Compare Other E-Bike Configurations
For a more road-oriented commuter format, see our City E-Bike. If folding storage, wider 4.0-inch tires and higher motor output are more important, compare the Foldable Fat Tire E-Bike.
View All E-Bikes
Motor, Battery & Market-Use Notes
The 500W motor rating should be checked against the legal classification of electric bicycles in the destination market. Motor power, assisted-speed limits and throttle rules differ between countries, and a configuration marketed as an e-bike in one market may require a different specification or vehicle classification in another.
The reference model uses a 48V 15Ah LiFePO4 battery. Actual riding range will depend on rider weight, terrain, assisted-power level, speed, tire pressure, temperature, riding style and battery condition. Battery capacity alone should therefore not be treated as a guaranteed range figure.
The 26 × 3.0-inch tire configuration sits between standard bicycle tires and full fat tires. It can provide additional stability and cushioning while remaining less bulky than many 4.0-inch fat-tire models. Final tire, brake, suspension and gearing specifications should be matched to the intended riding environment and target market.
Battery transport documents, charger requirements, product markings and applicable certifications should also be confirmed before shipment according to the destination country and transport method.
Send Us Your Requirements
Send us your destination market, expected quantity, intended use, target motor power, battery preference, tire size and any branding or certification requirements.
JXNUO can help compare suitable China suppliers and configurations, confirm key specifications and documentation, coordinate samples or orders, follow production, arrange pre-shipment inspection and support shipment coordination.
