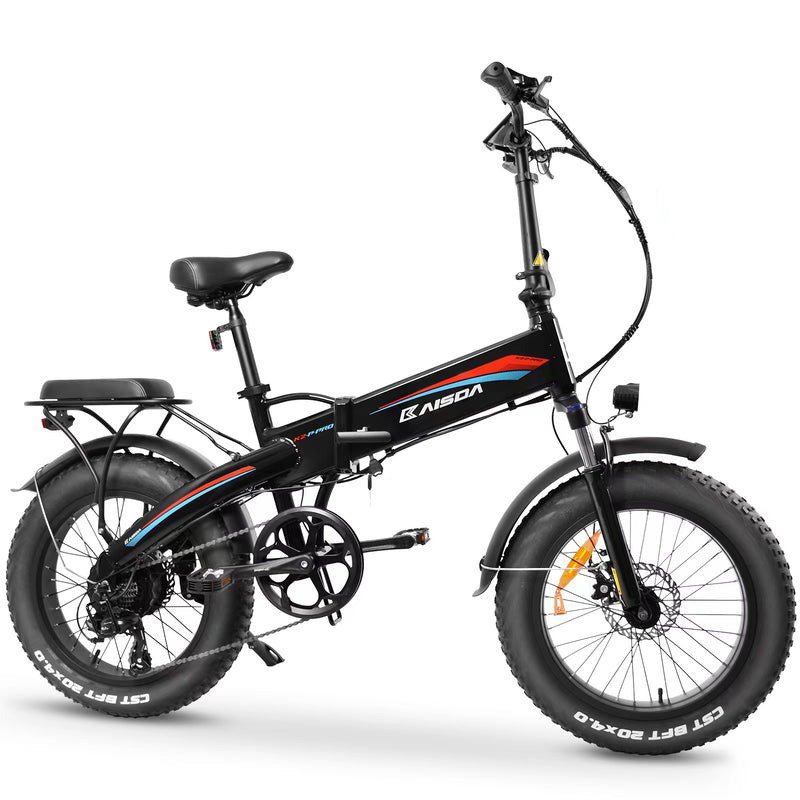

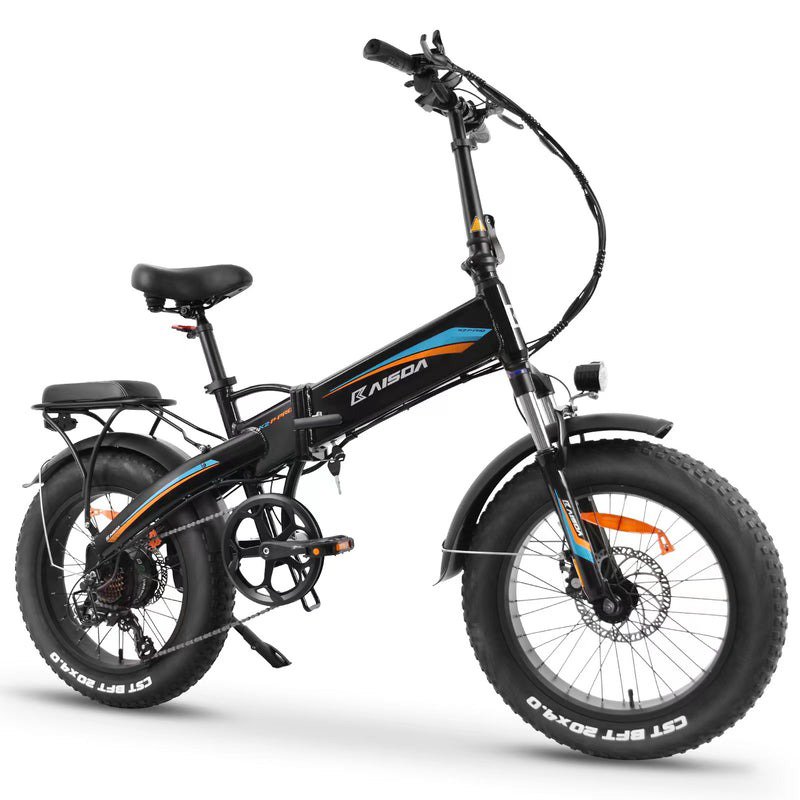

Product Overview
This foldable fat tire electric bike is designed for buyers who need a more compact electric bicycle without giving up wider tires, stronger motor support and broader road adaptability than a standard commuter e-bike.
The reference model uses an aluminum alloy folding frame, 20 × 4.0 tires, a BAFANG 750W rear hub motor, removable 48V 15Ah lithium-ion battery with Samsung cells, SHIMANO 7-speed transmission and TEKTRO mechanical disc brakes. It is commonly considered for urban commuting, leisure riding, mixed-road use, rental projects and other applications where compact storage and portability are important.
Final configuration should be selected according to the destination market, intended use, local e-bike regulations, target price, required riding performance and order requirements.
What Buyers Usually Need to Confirm
Before sourcing this type of foldable electric bike, buyers should normally confirm:
- destination country and intended sales channel
- required e-bike classification in the destination market
- required motor power and legal speed-limit setting
- pedal-assist and throttle requirements
- battery chemistry, voltage, capacity and removable-battery preference
- expected riding range and charging conditions
- wheel and tire size preference
- folding-frame requirements and portability expectations

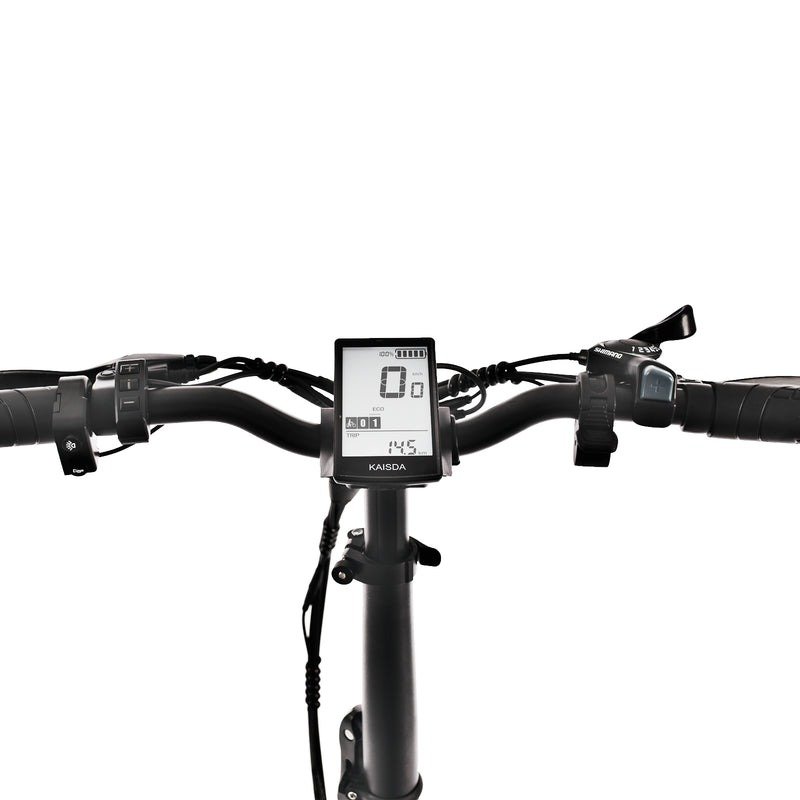

- brake type, transmission and display configuration

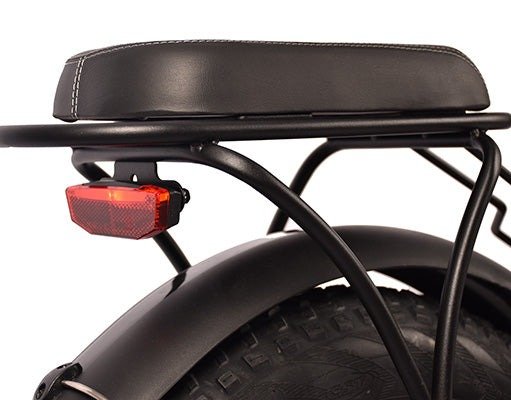

- lighting, mudguards, rear carrier and other accessories
- frame colour, logo and private-label requirements
- charger plug and voltage standard
- required product and battery documentation
- packing dimensions and container-loading expectations
- spare parts planning and after-sales requirements
For OEM or bulk orders, buyers may also need to confirm carton markings, manuals, serial-number requirements, label content and branding details before production.
Typical Specifications
The following configuration is provided as a reference for this foldable fat tire electric bike. Final specifications should be confirmed according to the selected supplier, compliance target and approved order configuration.
| Frame | Aluminum alloy folding frame |
| Battery | Lithium-ion 48V 15Ah Samsung cells (720Wh), removable |
| Charger | 48V 3A, 5~6 hours charge time |
| Tires | CST 20"×4.0 |
| Motor | BAFANG 750W (sustained), 900W peak, 48V rear hub |
| Range | 50~70km |
| Default Speed | 25km/h |
| Transmission | SHIMANO 7-speed |

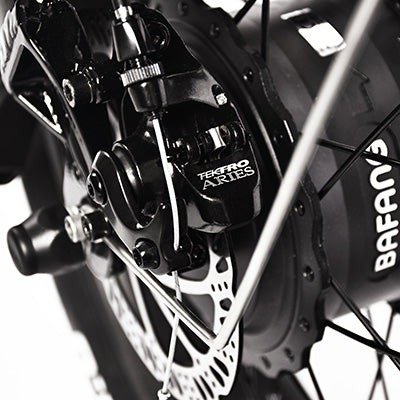

| Brake System | TEKTRO mechanical disc |
| Bike Weight | Approx. 35 kg |
| Max. Load | 150kg |
Compare Other E-Bike Configurations
For a lighter urban commuting format, compare our City E-Bike. For larger 26-inch wheels, a step-through frame and a less bulky 3.0-inch tire setup, see the 26-Inch 500W Step-Through Electric Bike.
View All E-Bikes
Folding, Motor & Battery Notes

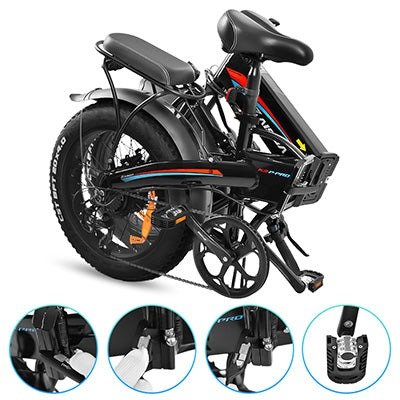

The folding structure can help reduce storage and transport space requirements, but folded size, locking structure, carton dimensions and handling convenience should be confirmed based on the intended market and shipping plan.

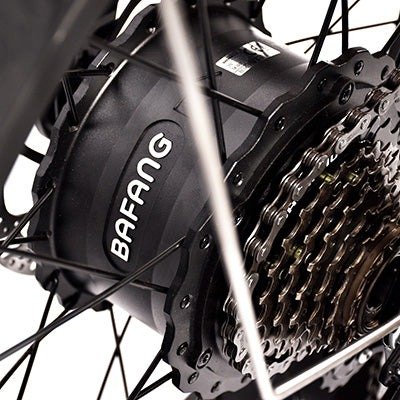

The reference configuration uses a BAFANG 750W rear hub motor with 900W peak output. Buyers should check whether this power level matches the legal definition of an electric bicycle in the destination market, since allowable motor power, speed limits and throttle rules can differ significantly between countries.
The removable 48V 15Ah battery provides flexibility for charging and daily use. Actual riding range will depend on rider weight, terrain, assisted-power level, speed, tire pressure, temperature, riding style and battery condition. Range figures should therefore be treated as reference values rather than guaranteed real-world performance.

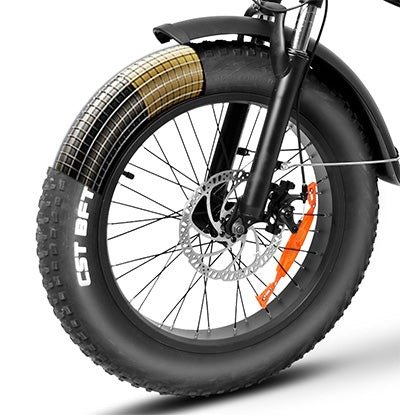

The 20 × 4.0 fat tire setup improves riding stability, comfort and mixed-surface adaptability, but it also increases vehicle weight and bulk compared with a lighter commuter-style e-bike. Final configuration should be matched to the intended rider, price target and market positioning.
Battery transport requirements, charger specifications, warning labels and applicable product or battery documents should also be confirmed before shipment according to the destination country and transport method.
Send Us Your Requirements
Send us your destination market, expected quantity, target motor power, required speed setting, battery preference, folding-frame requirements and any branding or certification needs.
JXNUO can help compare suitable China suppliers and configurations, confirm key specifications and documentation, coordinate samples or orders, follow production, arrange pre-shipment inspection and support shipment coordination.
