Product Overview

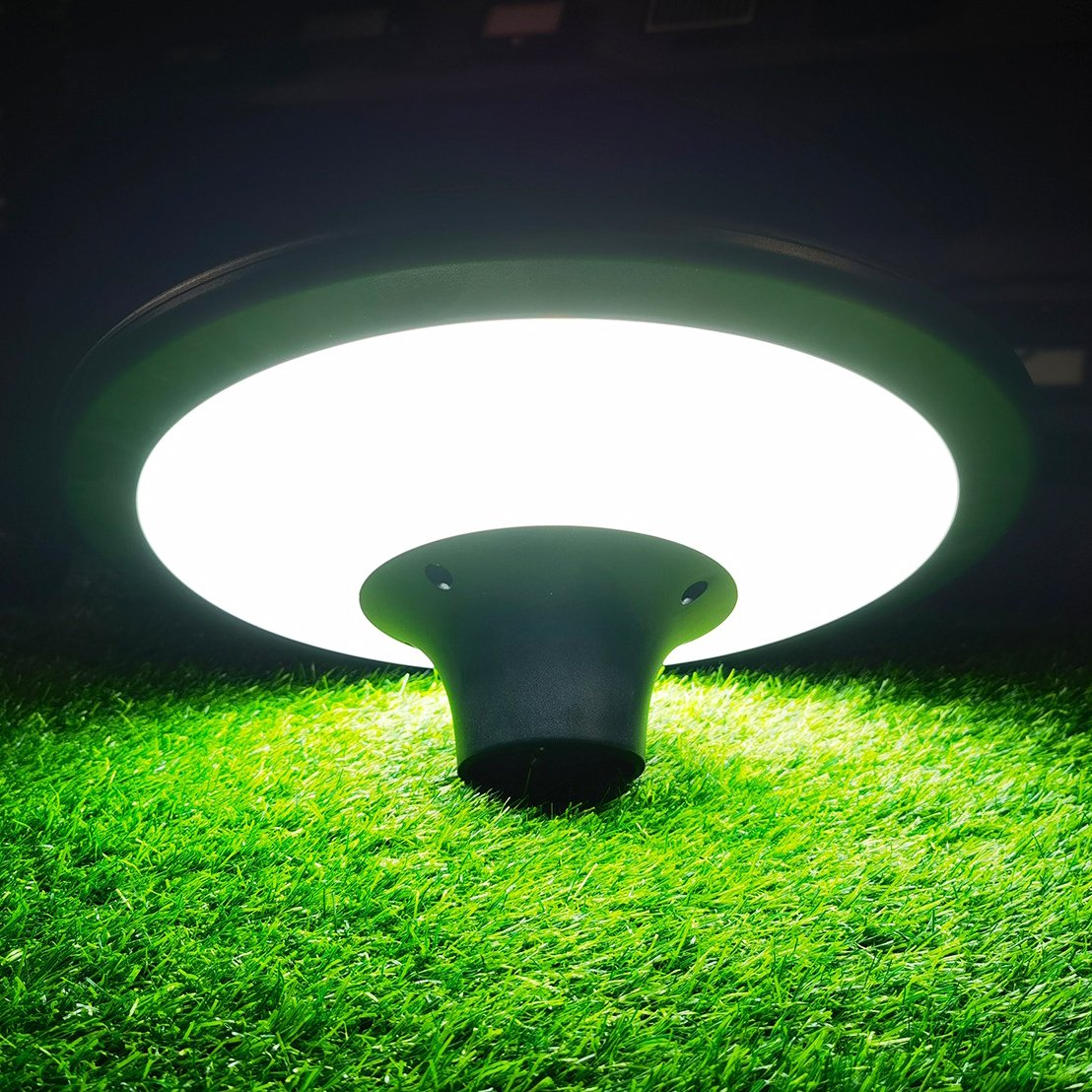

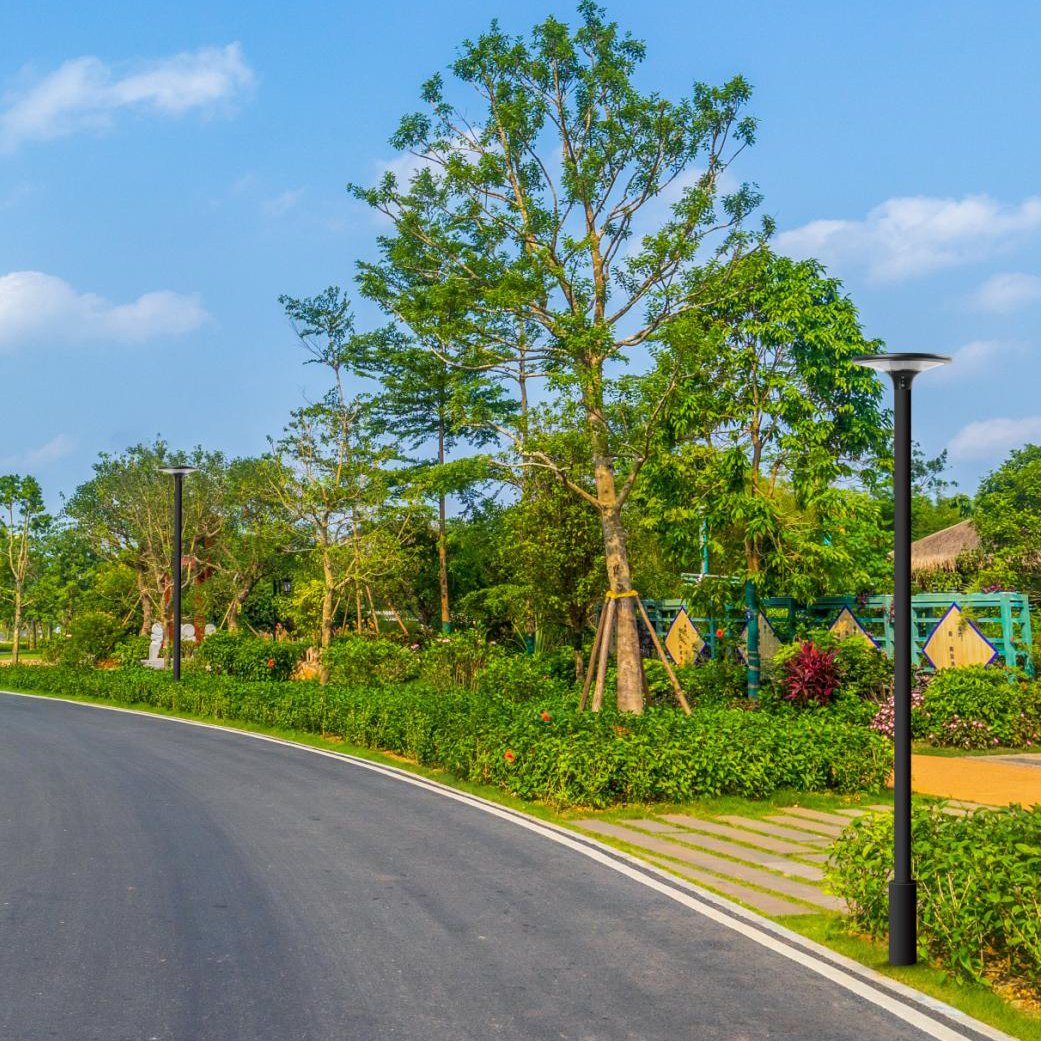

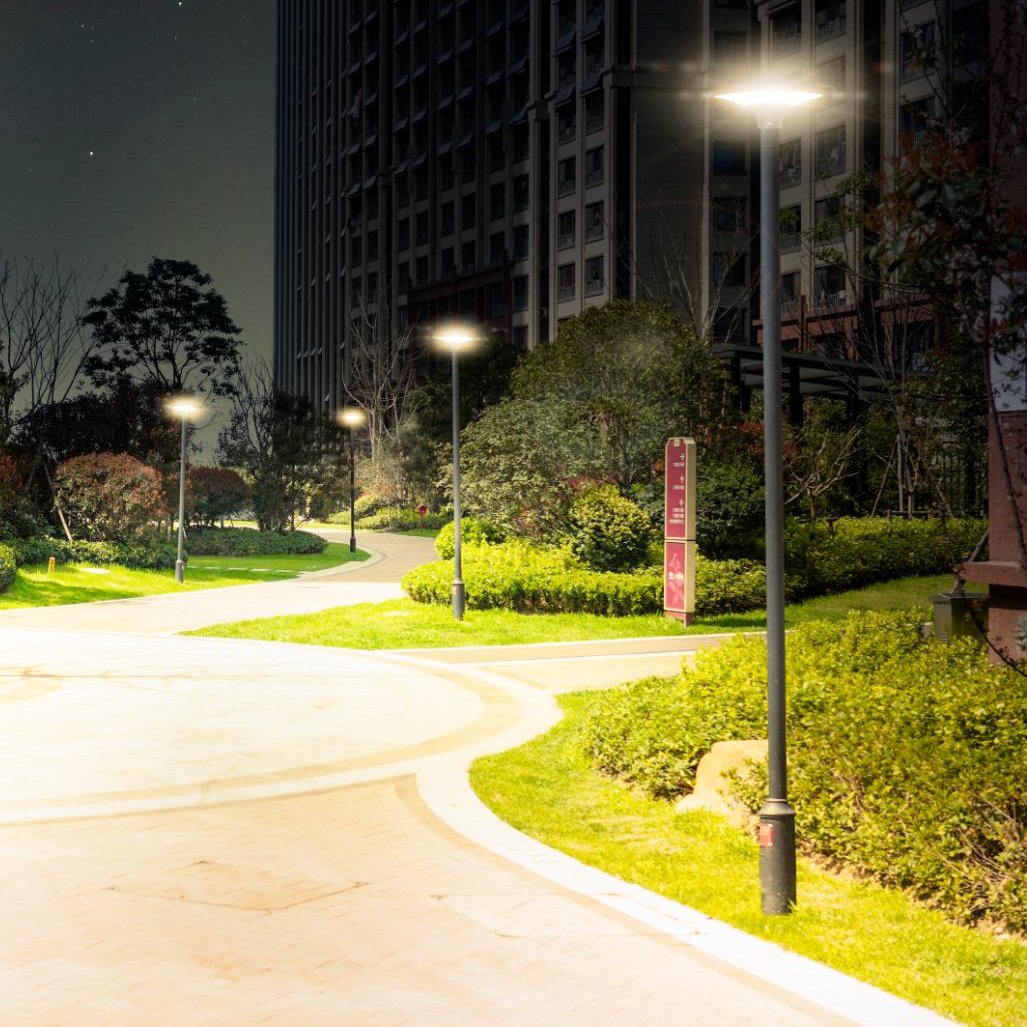

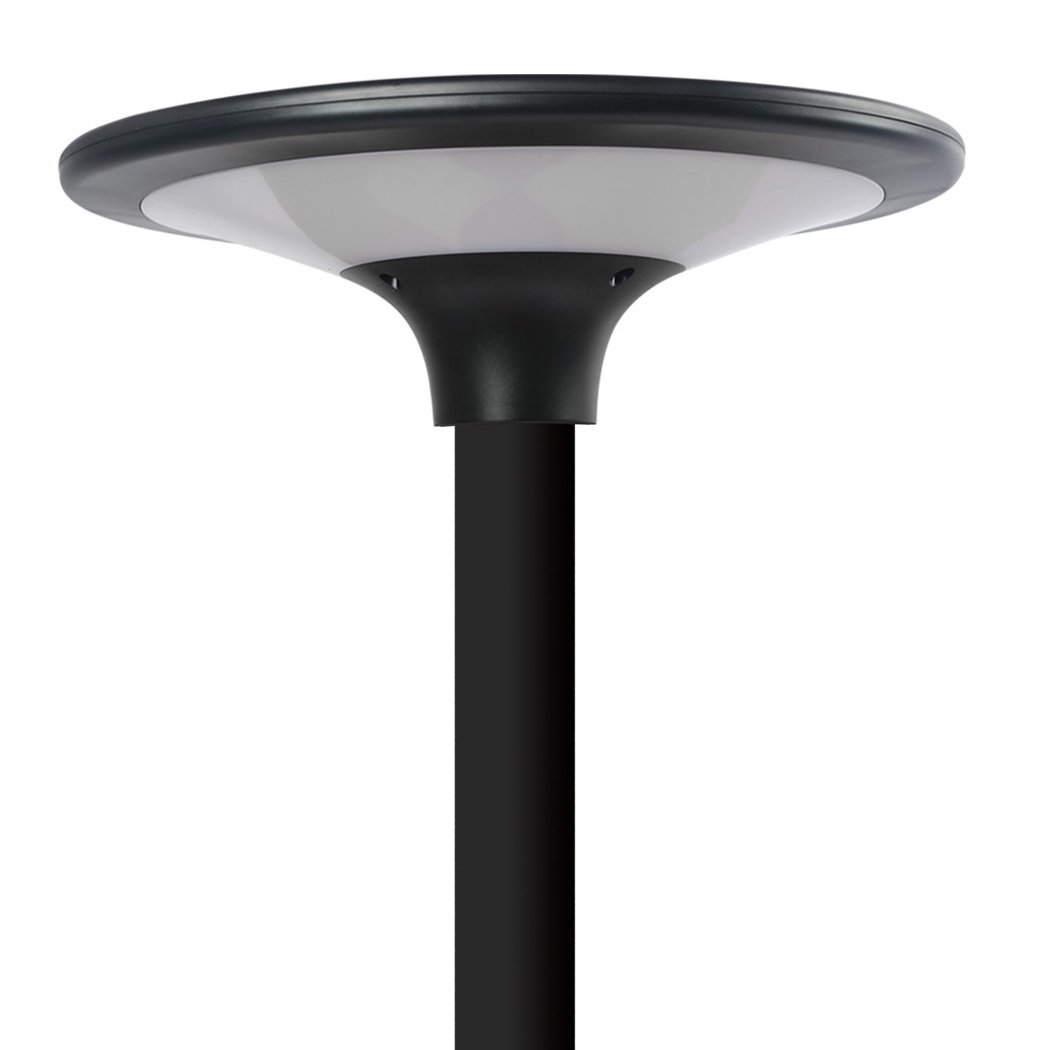

This 20W solar LED area light provides 360° illumination for gardens, villas, patios, walkways, and other small outdoor areas.

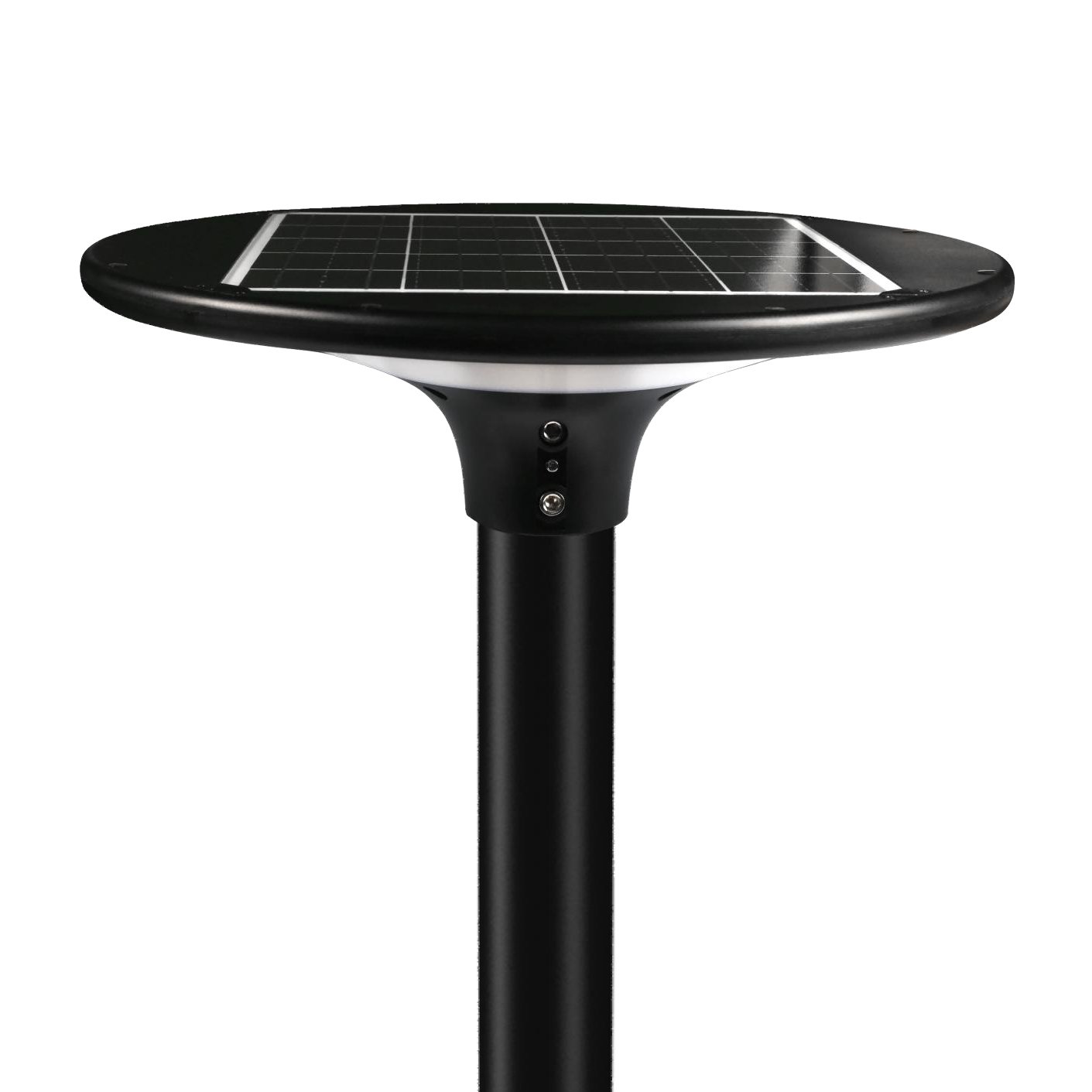

The integrated solar design combines the LED light source, LiFePO4 battery, solar panel, and controller in one fixture. It also supports 2 CCT switching for different outdoor lighting preferences.
See This Product in Production
This video shows this solar LED area light during production and shipment preparation, giving buyers a closer look at the actual product, manufacturing process, and order handling.
What Buyers Usually Need to Confirm
Before quotation or supplier matching, buyers normally need to confirm:
- installation area and required lighting coverage
- installation height and spacing
- preferred color temperature
- required lighting hours
- preferred operating mode
- local solar conditions
- project quantity
- destination market
If the exact lighting arrangement is not yet decided, buyers can also provide the site dimensions or project information for comparison.
Key Product Features
- 20W LED light source

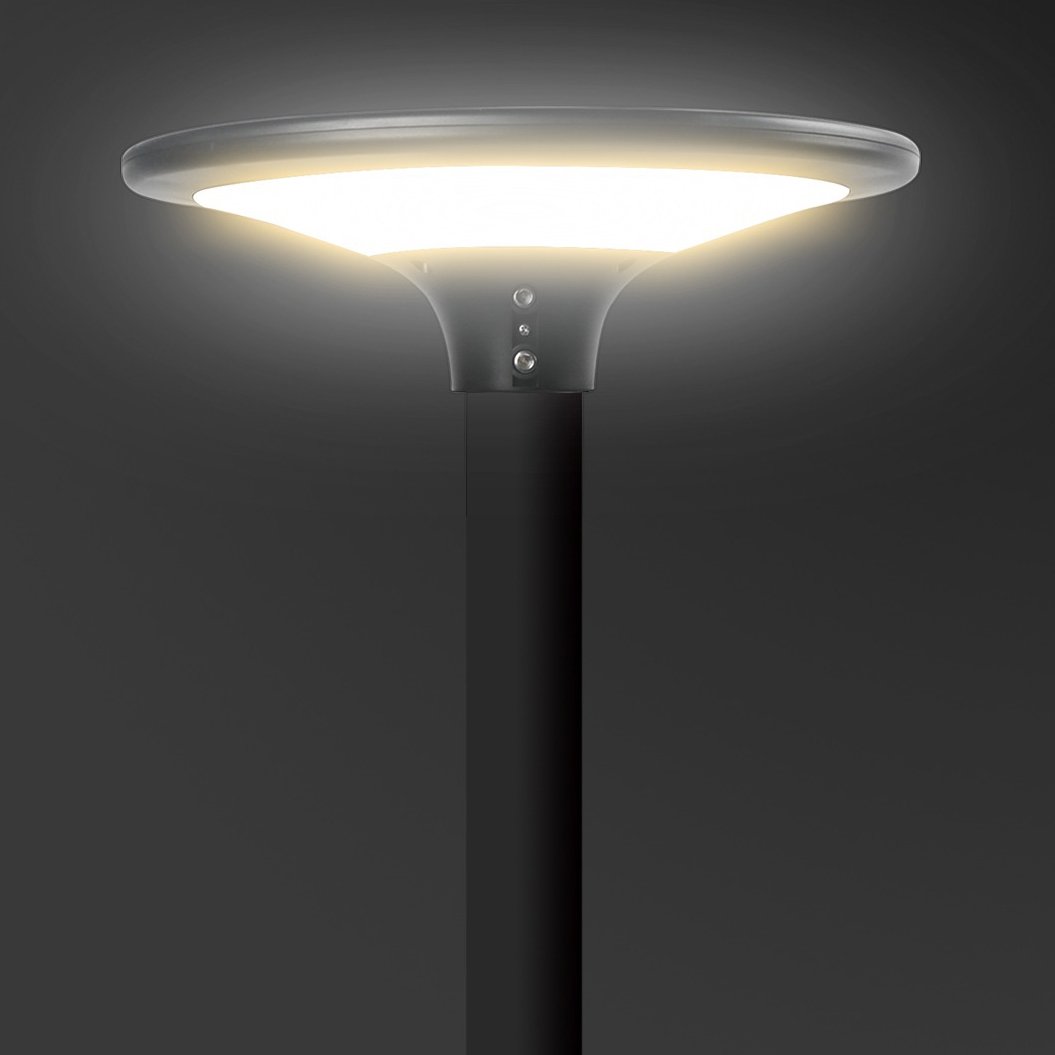

- 360° light distribution
- 2 CCT switchable lighting
- replaceable LiFePO4 battery
- two lighting modes
- solar-powered outdoor operation
Final configuration should be confirmed before ordering.
Typical Specifications
The specifications below are provided as a reference configuration. Final specifications should be confirmed according to project requirements and the selected supplier configuration.
| → Basic Information | |
| Power | 20W |
| LED Light Source | SMD 2835 × 224 pcs |
| Luminous Flux | 2300 lm (≈Traditional 200W) |
| Color Temperature | 2 CCT adjustable |
| Beam Angle | 360° |
| Lighting Area | Up to 80 m² |
| → Power & Control System | |
| Battery | LiFePO4, 6000 mAh (6.4V, 38.4 Wh), replaceable |

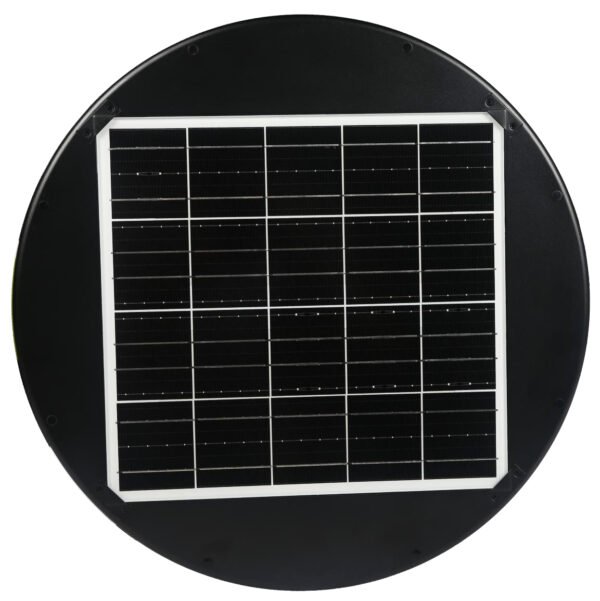

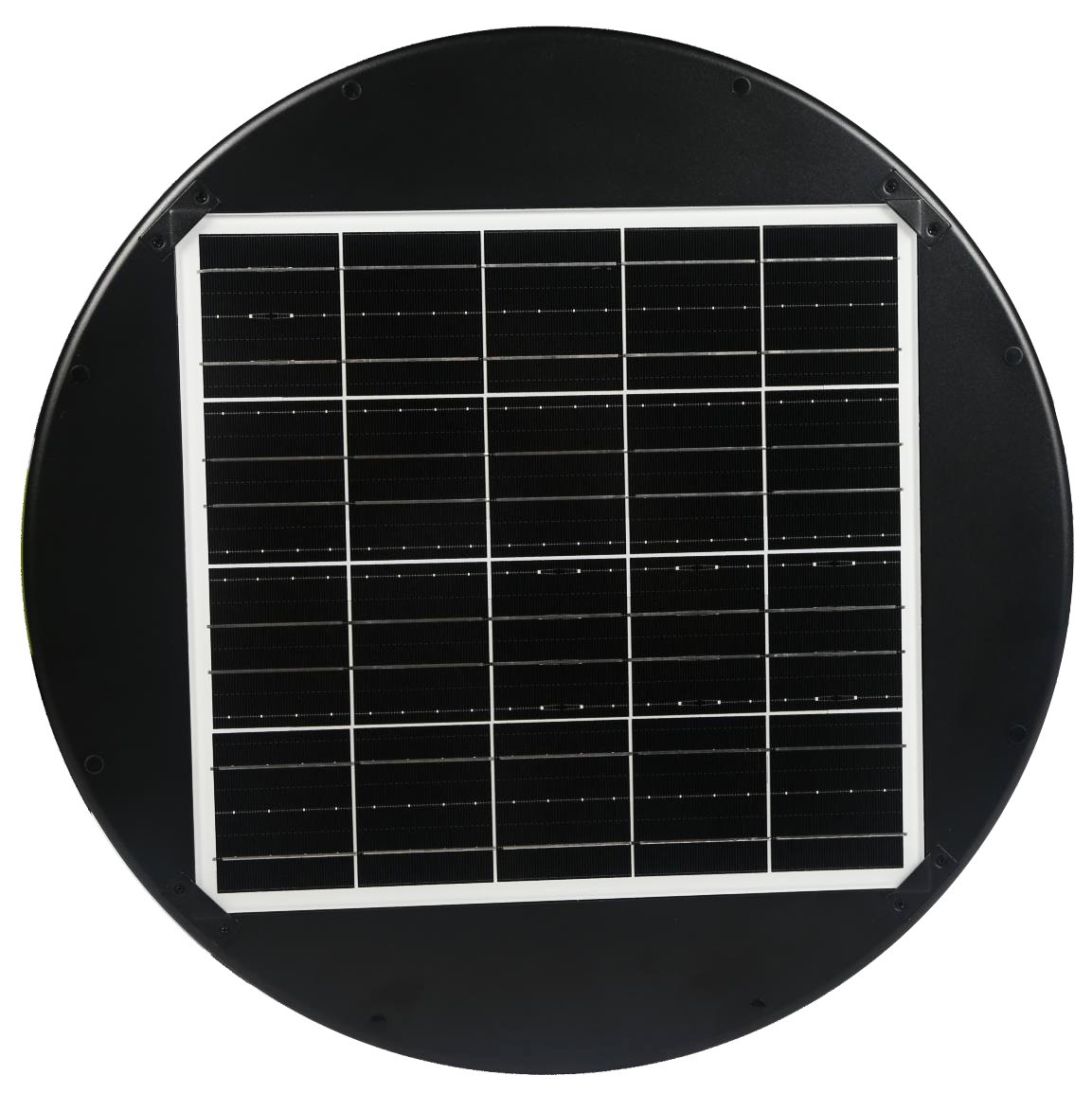

| Solar Panel | Monocrystalline, 12.5W, DC10V |
| Solar Charging Time | 4–6 hours in sufficient sunlight |
| Lighting Time | Up to 32 hours |
| Light Mode | Mode A - 100% brightness |
| Mode B - 50% brightness | |
| → Structure & Installation | |
| Installation Height | 2–4 m |
| Installation Spacing | 10–12 m |
| Dimension | Ø400 × 120 mm |

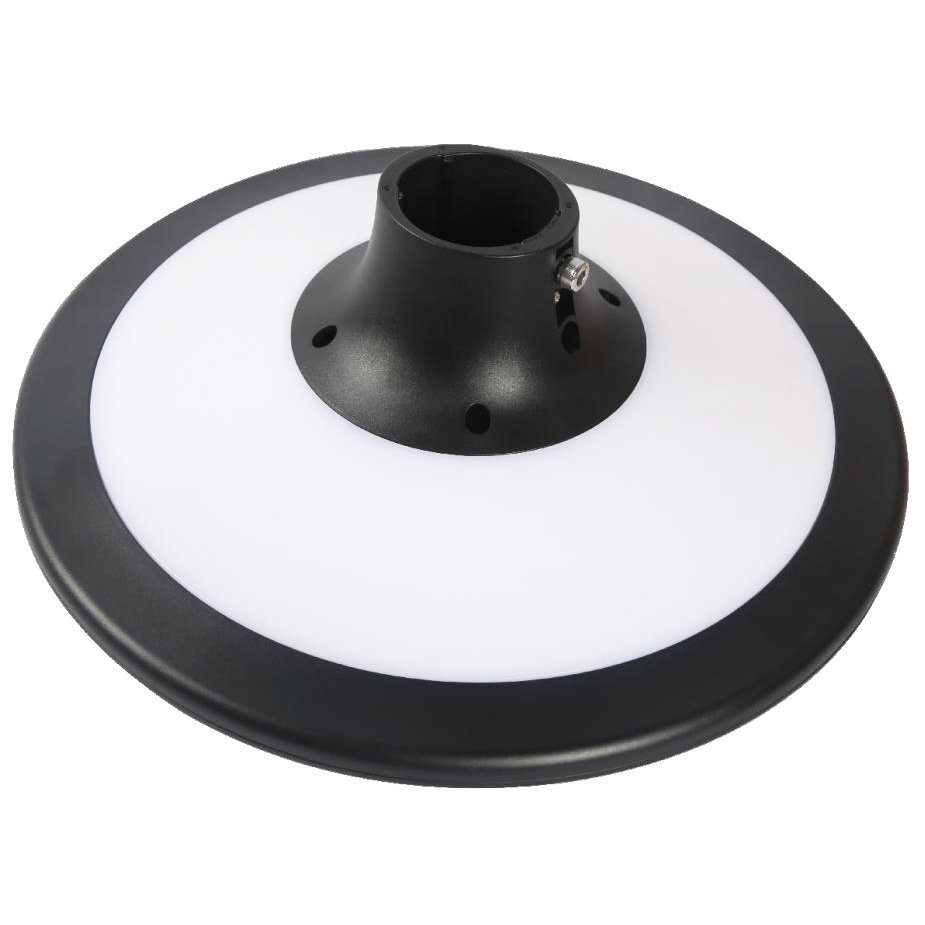

| Housing Material | ABS + PC, UV-resistant and fire-retardant |
| → Environmental Performance | |
| IP Rating | IP65 |
| Warranty | 3 years |
| Certificate | CE, RoHS |
Send Us Your Requirements
Send us your required quantity, installation height, lighting hours, or project information. We can check suitable product configurations and sourcing options based on your requirements.
