Product Overview
This P3.91 outdoor rental LED display is designed for stages, concerts, exhibitions, commercial events, sports activities, and other temporary outdoor installations.

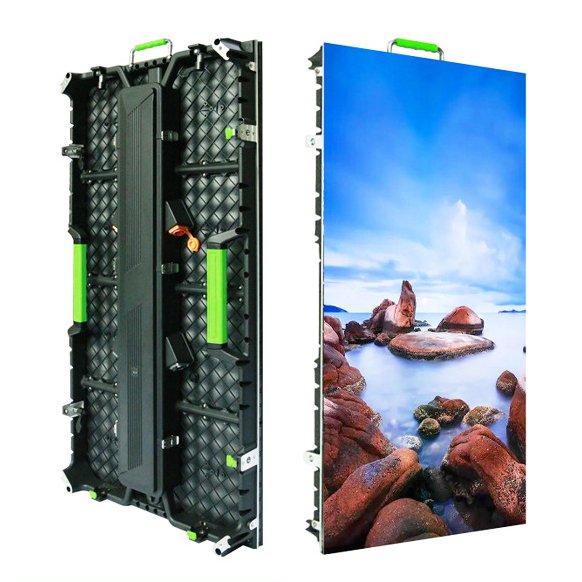

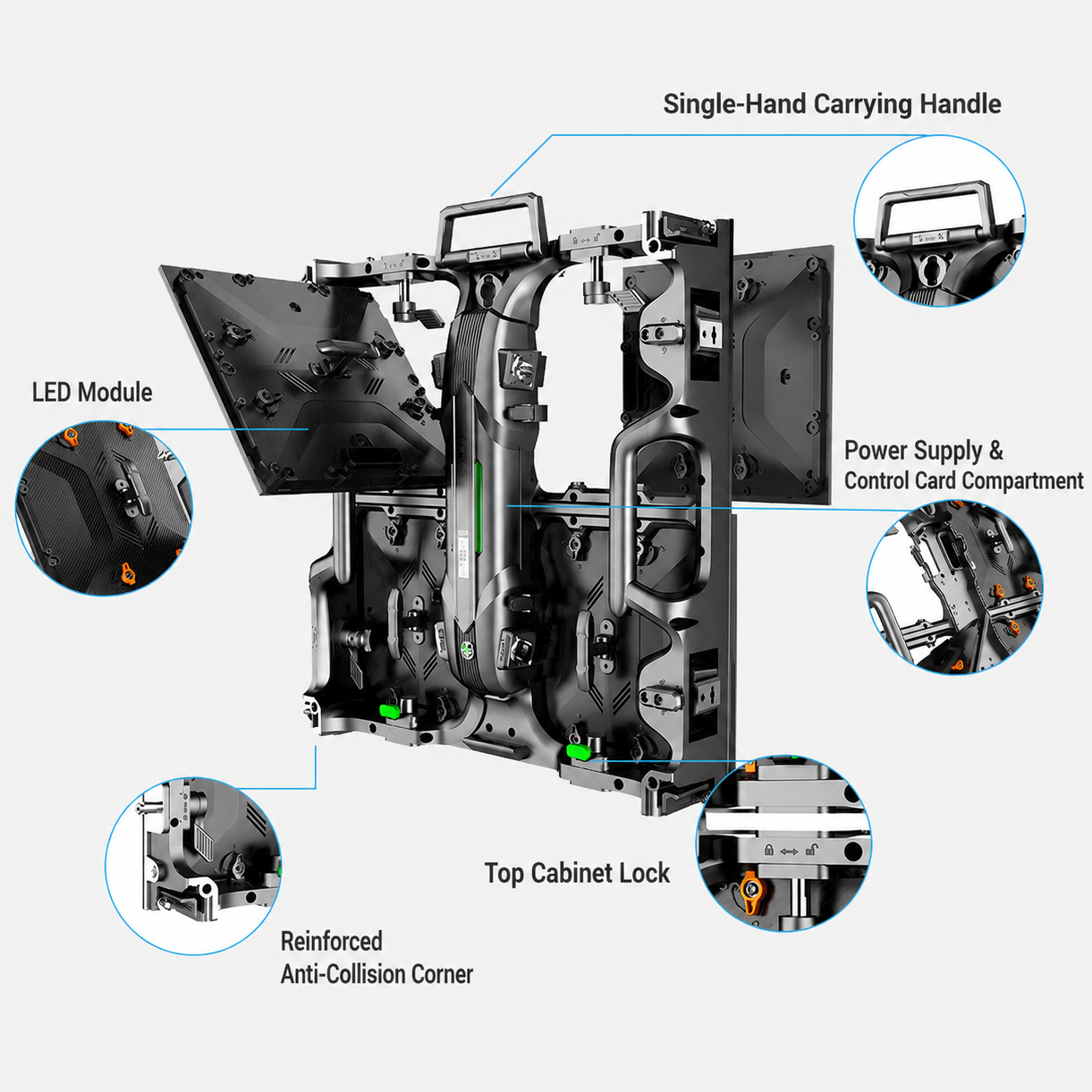

The reference system uses modular 500 × 1000mm die-cast aluminum cabinets with carrying handles and fast-lock connections. This format supports repeated assembly, dismantling, transportation, and storage by rental companies and event-production teams.
A complete LED display project should not be selected only by pixel pitch or individual cabinet price. Screen dimensions, viewing distance, brightness, refresh rate, control system, installation structure, power distribution, spare parts, flight cases, packaging, and technical support should be coordinated as one system.
What Buyers Usually Need to Confirm
Before sourcing a P3.91 outdoor rental LED display, buyers should normally confirm:
- required screen width, height, and aspect ratio
- application and expected viewing distance
- outdoor operating environment and weather exposure
- installation height and supporting method
- required brightness and refresh rate
- camera-filming or live-broadcast requirements
- front-service or rear-service preference
- required input sources and video-processing functions
- preferred LED module and control-system configuration
- destination voltage and power-distribution requirements
- required spare modules, receiving cards, and power supplies
- flight-case quantity and transportation method
- installation guidance or on-site support requirements
- project delivery schedule and expected order quantity
Typical Specifications
The following specifications are provided as a reference for this P3.91 outdoor rental LED display. Final LED components, brightness, refresh rate, cabinet design, control system, power configuration, accessories, and technical parameters should be confirmed according to the approved project configuration.
| Product Type | Outdoor full-colour rental LED display |
| Pixel Pitch | 3.91mm |
| Cabinet Structure | Die-cast aluminium with carrying handles and fast locks |
| Cabinet Size | 500 × 1000mm |
| Cabinet Resolution | 128 × 256 pixels |
| Cabinet Weight | Approximately 15.3kg |
| Module size | 250 × 250mm |
| Pixel Density | 65,536 pixels/m² |
| Brightness | Above 4500cd/m² |
| Refresh Rate | 7680Hz |
| Viewing Angle | 130° horizontal / 130° vertical |
| Recommended Viewing Distance | 4–50m |
| Protection Rating | Front and rear IP65 |
| Maximum / Average Power | Approx. 800W/m² / 400W/m² |
| Standard Input Voltage | 200–240VAC, 47–63Hz |
| Optional Voltage | 110V or wide-input configuration |
| Control System | NovaStar synchronous control |
| Operating Temperature | −20°C to +50°C |
| Reference Project | 4 × 3m screen using 24 cabinets |
| Reference Cabinet Layout | 8 cabinets wide × 3 cabinets high |
| Reference Screen Resolution | Approximately 1024 × 768 pixels |

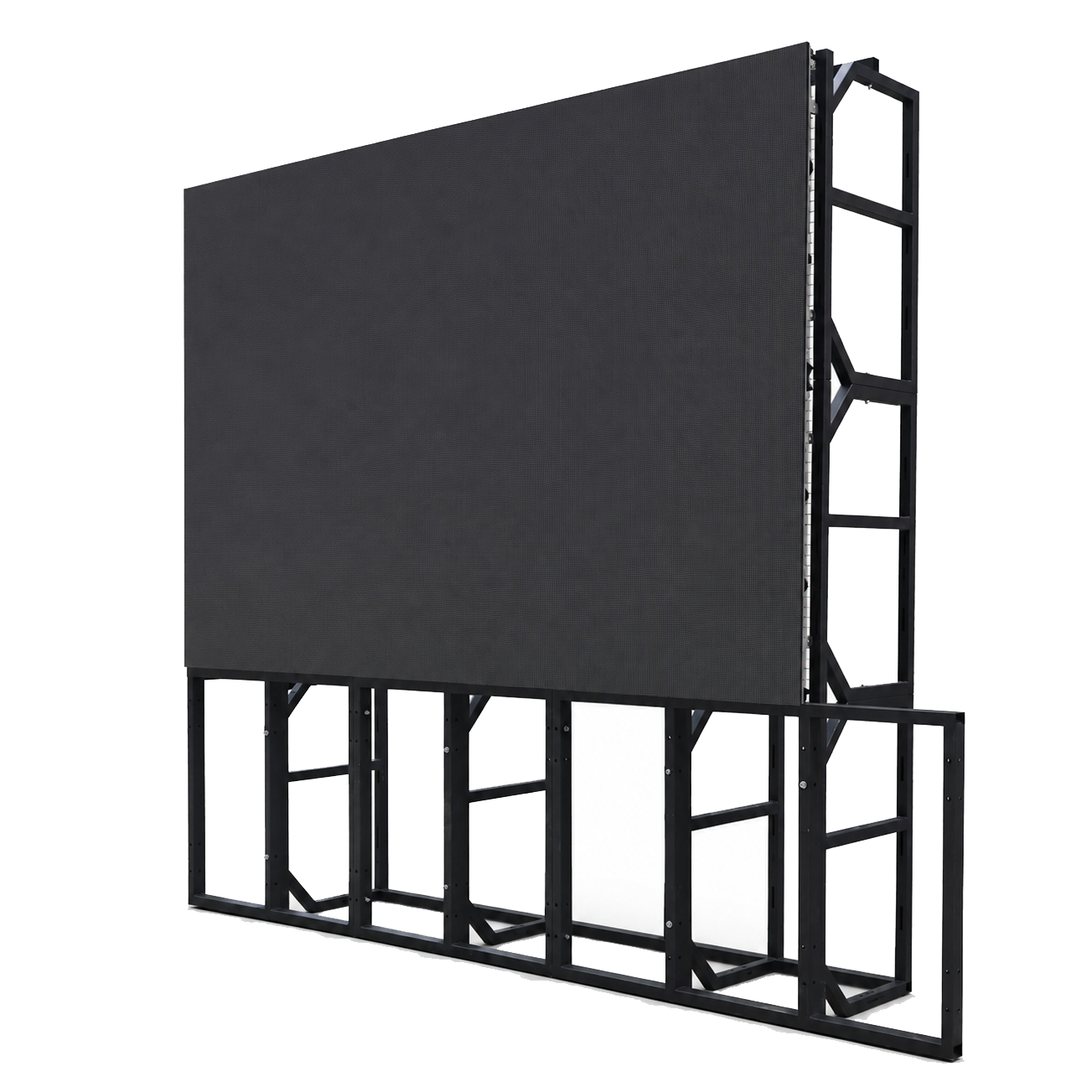

| Installation Options | Rental truss, ground support or project support frame |
| Packing Option | Flight cases for repeated transport |
| Certificates | CE RoHS |
Screen Configuration & Control System
The required screen size can be calculated using the modular cabinet dimensions. For example, eight 500 × 1000mm cabinets can be arranged into a 4m × 1m screen. Other dimensions and aspect ratios can be configured according to the stage layout, content format, and installation space.
The LED control system should be matched to the total screen resolution, input sources, content workflow, and operating requirements. Depending on the project, the system may include sending equipment, receiving cards, a video processor, control software, signal cables, and related accessories.
Projects involving live cameras or broadcast recording may require a higher refresh rate and suitable scanning configuration to reduce visible flicker or scan lines. These requirements should be confirmed before the LED modules and receiving-card configuration are finalized.
Cabinet-level IP protection does not automatically mean the complete installed screen is protected under every weather condition. Module sealing, connectors, cabling, power distribution, ventilation, installation structure, and site exposure should also be evaluated.
Complete Project Components
A rental LED display is normally supplied as a coordinated project package rather than as one individual cabinet. Depending on the screen configuration, the package may include:
- LED rental cabinets
- LED modules
- power supplies
- receiving cards
- sending equipment or video processor
- control software and configuration files
- signal cables and power cables
- power-distribution equipment
- main power cables
- spare modules and electronic components
- flight cases
- installation or supporting structures
- connection and installation references
The final packing list should be matched to the screen dimensions, control configuration, installation method, destination voltage, maintenance requirements, and transportation plan.
Testing & Pre-Shipment Inspection
Rental LED displays are repeatedly assembled, dismantled, transported, and stored. Cabinet alignment, fast locks, handles, connectors, module consistency, and flight-case protection therefore require particular attention.
Before shipment, the completed screen should normally be assembled and tested according to the agreed scope. Inspection may include:
- screen dimensions and cabinet quantity
- cabinet alignment and fast-lock operation
- screen aging and continuous display testing
- dead-pixel and abnormal-module checking
- brightness and color-consistency observation
- receiving-card and control-system configuration
- video input and image-display testing
- power and signal-cable confirmation
- spare-parts and accessory verification
- flight-case and export-packing inspection
Buyers should retain the final receiving-card configuration files, software version, component list, wiring references, and spare-parts details for future installation and maintenance.
Looking for an Indoor Foldable LED Poster Screen?
For indoor retail promotions, exhibitions and movable digital signage, a foldable LED poster screen may be a more suitable alternative to an outdoor rental cabinet system.
Our P2.5 Foldable LED Poster Screen reference features GOB surface protection, a movable folding structure and support for multi-screen splicing. It can be considered for standalone poster displays or larger indoor display arrangements.
Explore the P2.5 Foldable LED Poster Screen.
Send Us Your Requirements
Send us your required screen dimensions, viewing distance, application, installation method, destination country, input sources, filming requirements, preferred control system, spare-parts requirement, and expected delivery schedule.
JXNUO can help calculate the cabinet layout, compare suitable China suppliers, confirm the LED and control-system configuration, coordinate project components and spare parts, follow production, arrange screen testing and pre-shipment inspection, and support packing and shipment coordination.
