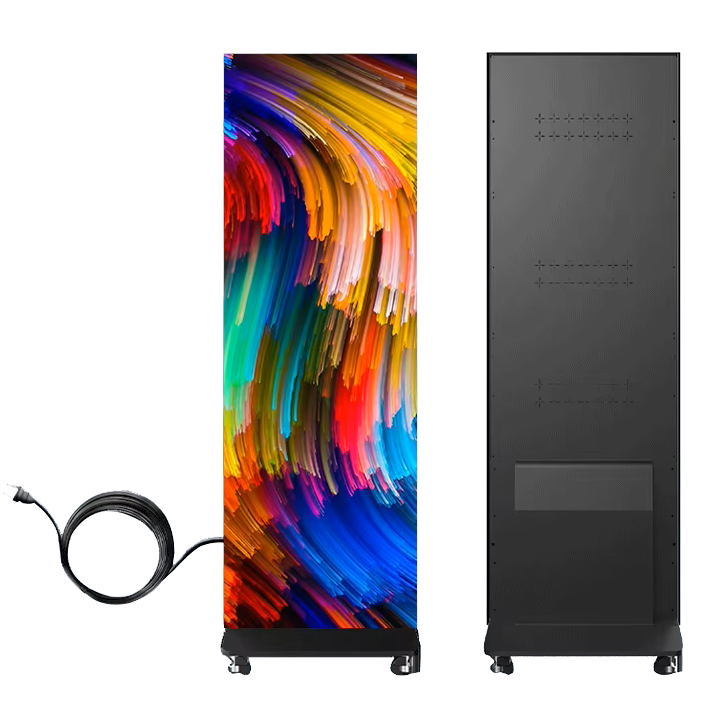

Product Overview
This P2.5 foldable LED poster screen is a sourcing reference for buyers looking for a movable indoor display that can be used individually or combined with other units to form a larger screen.
The reference configuration provides a 640 × 1920mm display area with 2.5mm pixel pitch, 160,000 pixels/m² and a refresh rate of at least 3840Hz. Its folding cabinet structure, movable base and GOB-protected LED surface make it suitable for projects where the screen needs to be transported, positioned and handled repeatedly.
Typical applications include retail promotions, exhibitions, shopping malls, showrooms, reception areas and indoor commercial events. Buyers can select a single poster display or plan a multi-unit installation according to the required screen dimensions and content format.
Final LED components, control system, screen configuration, accessories and packing should be confirmed before ordering.
What Buyers Usually Need to Confirm
Before quotation or supplier matching, buyers normally need to confirm:
– Required number of screens and overall display dimensions
– Standalone use or multi-screen splicing requirements
– Intended application and viewing distance
– Required brightness and refresh rate
– GOB protection requirements
– Content sources and control method
– Network, USB, WiFi or 4G connectivity requirements
– Required video processor and control-system configuration
– Destination voltage and power-distribution requirements
– Wooden case or wheeled flight case preference
– Required spare modules and electronic components
– Destination country, quantity and delivery schedule
For multi-screen projects, buyers should also provide the intended layout, total resolution and whether the screens need to display the same content or one continuous image.
Typical Specifications
| Product Type | Indoor foldable LED poster screen |
| Pixel Pitch | 2.5mm |
| LED Configuration | SMD2121 |
| Pixel Density | 160,000 pixels/m² |
| Module Size | 320 × 160mm |
| Module Resolution | 128 × 64 pixels |
| Display Area | 640 × 1920mm |
| Display Resolution | 256 × 768 pixels |
| Module Quantity | 24 modules per cabinet |
| Brightness | >600 cd/m² |
| Viewing Angle | 160° horizontal / 160° vertical |
| Gray Scale | 16-bit, supplier-stated |
| Color Variety | 16.7 million colors, supplier-stated |
| Brightness Adjustment | 0–100 levels |
| Maximum Power Consumption | 360W/m² |
| Average Power Consumption | 120W/m² |
| Scan Mode | 1/32 scan |
| Refresh Rate | ≥3840Hz |
| Signal Input / Control | Network cable, USB, WiFi and 4G options |
| Input Voltage | AC100–240V, 50/60Hz |
| Operating Temperature | −20°C to +50°C |
| Operating Humidity | 10–95% RH |
| Installation | Movable base installation |
| Packing Options | Wooden export case or wheeled flight case |
Specifications are provided as supplier reference information. Cabinet dimensions, weight, LED components, control system, connectivity and packing may vary according to the approved configuration. Final technical drawings, packing details and compliance documents should be confirmed before purchase.
GOB Protection & Foldable Structure
The requested configuration uses GOB (Glue on Board) protection, which applies a protective layer over the LED module surface. This helps reduce the risk of damage to exposed LED components from accidental contact and minor impacts during handling, transportation and installation.
GOB protection is particularly relevant for movable poster displays that may be repositioned or transported between venues. However, it does not make the screen impact-proof or suitable for outdoor use. The final protection process and maintenance requirements should be confirmed with the supplier.
Foldable and Movable Cabinet Design

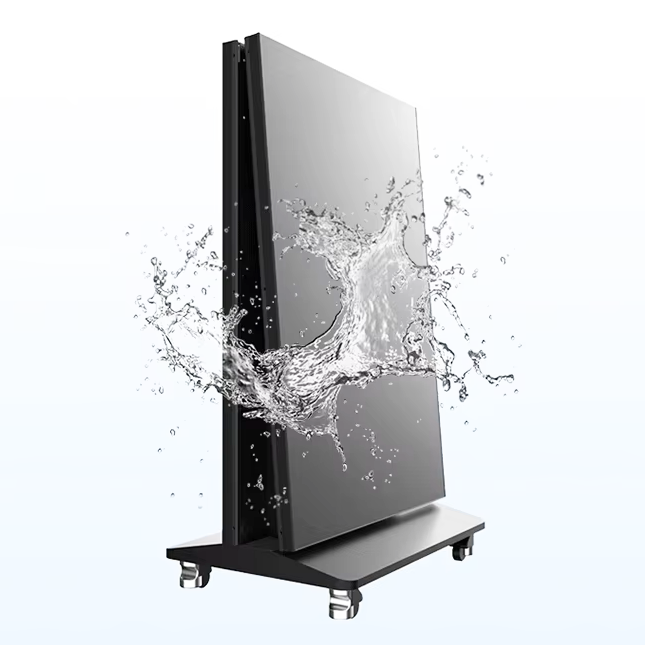

The cabinet uses a folding structure with magnetic module mounting, quick-install side locks and a movable base. The reference drawing also shows an integrated control box, swivel wheels and braking wheels.
These features are intended to make transportation, positioning and storage more practical for commercial display projects. Buyers should confirm the folding mechanism, locking arrangement, wheel design and final packed dimensions before ordering.
Product Video
Watch the product video to see the foldable LED poster screen and its display arrangement. Final folding, control and splicing functions should be confirmed according to the selected configuration.
Standalone Display & Multi-Screen Splicing

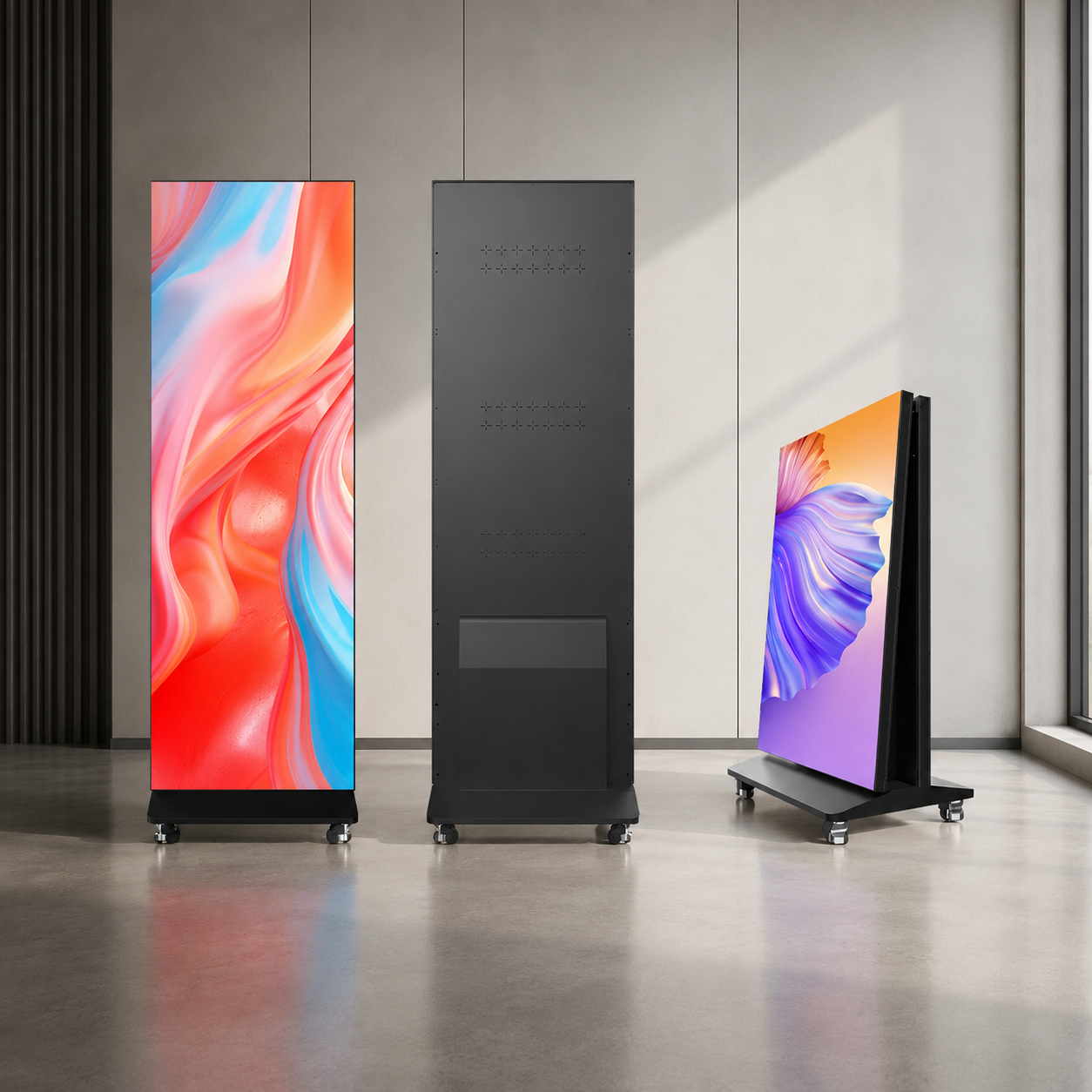

A single unit can be used as a vertical LED poster for promotional content, product information, digital signage and other indoor display applications.

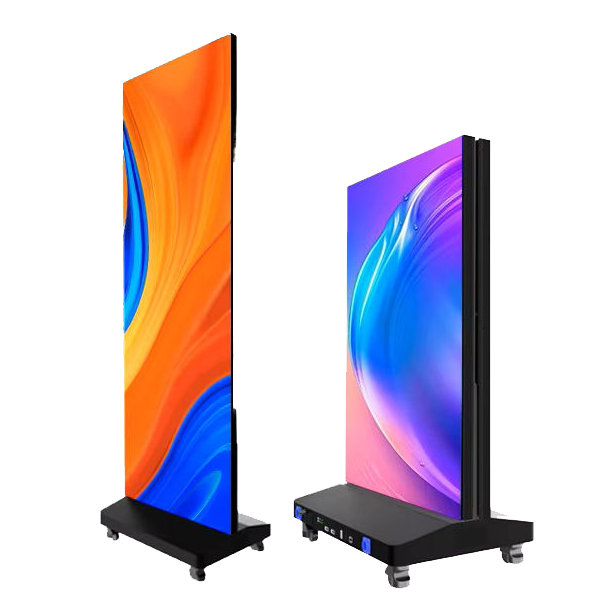

For projects requiring a larger display, multiple units can be combined through the supported splicing configuration. The final system should be planned according to the required screen dimensions, total resolution, content format and control-system capacity.
Depending on the project, the complete system may require sending equipment, receiving cards, a video processor, control software, signal cables and power-distribution accessories.
Buyers should confirm the maximum supported number of units, connection method, content synchronization and whether the system is intended to show one continuous image or separate content on each screen. These details should be verified before the control system is finalized.
Packing & Transportation
Packing can be arranged according to the project’s transportation and handling requirements.

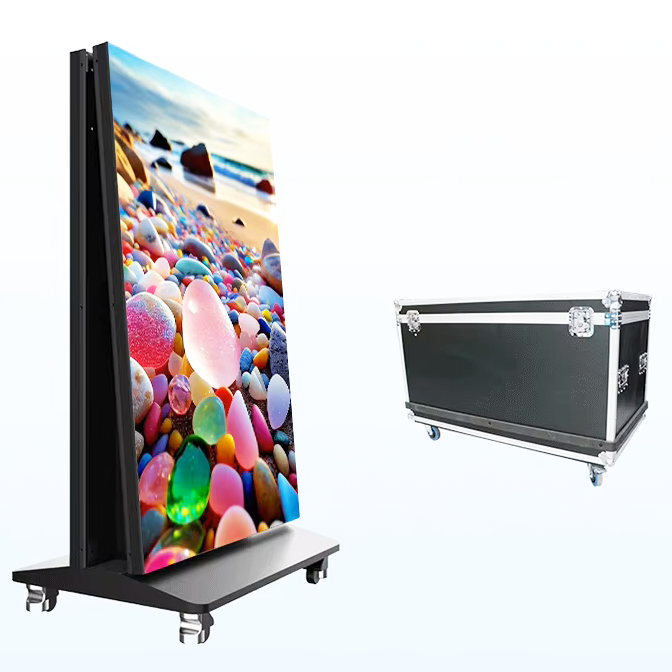

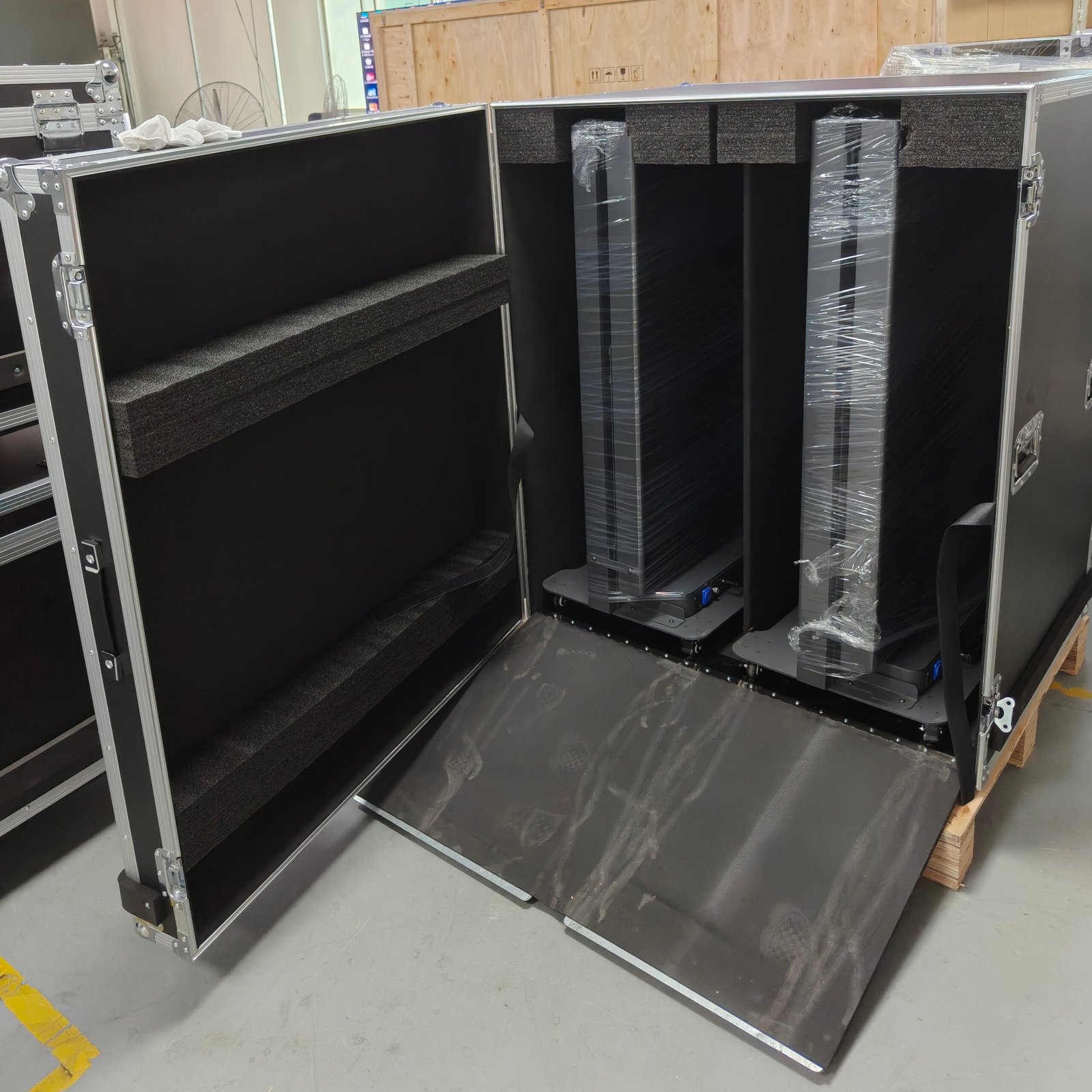

Wooden export cases may be considered for project shipments where the screens will be delivered to a fixed installation location. Wheeled flight cases are another option for buyers who expect to move the screens between exhibitions, events or other venues.
The final packing method should take account of the folding structure, screen-surface protection, cabinet weight, accessories and handling requirements.
Before shipment, buyers should confirm the packed dimensions, gross weight, number of units per case, spare-parts arrangement and any applicable destination-country packaging requirements.
Complete Project Components
A complete LED poster display project may include more than the screen cabinet itself. Depending on the approved configuration, the package may include:
– Foldable LED poster cabinets
– LED modules and power supplies
– Receiving cards and control equipment
– Sending equipment or video processor, where required
– Control software and configuration files
– Signal and power cables
– WiFi or 4G accessories, where applicable
– Spare modules and electronic components
– Wooden cases or wheeled flight cases
– Operating and installation references
The final packing list should be matched to the screen quantity, control method, splicing requirements, destination voltage and maintenance plan.
Testing & Pre-Shipment Inspection
For foldable LED poster screens, inspection should consider both display performance and the mechanical structure used for repeated handling.
Depending on the project scope, JXNUO can help coordinate:
– Cabinet quantity, dimensions and configuration checks
– Folding mechanism and locking-function checks
– Wheel and brake-function checks
– GOB surface and module-condition inspection
– Screen aging and continuous display testing
– Dead-pixel and abnormal-module checking
– Brightness and color-consistency observation
– Receiving-card and control-system configuration checks
– Signal-input and content-playback testing
– Multi-screen splicing tests, where applicable
– Spare-parts and accessory verification
– Wooden case or flight case packing inspection
For multi-unit projects, buyers should retain the final control-system configuration files, software information, wiring references and spare-parts details for future installation and maintenance.
Any required performance testing, certification or third-party inspection should be agreed upon before production or shipment.
Related LED Display Sourcing
Looking for an outdoor screen for stages, concerts or temporary event installations?
Our P3.91 Outdoor Rental LED Display reference uses modular 500 × 1000mm fast-lock cabinets for outdoor rental applications. It is a different solution from this indoor foldable poster screen and may be more suitable for projects requiring outdoor brightness, weather protection and larger modular screen layouts.
Explore the P3.91 Outdoor Rental LED Display.
Send Us Your Requirements
Looking for a P2.5 foldable LED poster screen or a similar indoor display solution?
Send us your required screen quantity, display dimensions, intended application, destination country, preferred control method, splicing requirements and packing preference.
If you need a larger combined screen, please include the intended layout and content format. We can help review suitable sourcing options, coordinate the LED and control-system configuration, confirm project components, and arrange testing, inspection and shipment preparation according to your requirements.
