Product Overview

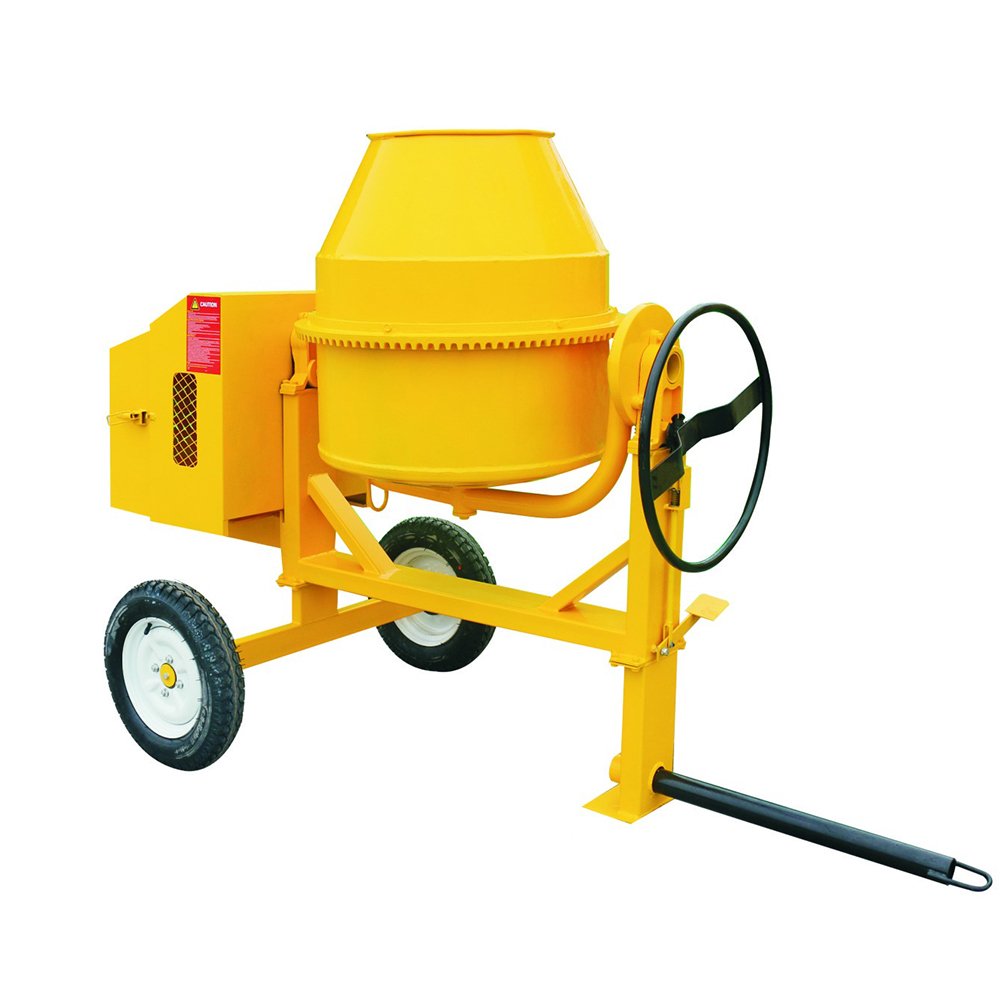

This portable mini concrete mixer is commonly selected for small construction sites, municipal roadwork, farm-building projects, maintenance work, and equipment rental fleets. Its compact structure and wheeled frame make it easier to move between nearby work areas than larger stationary batching equipment.
The reference configuration uses a rotating drum for batch mixing and may be supplied with diesel, gasoline, or electric power according to local fuel availability, operating conditions, and maintenance preferences. Final configuration should be confirmed for each project rather than selected by drum capacity alone.
What Buyers Usually Need to Confirm
Before sourcing a mini concrete mixer, buyers should normally confirm:
- required drum capacity and actual mixing capacity per batch
- main application, such as building work, road repair, farm projects, or equipment rental
- preferred diesel, gasoline, or electric power option
- local fuel availability, voltage, frequency, and maintenance capability
- required production output and daily operating conditions
- drum thickness, frame construction, and tyre specification
- local road or site-mobility requirements
- required testing, documentation, and destination-market requirements
- CBU or CKD shipment preference
- spare-parts and after-sales support requirements
Typical Specifications
The following specifications are provided as a reference for this mini concrete mixer. Final capacity, power configuration, dimensions, packing method, and loading quantity should be confirmed according to the selected supplier and project requirements.
| Parameter | Specification |
|---|---|
| Drum Capacity | 350L |
| Mixing Capacity | 280L |
| Productivity | 4~5 m³/h |
| Drum Speed | 25~30 rpm |
| Upper Drum Thickness | 3mm |
| Bottom Drum Thickness | 3mm |
| Drum Size | Φ800×900 mm |
| Tyre | 2 × 4.00-12 |
| Engine Options | Air-cooled diesel 6HP / 10HP |
| Water-cooled diesel 8HP | |
| Gasoline Honda 9HP | |
| Electric motor 3kW | |
| Weight | 260kg |
| Overall Size | 1960×1100×1700 mm |
| Packing Size | 1860×860×1100 mm |
| Loading (20GP / 40HQ) | 14 / 28 sets (CBU) |
| 24 / 60 sets (CKD) |
Operation and Application Notes
The mixer uses a rotating drum to combine cement, sand, aggregate, and water in batches. During operation, the drum rotates at a controlled speed while the operator loads the materials and monitors the mixing cycle. After the required consistency is reached, the drum is tilted to discharge the mixture.
This type of mixer is intended for intermittent batch production rather than the continuous output of a large concrete batching plant. Actual productivity depends on batch size, material preparation, loading speed, mixing time, discharge time, and site organization.
Typical applications include:
- small residential and commercial construction projects
- municipal road repair and maintenance work
- contractor and subcontractor site use
- farm buildings and local workshop projects
- equipment rental fleets requiring portable mixing equipment
Packaging, Loading, and Supply Considerations

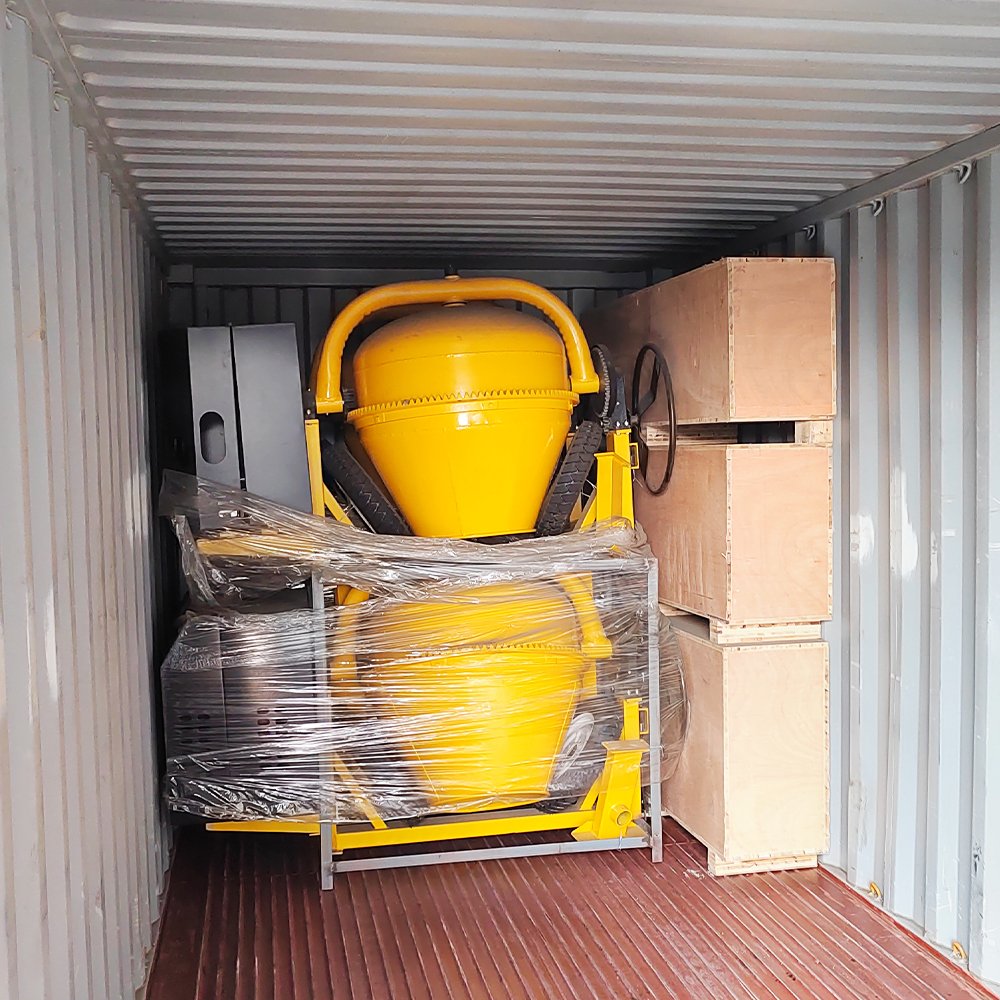

Buyers should confirm whether the equipment will be shipped completely built up or completely knocked down:
- CBU (Completely Built Up): supplied assembled for simpler preparation after arrival, but requiring more container space
- CKD (Completely Knocked Down): supplied in separate components for more efficient container loading, with local assembly required
Power option, packing dimensions, container-loading quantity, assembly requirements, spare parts, and local service capability should be reviewed together before order confirmation.
Send Us Your Requirements
Send us your required mixing capacity, preferred power option, intended application, destination market, expected quantity, and CBU or CKD shipment preference.
JXNUO can help compare suitable China suppliers, confirm machine specifications and power configurations, coordinate inspection and test-running, review packing and loading arrangements, and support shipment coordination.
