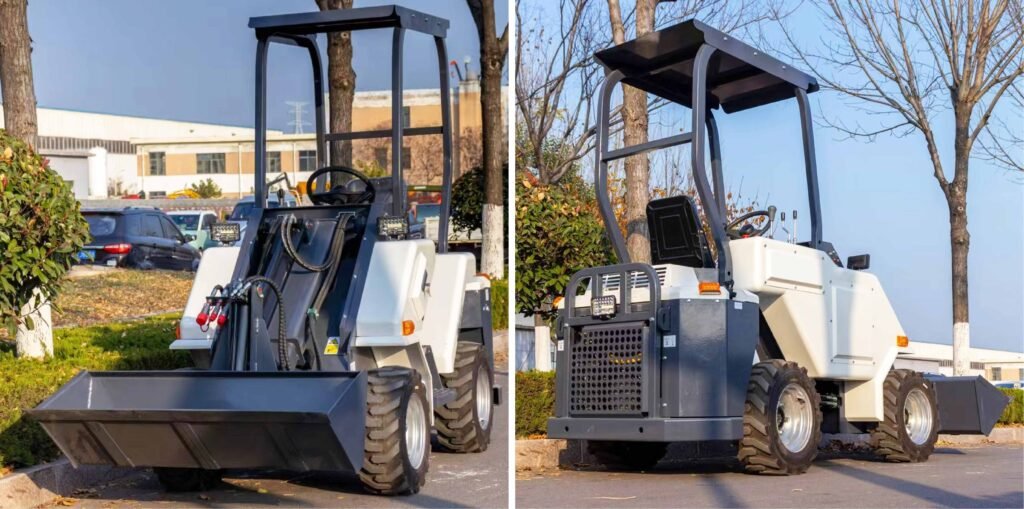

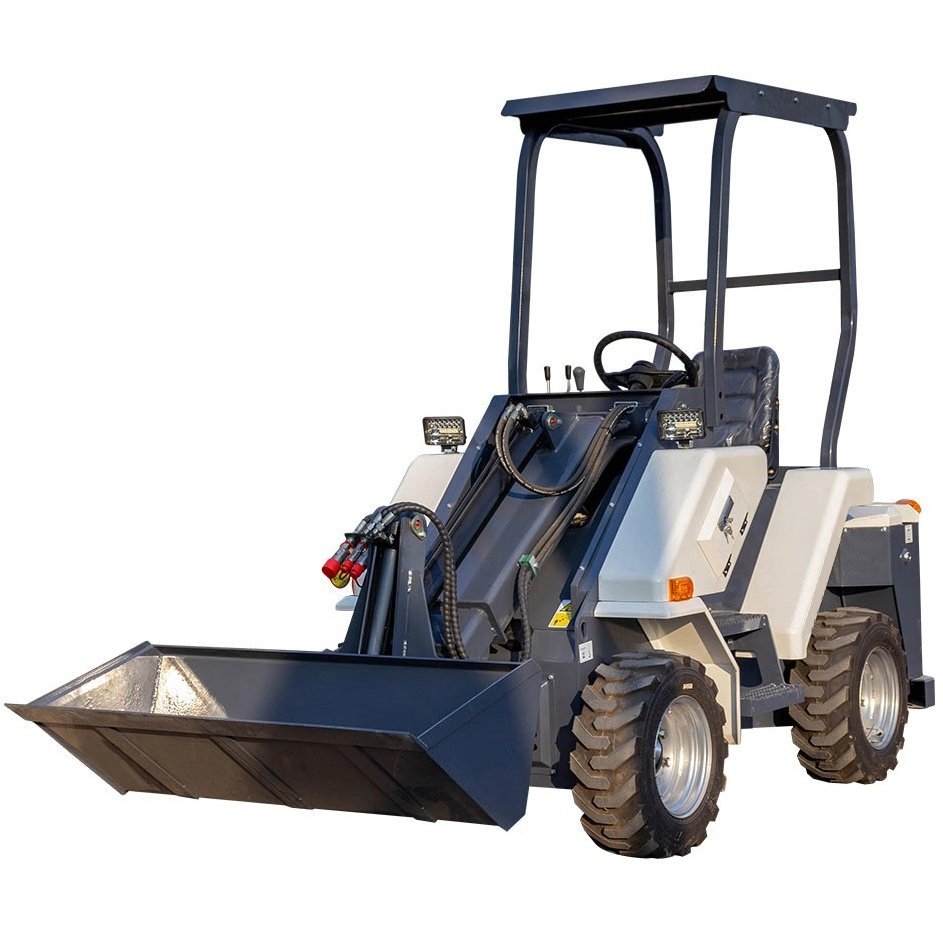

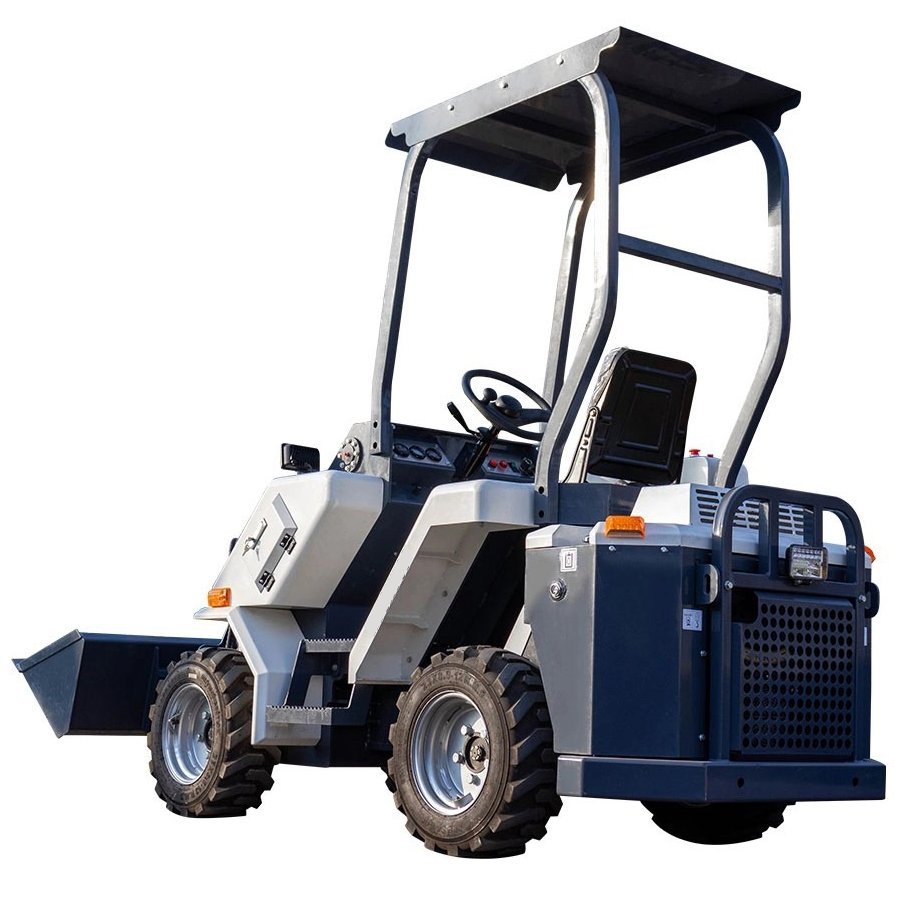

Product Overview
This mini articulated loader is designed for loading, lifting, carrying, and short-distance material handling in compact or restricted working areas. Its articulated steering and compact dimensions make it suitable for farms, landscaping projects, municipal maintenance, workshops, and construction-support work.
The telescopic arm provides additional reach and lifting height compared with a fixed-boom compact loader. Final suitability should be evaluated according to the required lifting capacity, working height, attachment, ground conditions, engine configuration, and operating environment.
What Buyers Usually Need to Confirm
Before sourcing a mini articulated loader, buyers should normally confirm:
- intended application and typical materials to be handled
- required lifting capacity, lifting height, and forward reach
- target bucket capacity and required attachments
- whether a telescopic boom is required for the intended work
- working-area width, turning space, and access restrictions
- ground conditions and required tyre configuration
- preferred engine, fuel type, and applicable emission requirements
- hydraulic flow and attachment-interface requirements
- operator protection and other required safety configurations
- packing method, shipping quantity, and destination market
- spare-parts and after-sales support requirements
Typical Specifications
The following specifications are provided as a reference for this mini articulated loader. Final engine, hydraulic system, lifting capacity, dimensions, tyre configuration, attachments, and documentation should be confirmed according to the selected supplier and project requirements.
| Main Dimensions | |
| Max. Lifting Height | 3350 mm |
| Maximum Pin Height | 2680 mm |
| Main Boom Dumping Height (45°) | 2000 mm |
| Main Boom Dumping Reach | 1240 mm |
| Main Boom Max. Loading Capacity | 800 kg |
| Small Boom Lifting Height | 2680 mm |
| Small Boom Dumping Height (45°) | 2300 mm |
| Small Boom Max. Loading Capacity | 600 kg |
| Overall Length (Bucket on Ground Position) | 3380 mm |
| Overall Width | 1240 mm |
| Overall Height | 2250 mm |
| Wheelbase | 1360 mm |
| Minimum Ground Clearance | 190 mm |
| Turning Radius | 2600 mm |
| Engine | |
| Engine Options | Rato 739 / Briggs & Stratton 3864 / Honda GX690 / Kubota D1105 |
| Engine Type | Gasoline engine, air-cooled / Diesel engine, water-cooled |
| Rated Power | 23 HP / 18.2 kW |
| Rated Speed | 3600 / 3000 rpm |
| Max. Torque | 71.5 |
| Speed at Max. Torque | 2200 rpm |
| Number of Cylinders | 2 / 3 |
| Displacement | 739 / 627 / 690 / 1123 ml |
| Rated Fuel Consumption | 240 g/kW·h |
| Hydraulic System | |
| System Pressure | 25 MPa |
| Pump Pressure | 31 MPa |
| Drive Mode | 4 wheel drive |
| Steering Type | Fully hydraulic steering |
| Tyre Type | |
| Tyre Model | 23×8.5-12 |
| Brake Drum Diameter | 300 |
| Performance Parameters | |
| Carrying Capacity | 500 kg |
| Bucket Volume | 0.3 m³ |
| Max. Speed | 12 km/h |
| Net Weight | 1446 / 1552 kg |
| Working Weight | 2000 kg |
| Gradeability | 30 % |
| Warranty & Compliance | |
| Warranty | 1 year |
| Compliance | Please confirm certification or compliance requirements based on the destination market and final configuration. |
Telescopic Arm and Attachment Considerations
The articulated structure allows the front and rear sections of the machine to turn relative to each other, improving maneuverability in narrow working areas. The telescopic arm provides additional reach and lifting height when the application requires more placement flexibility than a standard fixed-boom loader.
Attachment compatibility is an important part of machine selection. Depending on the intended work and the supplier’s available configuration, the loader may be evaluated with attachments such as:
- general-purpose bucket
- fork attachment
- grapple
- hook or other approved lifting attachment
Available attachments should not be assumed from appearance alone. Before ordering, buyers should confirm the attachment interface, hydraulic requirements, rated capacity, operating limits, and whether each attachment is included or quoted separately.
Application and Purchasing Considerations
This type of loader is commonly considered for:
- farm and livestock-area material handling
- landscaping and gardening projects
- municipal maintenance work
- construction-site support
- workshops, warehouses, and restricted working areas
- equipment rental fleets requiring compact machinery
Final machine selection should be based on the actual job rather than lifting height or bucket capacity alone. Buyers should review the complete engine, hydraulic, tyre, attachment, safety, packing, and documentation configuration before confirming an order.
Send Us Your Requirements
Send us your intended application, material type, required lifting capacity and height, preferred attachments, working conditions, destination market, and expected quantity.
JXNUO can help compare suitable China suppliers, confirm machine and attachment configurations, coordinate technical clarification, follow production, arrange inspection and test-running, review packing and loading arrangements, and support shipment coordination.
